Radiance Hazer

Ultratec´s Radiance Haze Machine, the bestselling Water Based Hazer, sets the standards against which all other hazers are measured.
Low Fluid Consumption: 1 Gallon lasts 80 hours
Easy and Quick Serviceability: With Ultratec´s innovative 4-Port Rapid Vaporizer, the Radiance Haze Machine is cleaned and back in service in less than 15 minutes. - Radiance Hazer Service Maintenance Procedure Video
Standard Features: The built-In DMX, controls both the Haze Output, Internal Fan, and Optional External Fan, giving you excellent Haze Control and Even Dispersion.
The Radiance also operates in stand-alone Mode by using the DMX selector switches to control Haze Output, Internal Fan, and Optional External Fan

Optional Features: Optional Remote Control also available, Duration, Interval and Variable Haze Output

Models

Product List
CLF-2462 Radiance Hazer 220V €1,258.75

Accessories Gallery

Accessories

Product List

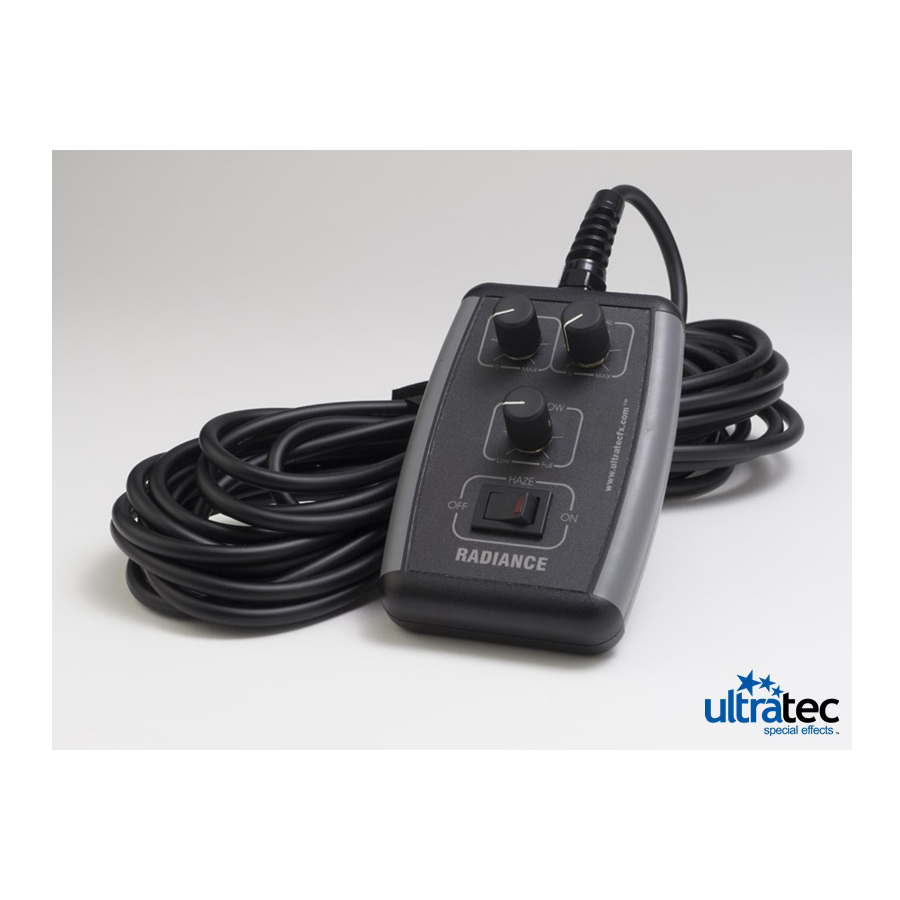

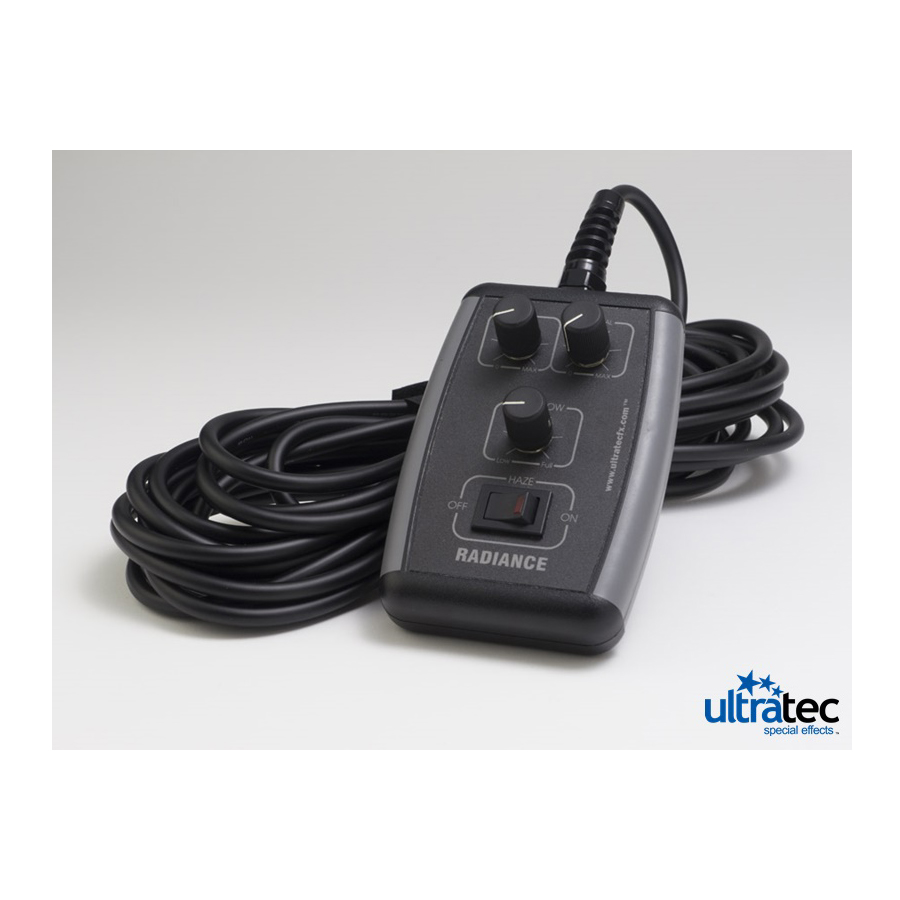

Radiance Hazer Remote CLF-2465 Radiance Hazer Remote €149.72

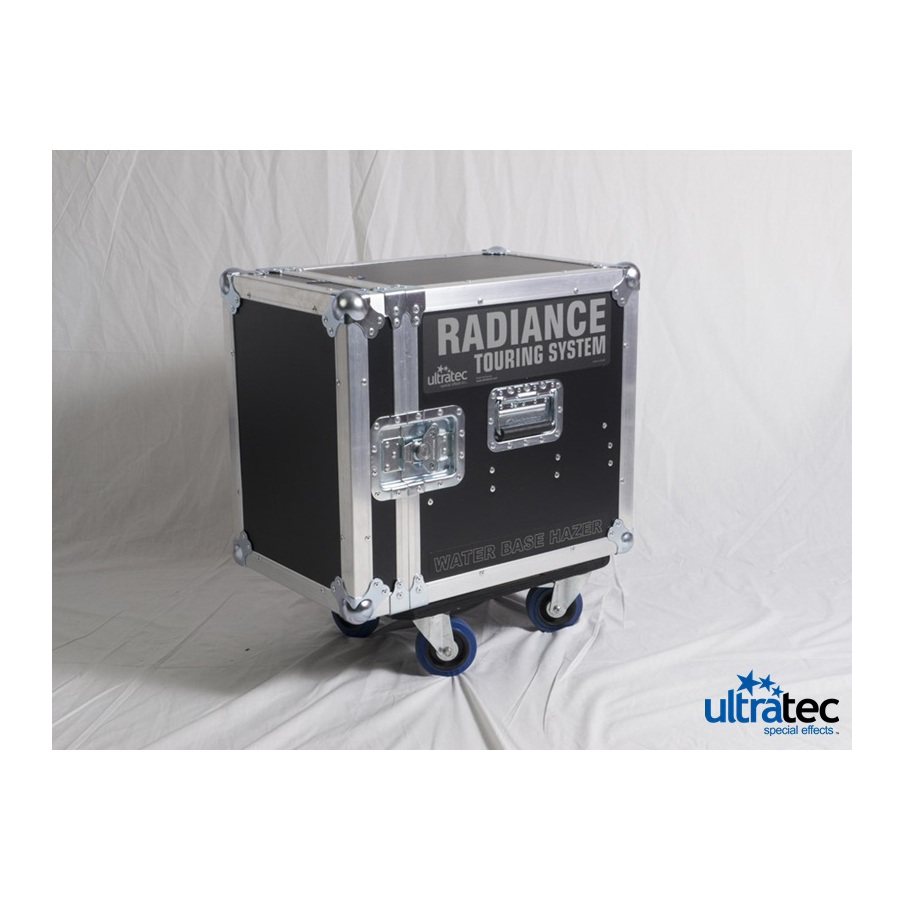

Radiance Touring System - Road Case Only CLF-2485 Radiance Touring System - Road Case Only €1,073.50

Features

  • 4-Port Rapid Clean Vaporizer
  • Built-In DMX
  • Variable Fan
  • Variable Haze Output
  • Stand Alone Operation
  • Optional Remote w/ Timer
  • Use 2L & 4L Jug
  • Enormous Output

Output

Run Time: Continuous
Reheat Time: 8 minutes
Fluid Consumption: 6.7 cc per/ min (Full Output)
Technical Benchmark Spec.: Continuous - 400 cc/ hour.
Competitive Comparison: 10,000cfm

Specifications

Length: 16 in / 41 cm
Width: 13 in / 33 cm
Height: 7 in / 18 cm
Net Weight: 28 lbs / 13 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 500 Watts
Rating: 110 volt AC 50/60 hz 5 amps.
Regulatory Compliance: This product has been certified by QPS/UL Standards Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLF-2462 Radiance Hazer 220V 19 in - 48 cm 13 in - 33 cm 10 in - 26 cm 28 lbs - 13 kgs

Parts Identification Blowout Sheets

Radiance Heater Block Parts Identification Sheet R-A:

View

Radiance Hazer Parts identification Sheet R-A:

View

Wiring Diagrams

Radiance Hazer Wiring Diagram R-A:

View

Service Photos

Block Plates:

View

Bottom Plate - Thermal Assembly:

View

Front View:

View

Outer Block:

View

Radiance Air Pump:

View

Radiance Chassis Mount Triac:

View

Radiance Fan:

View

Radiance Filter:

View

Radiance Micro Pump:

View

Rear View:

View

Side View 1:

View

Side View 2:

View

Thermal couple CXP4002 installation in new & old block holder assembly:

View

Top View:

View

Parts

Product List
CXP-1023 Radiance Hazer 1/8 x 1/8 Plastic Tee €0.00
CXP-1044 3/8 Liquid Tight Fitting €0.00
CXP-1174 Radiance Hazer 4 Port Aluminum Middle Plate €0.00
CXP-1175 0.635 x 1.905 cm Buttite Spacer Zinc €0.00
CXP-1176 0.794 x 1.429 x 0.159 cm Fibre Washer €0.00
CXP-1177 0.794 x 0.953 cm Socket Shoulder Bolt €0.00
CXP-1178 Radiance Handle 1.27 cm Lock Pin €0.00
CXP-1179 Radiance Hazer Block Gasket €0.00
CXP-1180LD1 Radiance PCB 5-Pin Single LED €0.00
CXP-1180LD1R Radiance PCB 5-Pin Single LED RECON. €0.00
CXP-1180LD2 Radiance PCB 5-Pin 2 LED €0.00
CXP-1180LD2R Radiance PCB 5-Pin 2 LED RECON. €0.00
CXP-1182 16/3 IEC 1.829 M Power Cord €0.00
CXP-1183 Radiance Hazer 110V Air Pump €41.67
CXP-1184 5 x 20 mm 8 amp Fuse €0.00
CXP-1185 Radiance Hazer Block Spring €0.00
CXP-1186 Radiance Hazer Block Insulation Kit €0.00
CXP-1187 Radiance Hazer Block Holder €0.00
CXP-1189 Radiance Hazer Aluminum Top Plate €0.00
CXP-1190 Radiance Hazer Aluminum Bottom Plate (Heater) €0.00
CXP-1191 Radiance Block Copper Tube Outlet €0.00
CXP-1192 Radiance Block Copper Tube Inlet €0.00
CXP-1193 Radiance Hazer Machine Truss Handle €0.00
CXP-1222 1.27 cm Plastic Strain Relief €3.94
CXP-1223 Chip - Radiance Hazer V3.07 5-Pin €0.00
CXP-1224 Chip - Radiance Hazer V4.16 5-Pin €0.00
CXP-1233 Power/Stage Fogger Fuse Holder €0.00
CXP-1244 Radiance Hazer Air Pump 220V €0.00
CXP-1252 3 Amp Fuse 3.175 cm €0.00
CXP-1270 Radiance Hazer Block 120V €0.00
CXP-1271 Radiance Hazer Machine Lid €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1273 Radiance Hazer Half Clip €0.00
CXP-1274 Radiance Hazer S/S Block Plate €0.00
CXP-1275 Radiance O-Ring for Air Pump €0.00
CXP-1276 Radiance Hazer Machine Chassis €0.00
CXP-1277 Radiance Hazer Block Insulation Cover €0.00
CXP-1278 3 Prong Female Power Inlet €0.00
CXP-1281 Radiance Fan 220V €0.00
CXP-1283 Radiance PCB 220V 2-LED €490.00
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1290 Standard Terminal Block 3-Wire €0.00
CXP-1292 Standard Terminal Block 5-Wire €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1297 0.635 x 7.62 cm Round Combo Bolts B/O €0.00
CXP-1324 Chip - Radiance Hazer 220V V4.16 5-Pin €46.88
CXP-1335 Chip - Radiance DMX_RX V2.00 5-Pin €46.88
CXP-1345 Chip - Universal Remote V0.33 5-Pin/RJ €0.00
CXP-1470 Radiance Hazer Block 220V €450.00
CXP-2022 Radiance/Bubble Fan 110V €180.94
CXP-2029 Bubble Master 120V Finger Guard €6.56
CXP-2090 Fuse 5X20mm 250V 5Amp €0.98
CXP-2227 NEW Thermal Disc W/Wires & Rivets (Fog/Haze) €0.00
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2461 Radiance Hazer Check Valve €0.00
CXP-2475 Heater Triac €30.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-2802 Fuse Powered Entry Module €0.00
CXP-3617 Snow Machine/Radiance Pump 220V €0.00
CXP-4002 New Radiance Thermocouple Assembly €75.60
CXP-4197 Grey Neutrik Male Chassis Power Out €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-7108 Radiance/Snow Power Switch €19.60
