Power Fog Industrial 9D

Ultratec continues to develop practical products by introducing the Power Fog Industrial 9D Fog Machine. It is built with our 1400 Watt Heat Exchanger and is rotated 90 degrees in the stainless steel chassis. The Power Fog Industrial 9D also has a standard 2-Channel DMX control Interface. This machine was created to eliminate the challenges associated when installing fog effects under stages, or in close and confined spaces. Simply rotate the machine into the desired position. There are rubber feet and plastic glides already fixed to the machine for stability. The Power Fog Industrial 9D is also used extensively in the Low Smoke Generators to decrease the size and allow for greater flexibility.

An Optional Show Control or Timer/ Duration Remote are available.

The Power Fog Industrial 9D has our standard One-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.



Models

Product List
CLF-4457 9D Power Fog Industrial w/Air Option 220V €1,662.50
CLF-4461 9D Power Fog Industrial 220V €1,349.00

Accessories Gallery

Accessories

Product List
10.16 cm Fog Non-insulated Flex Hose 7.62 m CLF-2955 10.16 cm Fog Non-insulated Flex Hose 7.62 m €320.60

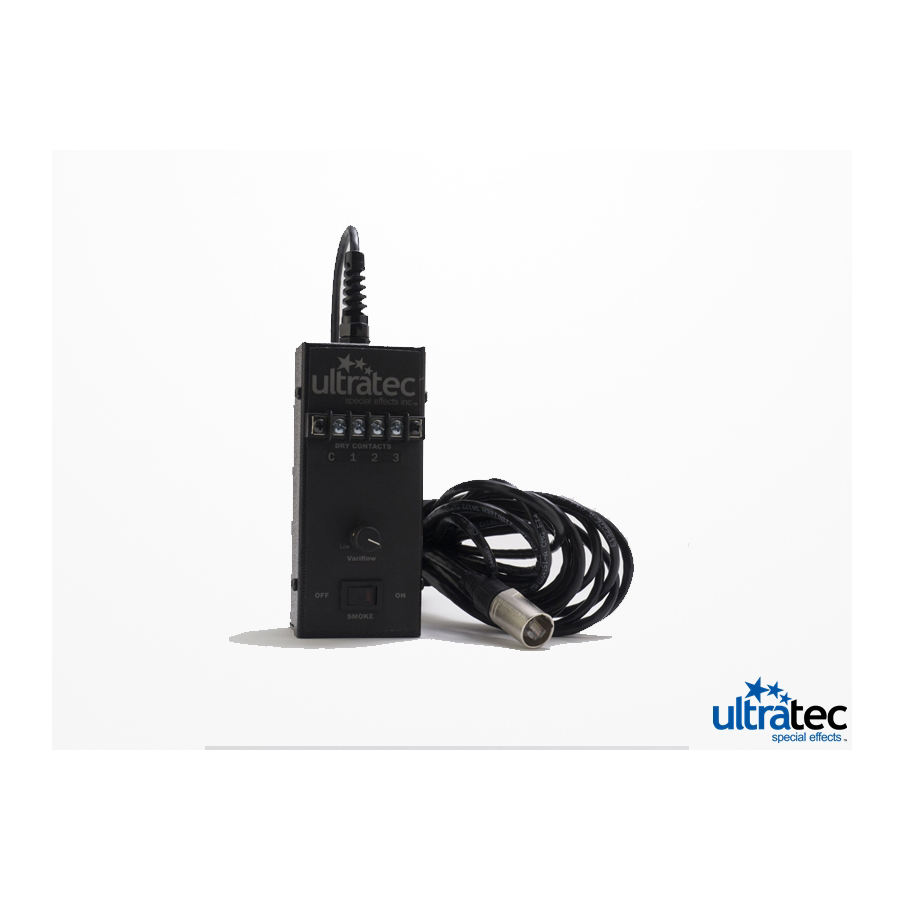

Show Control Remote CLF-4590 Show Control Remote €146.78

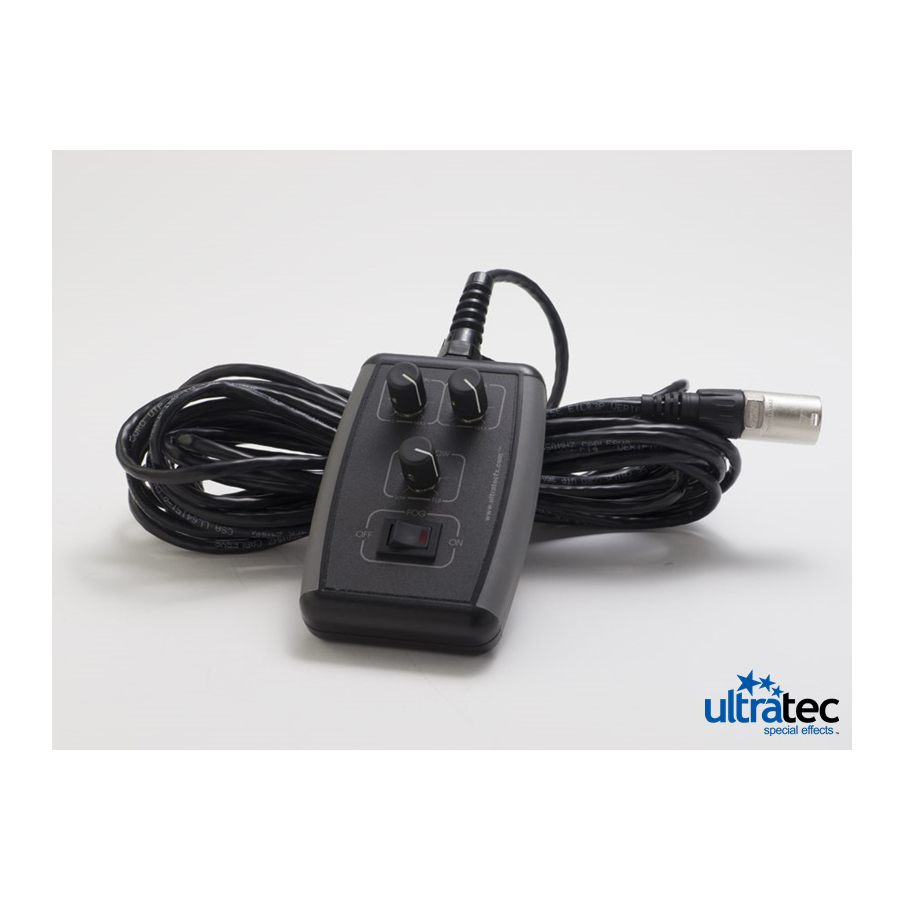

Power/Show/Stage Fogger Remote 5-PIN CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60

Features

  • Heavy-Duty Stainless Steel Chassis
  • Powder Paint Black Finish
  • Rapid Change Heat Exchanger Design
  • Built-in DMX Control
  • 5-Pin DMX Connectors
  • LED DMX Indicator
  • Steel Construction Remote Control
  • Terminal Strip Connection for Show Control (Dry Contacts)
  • 5 Pin XLR Locking Connector to Remote
  • Optional - Remote Timer/Duration
  • Optional - Remote Show Control

Output

Run Time: Continuous
Reheat Time: None
Fluid Consumption: Burst - 127 cc/ min. - Continuous - 57 cc/ min.
Technical Benchmark Spec.: Continuous - 4,000 cfm @ 1 meter visibility; Burst - 8,900 cfm @ 1 meter visibility
Competitive Comparison: 20,000cfm

Specifications

Length: 20 in / 51 cm
Width: 10 in / 25 cm
Height: 9 in / 23 cm
Net Weight: 29 lbs / 13 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 1,400 Watts
Rating: 13 amps AC @ 110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLF-4457 9D Power Fog Industrial w/Air Option 220V 27 in - 69 cm 14 in - 37 cm 12 in - 31 cm 45 lbs - 21 kgs
CLF-4461 9D Power Fog Industrial 220V 27 in - 69 cm 14 in - 37 cm 12 in - 31 cm 37 lbs - 17 kgs

Parts Identification Blowout Sheets

9D Power Fogger Block Exploded Rev-A:

View

9D Power Fogger Exploded Rev-A:

View

Air Option-Exploded-R-A:

View

CLF-4530 9D Power Fog Industrial-Exploded-R-B:

View

Wiring Diagrams

Power Fog Industrial 9D Installation - wiring photo for Part CXP3002 R-A:

View

Power Fog Industrial 9D Installation - wiring schematics for Part CXP3002 R-A:

View

Power Fog Industrial 9D Stage-PFI-9D Rev 7 THERMO R-A:

View

Service Photos

Base View:

View

Circuit Board View:

View

CXP4005 - New Thermal Couple Installation:

View

Internal Overview:

View

Power Fog Industrial with Air Option Regulator:

View

Rear View:

View

Side View:

View

Side View 2:

View

Top View:

View

Wiring Details:

View

Parts

Product List
CLF-4590 Show Control Remote €146.78
CXP-1044 3/8 Liquid Tight Fitting €0.00
CXP-1097 15 Amp. Fuse 3.175 cm €0.00
CXP-1129 RJ45 PCB 90 Degree €0.00
CXP-1214 9D Rapid Change Kit €51.56
CXP-1216 1/4 ID Black PVC Industrial Hose €2.80
CXP-1218 Female Air Coupler €0.00
CXP-1221 1.905 cm Plastic Strain Relief €0.00
CXP-1222 1.27 cm Plastic Strain Relief €3.94
CXP-1232 9D Plastic Slide €0.00
CXP-1233 Power/Stage Fogger Fuse Holder €0.00
CXP-1234 Power/Stage Fogger PCB 5-Pin €0.00
CXP-1234R Power/Stage Fogger PCB 5-Pin RECON. €0.00
CXP-1236R PFI/9D/Stage PCB RJ45 220V RECON. €0.00
CXP-1237 Power Fog 9D Lid New Style €0.00
CXP-1239 12.7 cm Aluminum Handle 9D/Dry Icer €0.00
CXP-1242 PFI/9D/Stage PCB 220V 5-Pin €289.00
CXP-1242R PFI/9D/Stage PCB 220V 5-Pin RECON. €0.00
CXP-1255 Rapid Block Base Plate €0.00
CXP-1256 Rapid Block Holder Base €0.00
CXP-1257 #12 x 5.08 cm Pan Phillip Screw €0.00
CXP-1258 Rapid Block Holder Lid €0.00
CXP-1265 9D/Stage Aluminum Cast Block 1400W Element €0.00
CXP-1266 Qucik Change Top Wear Plate 15.24 x 12.7 cm €0.00
CXP-1267 Copper Wear Plate Rapid Change €0.00
CXP-1268 0.953 cm Flat Washer €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1290 Standard Terminal Block 3-Wire €0.00
CXP-1292 Standard Terminal Block 5-Wire €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1345 Chip - Universal Remote V0.33 5-Pin/RJ €0.00
CXP-1355 Chip - Power/9D/Stage V5.35 5-Pin/RJ €0.00
CXP-2012 12 Amp Fuse 3.175 cm €0.00
CXP-2060 1.588 cm S.S. Industrial Hose Clamp €0.00
CXP-2227 NEW Thermal Disc W/Wires & Rivets (Fog/Haze) €0.00
CXP-2431 0.476 cm Pump Elbow Male - North American €0.00
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2475 Heater Triac €30.00
CXP-2483 Stage/Show/PFI/9D Insulation Kit €0.00

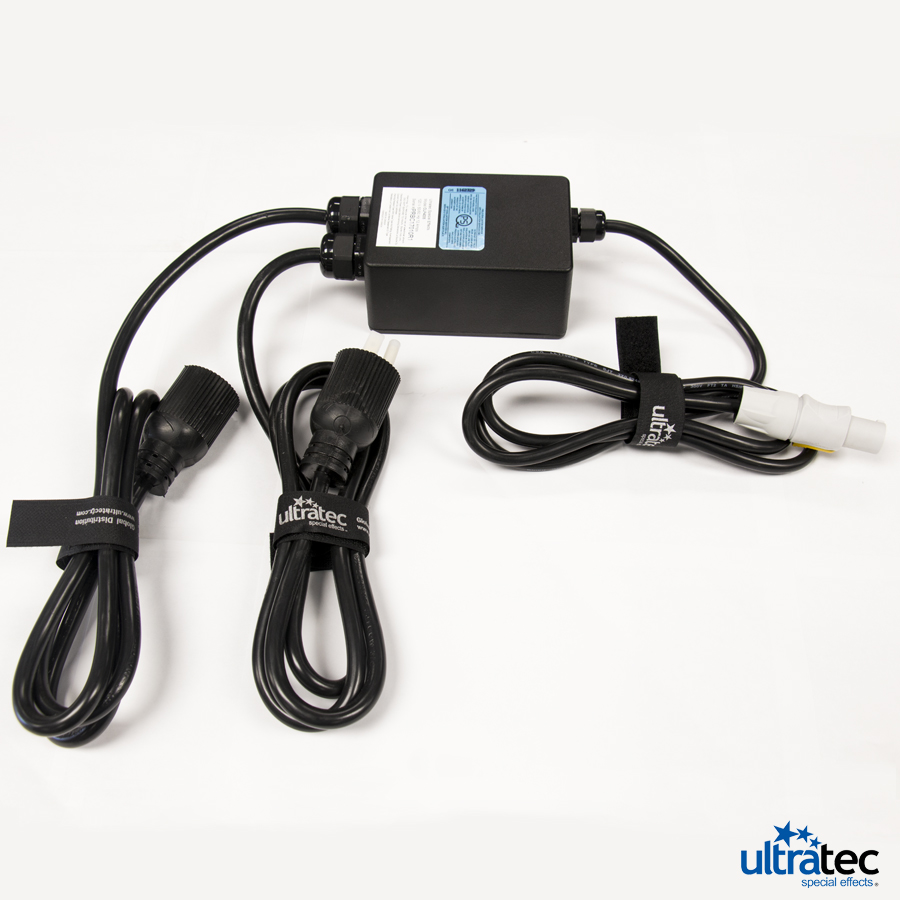

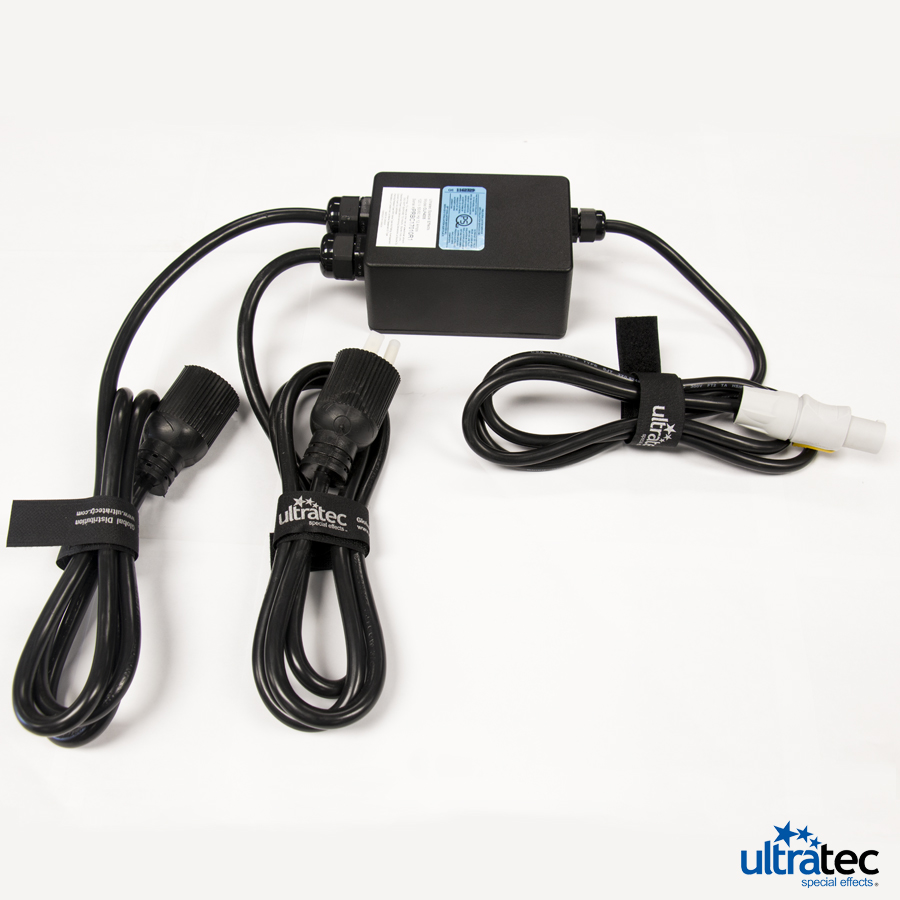

CXP-3000 Power Relay (New Thermal Disk) €0.00
CXP-3040 Illuminated Power Switch €0.00
CXP-3508 U Channel Weatherseal 1/8 x 1/4 €2.38
CXP-4005 New Thermocouple Assembly €75.60
CXP-4067 Stage/PFI/9D 1" Aluminum Cartridge Plate €89.60
CXP-4139 Power/Show/Stage Fogger Remote RJ45 €136.99

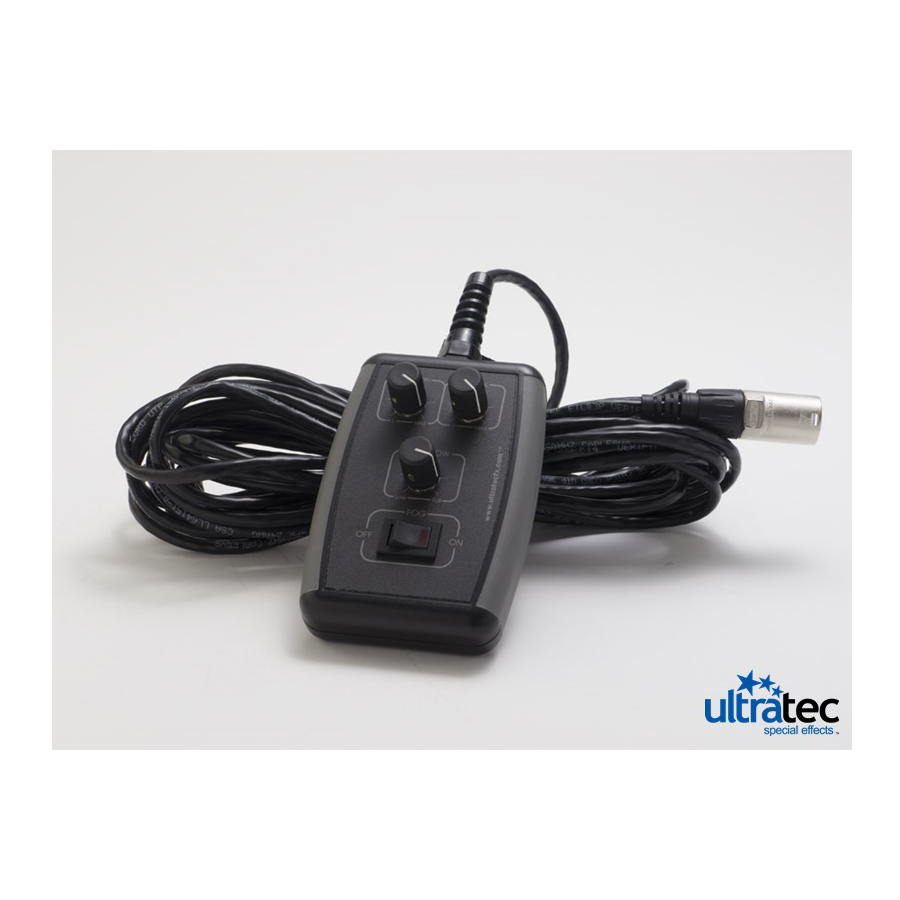

CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60
CXP-4150 220 Volt Pump €151.14
CXP-4197 Grey Neutrik Male Chassis Power Out €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4258 Pump Bracket Flat w/Rubbers €0.00
CXP-4260 Industrial Check Valve €0.00
CXP-4261 D Plug for 14/3 Cable €0.00
CXP-4263 Schuko Plug 240V €23.18
CXP-4286 1/4" Flat Washer €0.21
CXP-4290 Industrial Filter Check Valve €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
CXP-7500 Capillary Thermostat Assembly €78.40
