Bubble Master

The Bubble Master is a professional and durable machine that is capable of introducing enormous quantities of bubbles into the atmosphere. It is built with hi-tech, roto-mold plastic that prevents corrosion. The Bubble Master is also equipped with high power fans that offer a variable speed control which allows for greater flexibility in the bubble projection.

The Bubble Master has our standard One-Year Warranty on all parts and service.


Product List
CLB-2014 Bubble Master 220V €967.74
CLB-2020 Bubble Master 220V w/FDS Option €1,054.50
CLB-2018 Bubble Master DMX 220V w/FDS Option €0.00

Accessories Gallery


Product List

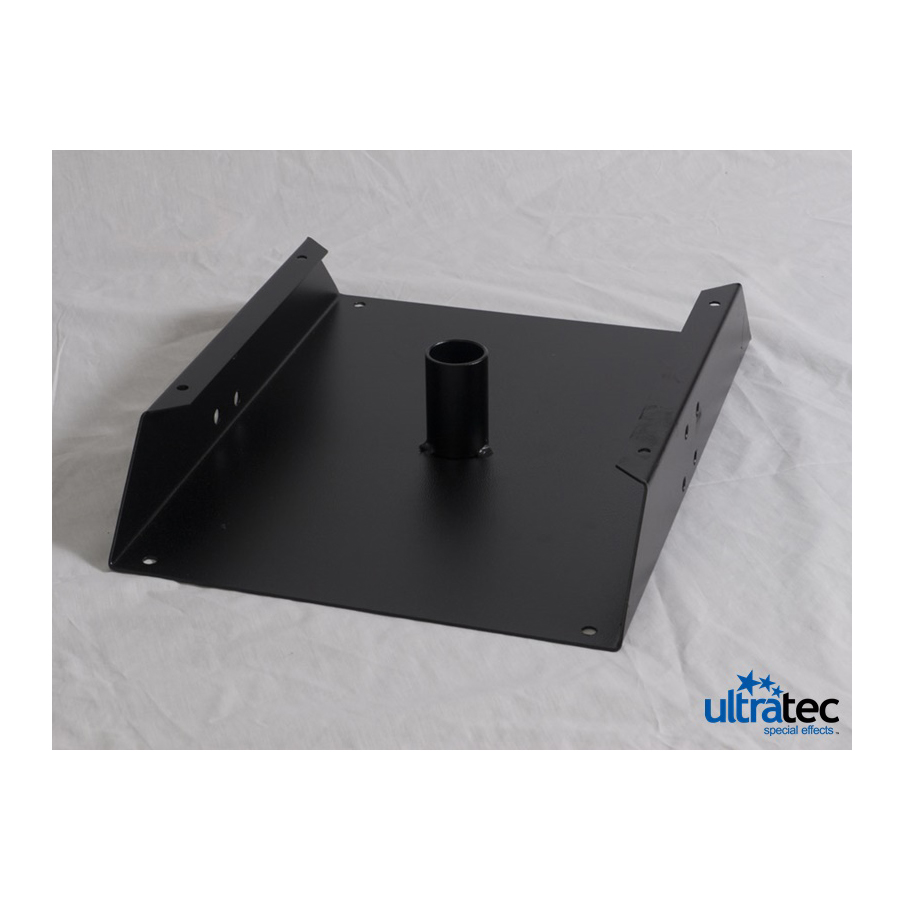

Bubble Master Stand Plate CLB-2005 Bubble Master Stand Plate €99.81

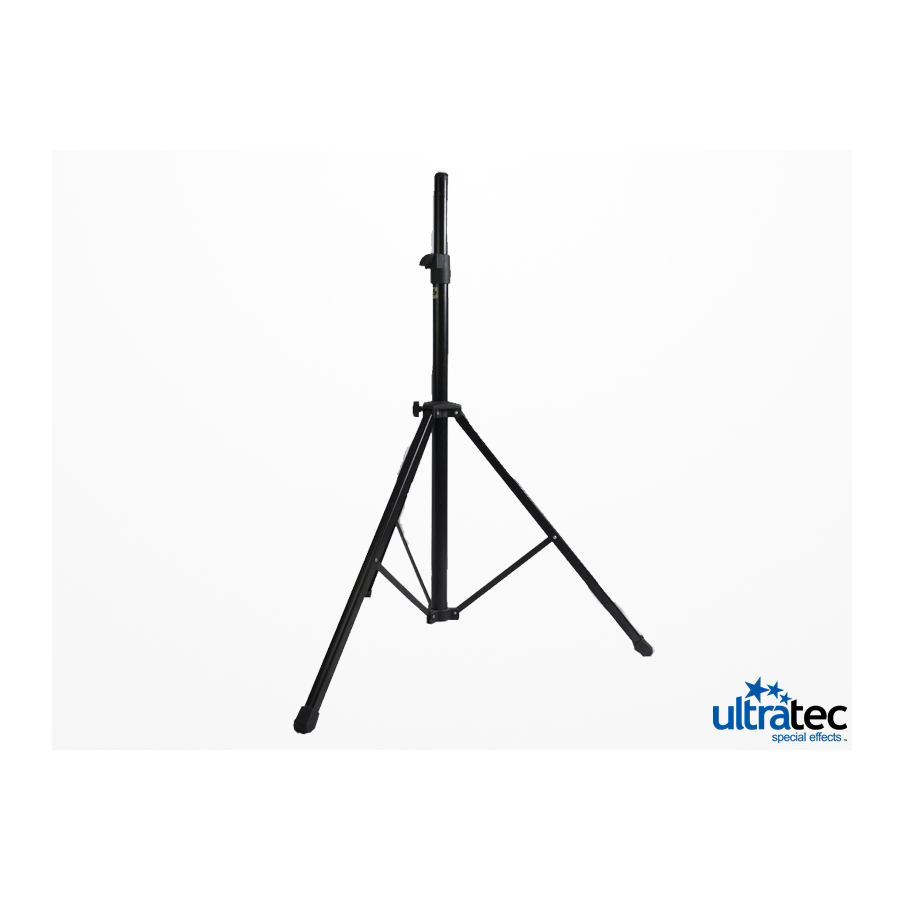

Bubble Master Tripod Stand CLB-2007 Bubble Master Tripod Stand €145.83

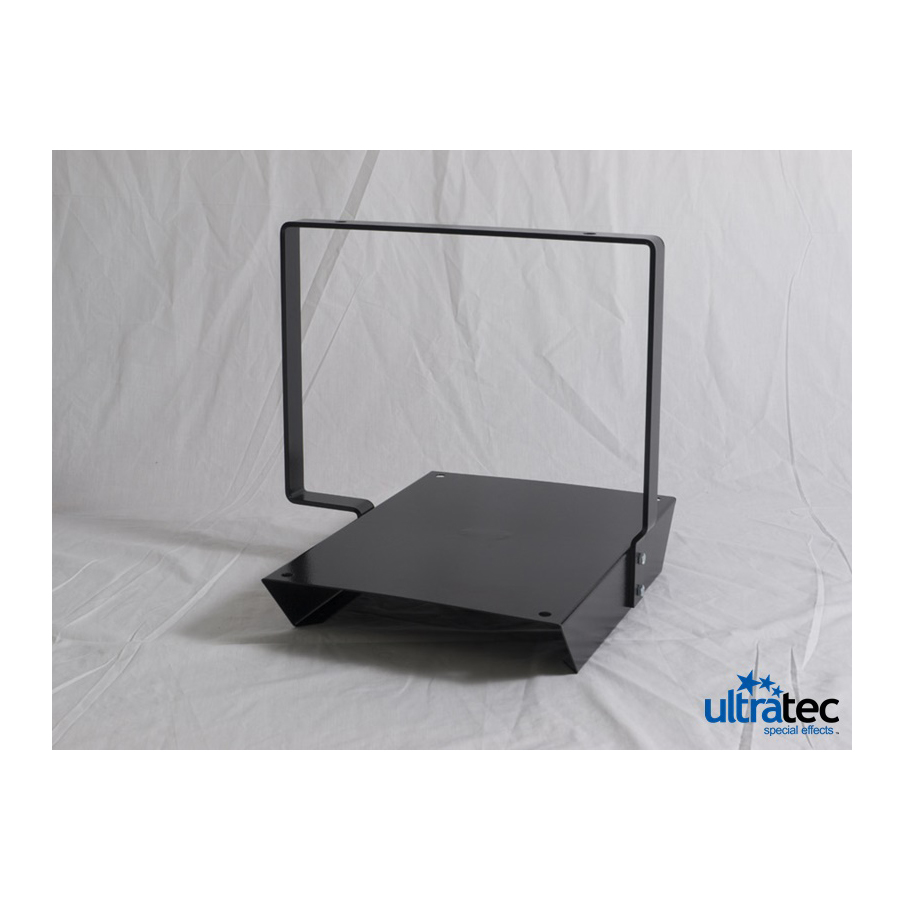

Bubble Master Truss Mount CLB-2009 Bubble Master Truss Mount €160.51

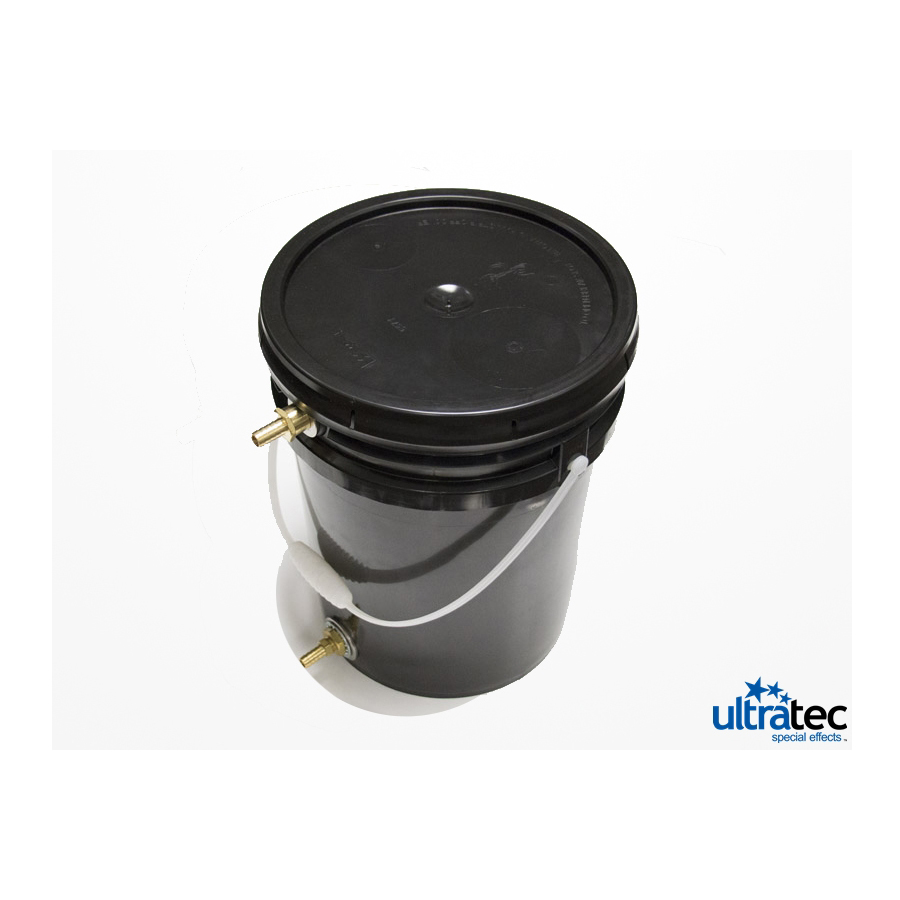

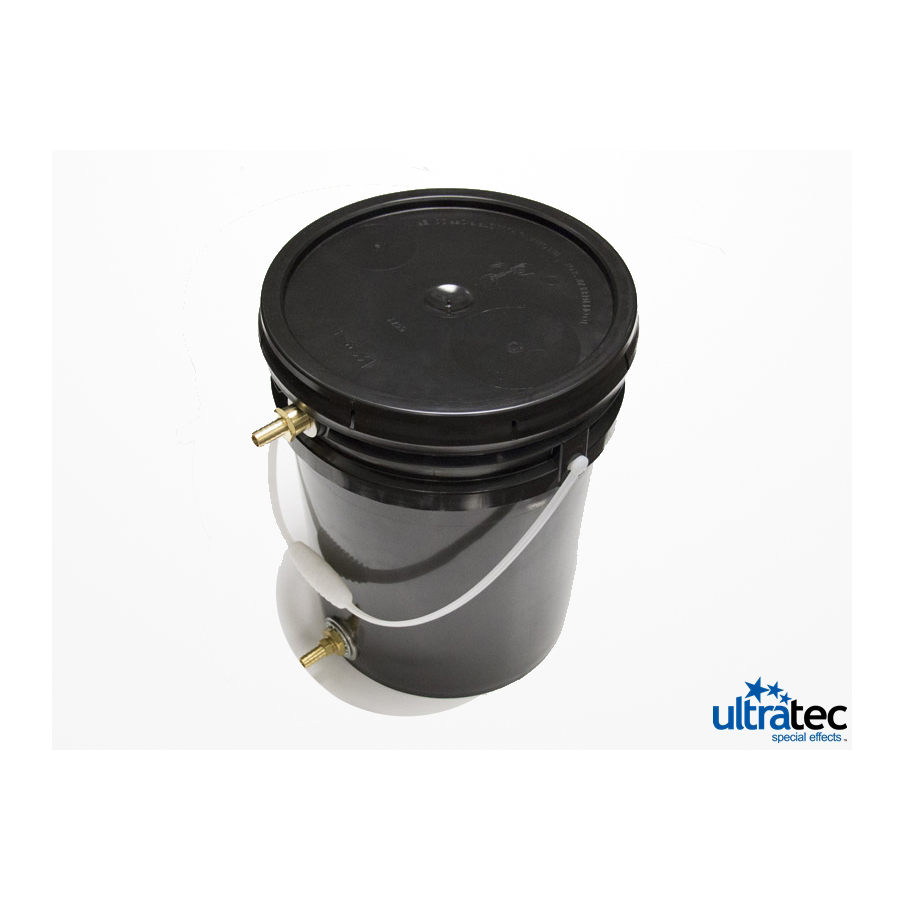

Bubble Master FDS Pail CLB-2010 Bubble Master FDS Pail €160.51

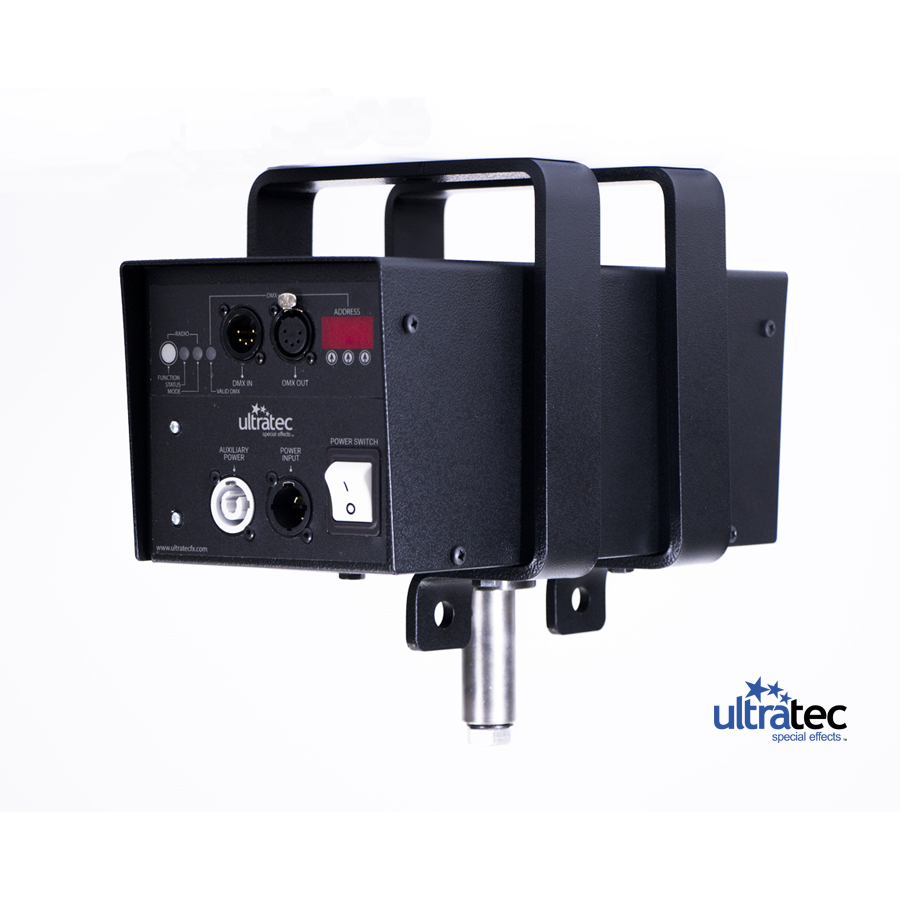

Swivel Bracket 90 Degree Rotator DMX CLF-6000 Swivel Bracket 90 Degree Rotator DMX €1,917.59


  • Enormous Bubble Output
  • Heavy-Duty Moulded Plastic Chassis
  • Non-Corosive Interior Design
  • Bubble Projector
  • Light Weight
  • 1-Gallon Capacity FDS Compatible


Fluid Consumption: 1 Gallon = 50 min. @ 100% Output


Length: 24 in / 61 cm
Width: 16 in / 41 cm
Height: 11 in / 28 cm
Net Weight: 21 lbs / 10 kgs
Power Cord: 6 ft - 1.8 m
Rating: 1 amp @ 110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLB-2014 Bubble Master 220V 32 in - 81 cm 17 in - 43 cm 12 in - 31 cm 24 lbs - 11 kgs
CLB-2020 Bubble Master 220V w/FDS Option 32 in - 81 cm 17 in - 43 cm 12 in - 31 cm 24 lbs - 11 kgs

Service Photos

Front View:


Internal View:


Rear View:


Side Panel Detached:


Side Panel Detached Close Up:


Side View :


Side View with Bubble Projector:


Side View without Bubble Projector:



Product List
CXP-5034 Le Flame 18/3 Power Cord 3.658 m €0.00
CXP-5031 Le Flame 2 Amp Fuse 5 x 20MM €2.81
CXP-4263 Schuko Plug 240V €23.18
CXP-4034 MC3 Fan Speed Control 220V €45.94
CXP-3044 MC3 Fan Speed Control 110V €27.19
CXP-3040 Illuminated Power Switch €0.00
CXP-2048 Bubble Master 220V DMX PCB €0.00
CXP-2046 Bubble Shaft Bushing €20.63
CXP-2045 Bubble Wheel Assembly Complete €131.25
CXP-2031 Bubble Wand Only €0.94
CXP-2030 Bubble Master 220V Finger Guard €85.31
CXP-2029 Bubble Master 120V Finger Guard €6.56
CXP-2027 Bubble Wheel w/Wands €45.00
CXP-2026 Bubble Master Ext. Sleeve €107.81
CXP-2024 Bubble Master 120V Motor €25.31
CXP-2023 Bubble Master 220V Motor €22.50
CXP-2022 Radiance/Bubble Fan 110V €180.94
CXP-2021 Bubble Master 220V Fan €451.88
CXP-1297 0.635 x 7.62 cm Round Combo Bolts B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1290 Standard Terminal Block 3-Wire €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1222 1.27 cm Plastic Strain Relief €3.94
CXP-1126 Bubble Motor Coupler €15.00
