Battle Fogger

Continuous fog output from our Rapid Change Technology Heat Exchanger. The Battle Fogger incorporates a large heating block, a strong whisper-quiet pump and our award-winning Rapid Change Technology. The machine has a large one-gallon integrated fluid tank that prevents leaks and drips, a built-in handle, special hammer-tone finish that resists scratching and wear and a built-in 4” hose adapter.

The Battle Fogger has our standard One-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.

Models

Product List
CLF-4205 Battle Fogger 220V (Timer Remote Included) €1,091.55

Accessories Gallery

Accessories

Product List
10.16 cm Fog Non-insulated Flex Hose 7.62 m CLF-2955 10.16 cm Fog Non-insulated Flex Hose 7.62 m €320.60

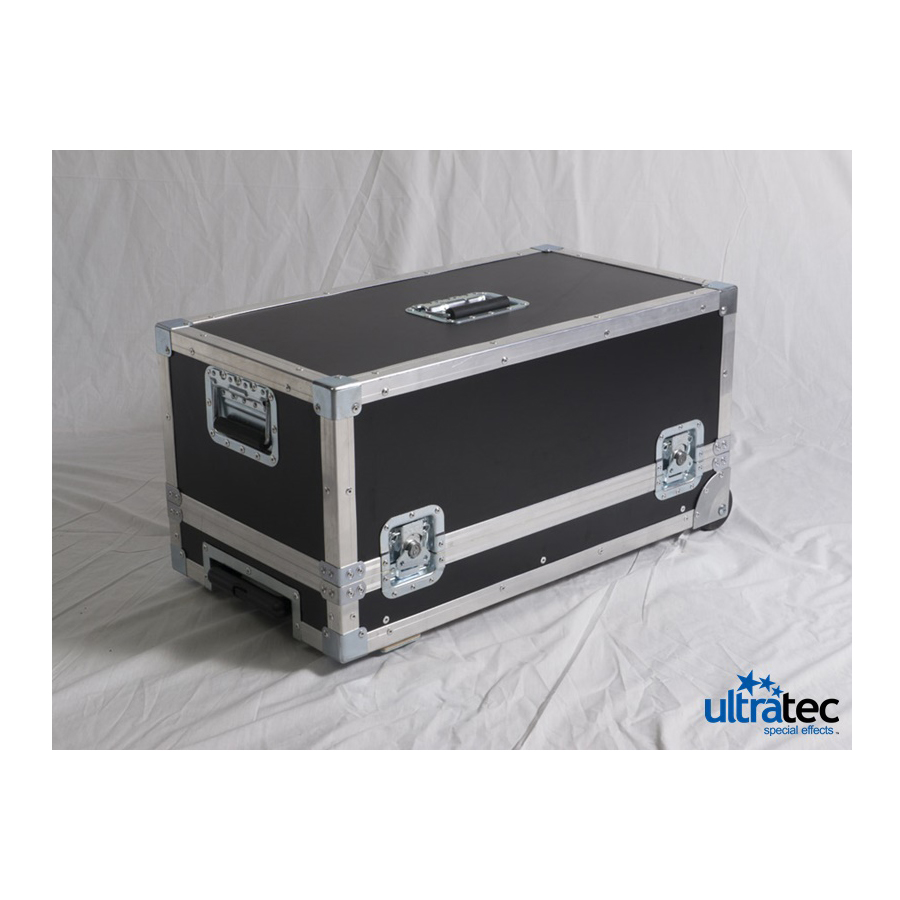

Battle Fogger Custom Road Case CLF-4210 Battle Fogger Custom Road Case €880.65

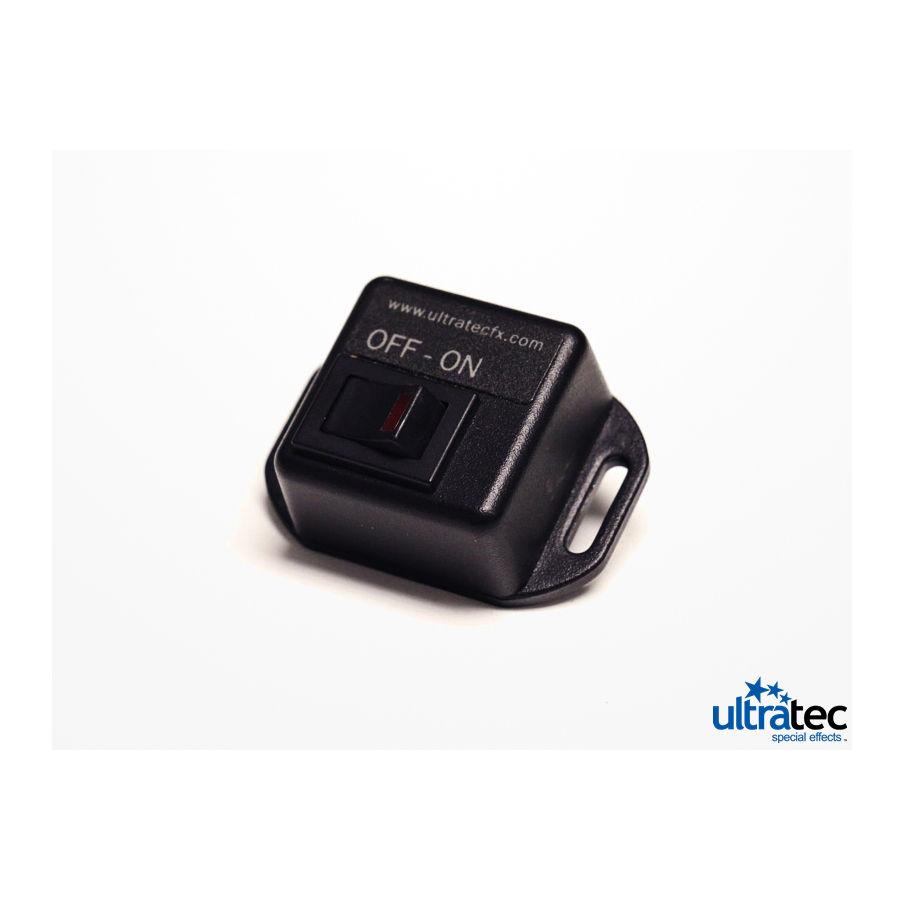

Show/Battle Fogger Mini Remote CLF-4300 Show/Battle Fogger Mini Remote €80.00

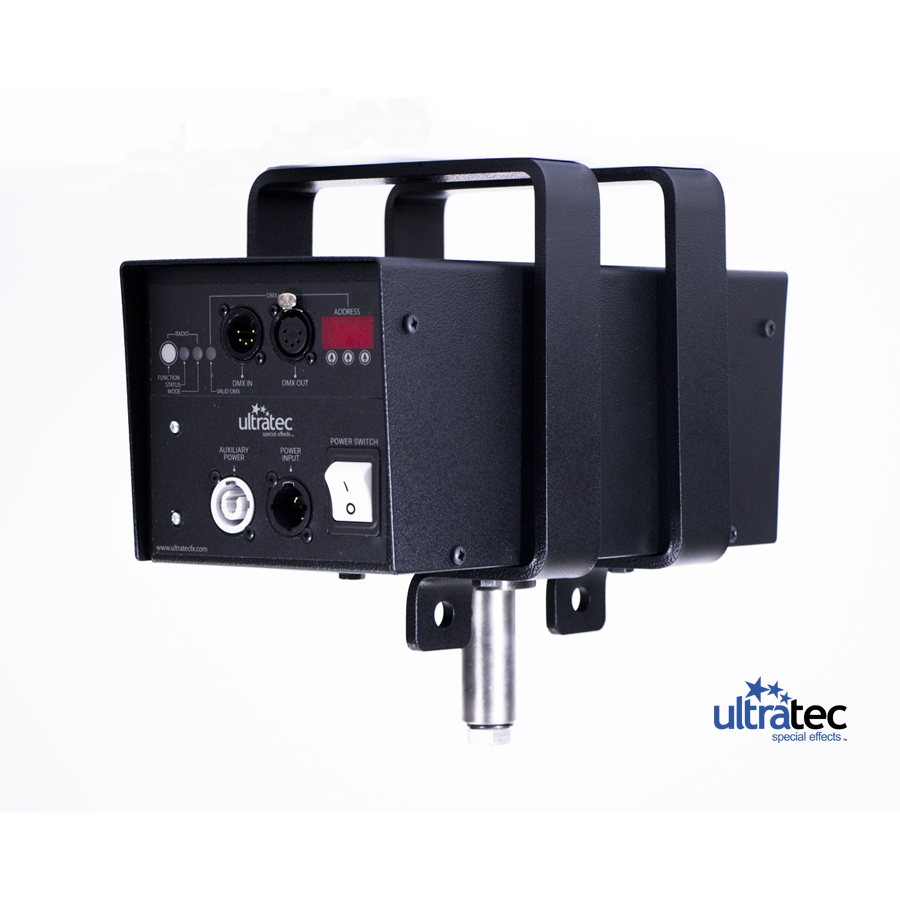

Swivel Bracket 90 Degree Rotator DMX CLF-6000 Swivel Bracket 90 Degree Rotator DMX €1,917.59

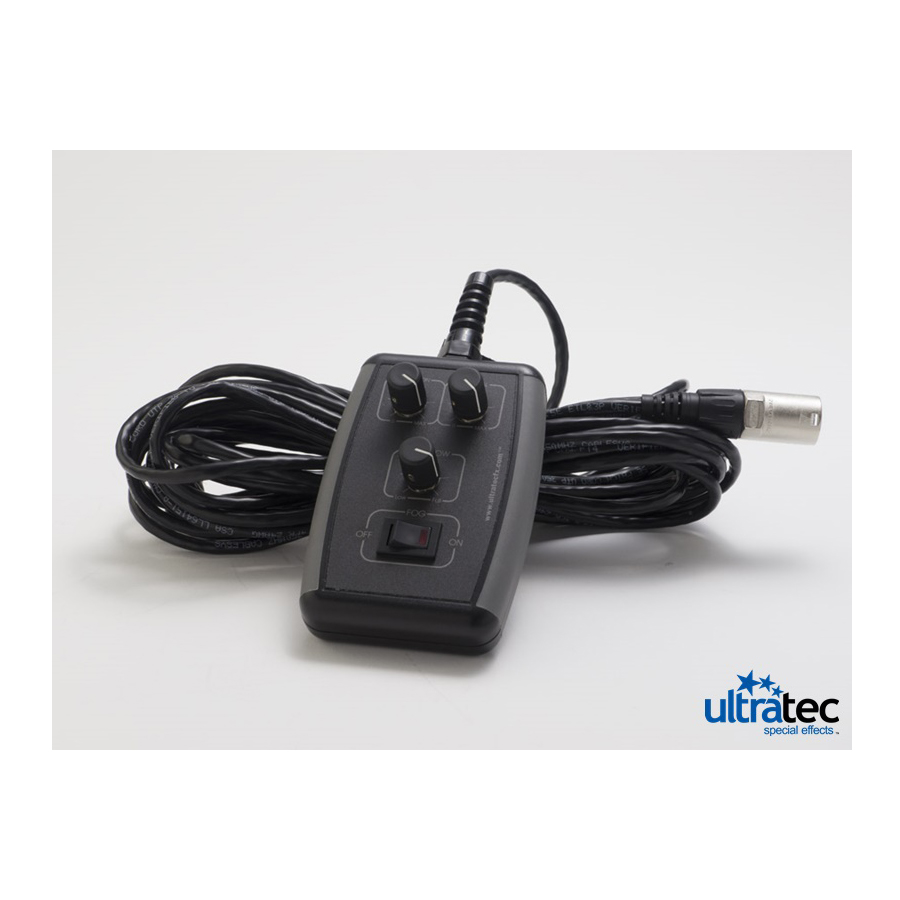

Power/Show/Stage Fogger Remote 5-PIN CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60

Features

  • Continuous Fog Output
  • Rapid Change Heat Exchanger Design
  • Microprocessor Controlled
  • Heavy Duty Powder Coated Chassis
  • Electromechanical Over Temperature Protection
  • One-Gallon "No Leak" Integrated Fluid Reservoir
  • Includes a Rapid Change Replacement Kit
  • Illuminated Fog Ready Switch on the Remote
  • Includes Full Function Timer Remote Control

Output

Run Time: Continuous
Reheat Time: 9 min. Initial
Fluid Consumption: Burst: 114 cc/min. - Continuous: 47 cc/ min.
Technical Benchmark Spec.: 3,290 cfm @ 1 meter visibility
Competitive Comparison: 15,000 cfm

Specifications

Length: 22 in / 56 cm
Width: 9 in / 23 cm
Height: 10 in / 25 cm
Net Weight: 25 lbs / 11 kgs
Net Weight/w Fluid: 35 lbs / 16 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 1,250 Watts
Rating: 10 amps @110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLF-4205 Battle Fogger 220V (Timer Remote Included) 26 in - 66 cm 12 in - 31 cm 11 in - 28 cm 35 lbs - 16 kgs

Parts Identification Blowout Sheets

Show & Battle Fogger Block Exploded Drawing R-A:

View

Battle Fogger Block-Exploded Rev-B:

View

Battle Fogger- Exploded-R-B:

View

Wiring Diagrams

Battle Fogger Thermo R-C:

View

Battle Fogger NOV 25 2009 R-B:

View

Battle Fogger Thermo R-A:

View

Service Photos

Battle Fogger Pump:

View

CXP4005 - New Thermal Couple Installation:

View

Front View:

View

Internal View:

View

Lid Off:

View

Rear View:

View

Side View:

View

Side View 2:

View

Top View:

View

Parts

Product List
CLF-4402 Show/Stage/Battle Rapid Change Replacement Kit €65.63
CLF-4590 Show Control Remote €146.78
CXP-1013R Show Fogger PCB RJ45 - RECON. €0.00
CXP-1044 3/8 Liquid Tight Fitting €0.00
CXP-1067 Show/Battle Fogger Rapid Change Block €0.00
CXP-1071 Battle Fogger 10.16 cm Hose Adapter €0.00
CXP-1077 Stage/Show/Battle Rapid Change Top Plate €0.00
CXP-1097 15 Amp. Fuse 3.175 cm €0.00
CXP-1101 Chip - Show Fogger V4.10 RJ €0.00
CXP-1112 Show/Stage/Battle/PFI Block 220V €0.00
CXP-1113 Show/Battle Fogger PCB 220V €0.00
CXP-1116 RJ45 Cable Connector €0.00
CXP-1118 Gortex Jug Vent €0.00
CXP-1120 Chip - Show Fogger 100V 50HZ RJ €0.00
CXP-1233 Power/Stage Fogger Fuse Holder €0.00
CXP-1248 Brass Fitting Stage/Show/Battle Fluid Jug €22.50
CXP-1255 Rapid Block Base Plate €0.00
CXP-1256 Rapid Block Holder Base €0.00
CXP-1257 #12 x 5.08 cm Pan Phillip Screw €0.00
CXP-1258 Rapid Block Holder Lid €0.00
CXP-1259 Quick Change Main Plate 1.905 cm €0.00
CXP-1264 1250W 120V Heat Element (Rapid Change Block) €0.00
CXP-1266 Qucik Change Top Wear Plate 15.24 x 12.7 cm €0.00
CXP-1267 Copper Wear Plate Rapid Change €0.00
CXP-1268 0.953 cm Flat Washer €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1305 Chip - Show Fogger V4.00 RJ €0.00
CXP-1341 Show/Battle Fogger PCB 220V 5-Pin €237.65
CXP-1405 8 Amp Fuse 3.175 cm €1.02
CXP-2019 Machine Reservoir Show/Battle €0.00
CXP-2227 NEW Thermal Disc W/Wires & Rivets (Fog/Haze) €0.00
CXP-2431 0.476 cm Pump Elbow Male - North American €0.00
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2475 Heater Triac €30.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-2831 RJ45 Jack Assembly Show/Stage €0.00
CXP-3040 Illuminated Power Switch €0.00
CXP-3501 Battle Fogger Fluid Cap €26.25
CXP-3508 U Channel Weatherseal 1/8 x 1/4 €2.38
CXP-3510 Show Fogger Heat Shield €0.00
CXP-4005 New Thermocouple Assembly €75.60
CXP-4075 Show/Battle Fogger Rapid Change Block Rev.1 Bulb/Capillary €515.20
CXP-4139 Power/Show/Stage Fogger Remote RJ45 €136.99
CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60
CXP-4150 220 Volt Pump €151.14
CXP-4217 3 Pole Spring Terminal Block €0.00
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4258 Pump Bracket Flat w/Rubbers €0.00
CXP-4261 D Plug for 14/3 Cable €0.00
CXP-4263 Schuko Plug 240V €23.18
CXP-4280 10-24 x 2.54 cm Pan Phil Machine Screws €0.00
CXP-4285 Washer 0.635 ID/1.905 cm OD Black Oxide €0.00
CXP-4401 Chip - Show Fogger V2.12 5-Pin €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
CXP-7500 Capillary Thermostat Assembly €78.40
