Show Fogger Pro

Continuous fog output from our Rapid Change Technology Heat Exchanger. The Show Fogger incorporates a large heating block, a strong whisper-quiet pump and our award-winning Rapid Change Technology. This machine has a large one-gallon integrated fluid tank that prevents leaks and drips, a built-in handle, special hammer-tone finish that resists scratching and wear and a built-in 4" hose adapter.

The Show Fogger comes with our standard One-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.

Models

Product List
CLF-4403 Show Fogger Pro 220V (Timer Remote Included) €1,001.30

Accessories Gallery

Accessories

Product List
10.16 cm Fog Non-insulated Flex Hose 7.62 m CLF-2955 10.16 cm Fog Non-insulated Flex Hose 7.62 m €320.60

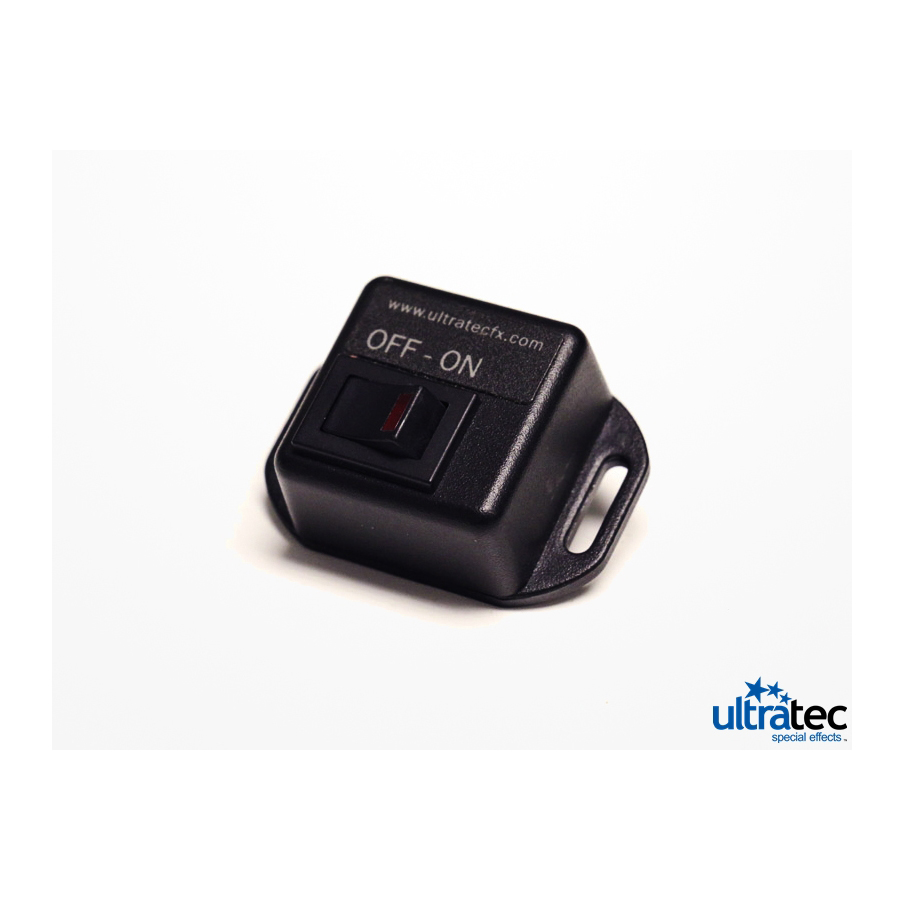

Show/Battle Fogger Mini Remote CLF-4300 Show/Battle Fogger Mini Remote €80.00

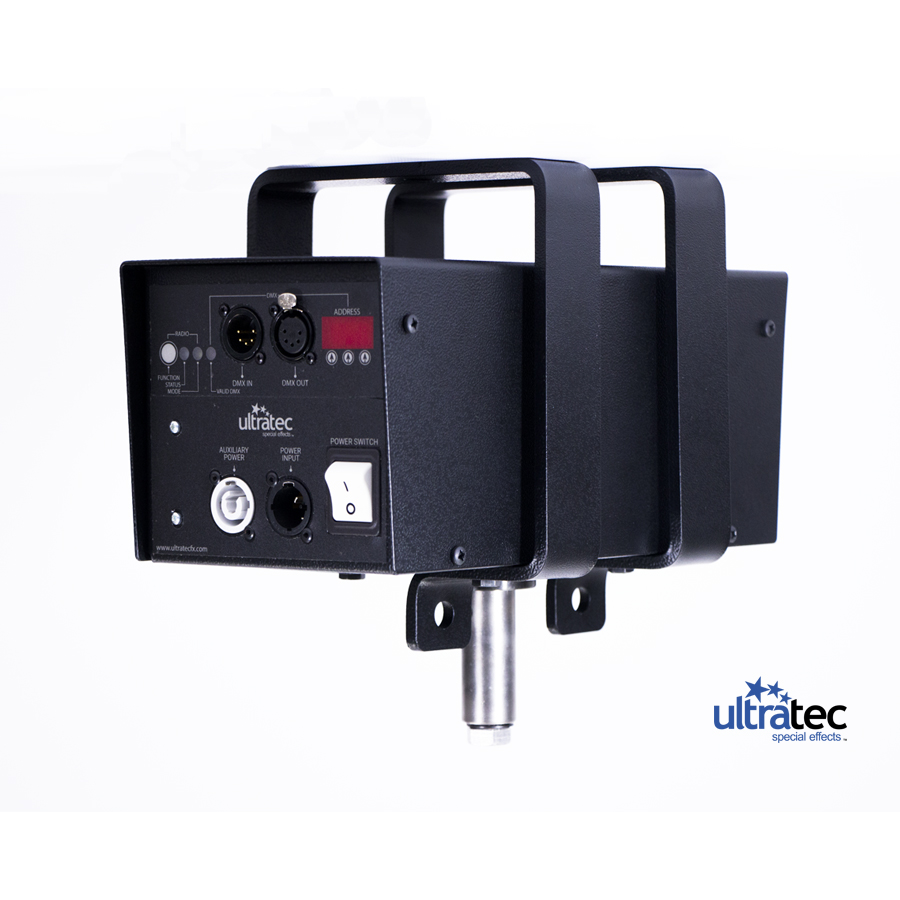

Swivel Bracket 90 Degree Rotator DMX CLF-6000 Swivel Bracket 90 Degree Rotator DMX €1,917.59

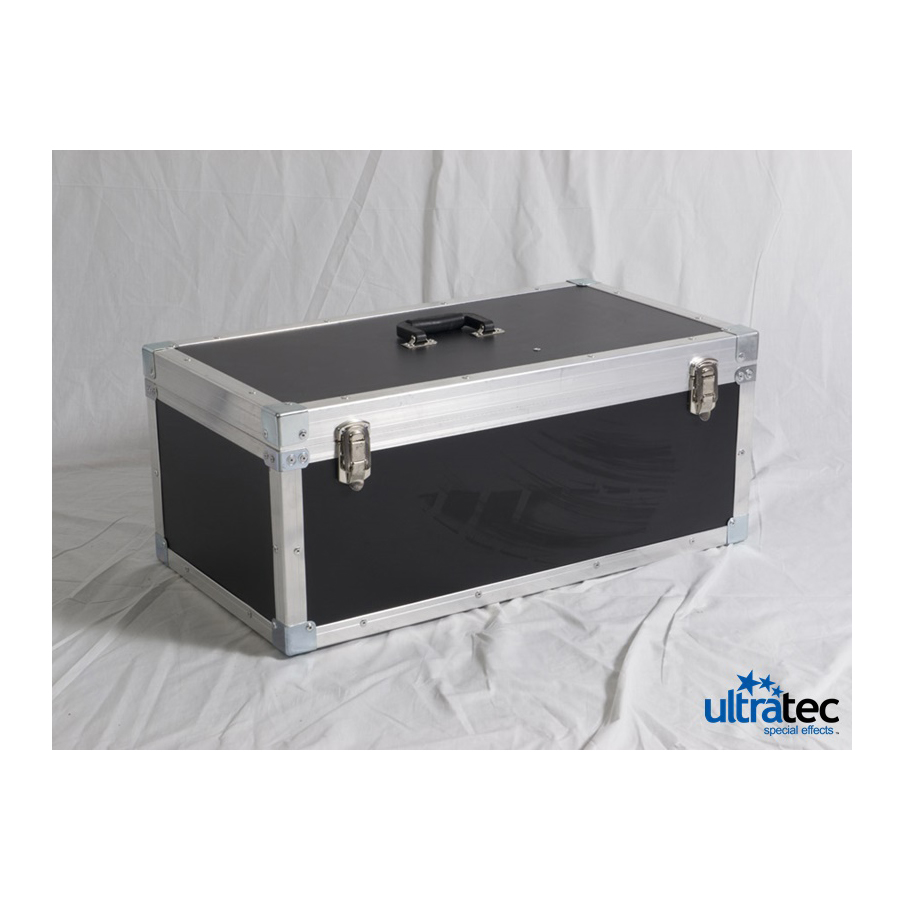

Show Fogger Road Case CLF-7831 Show Fogger Road Case €502.98

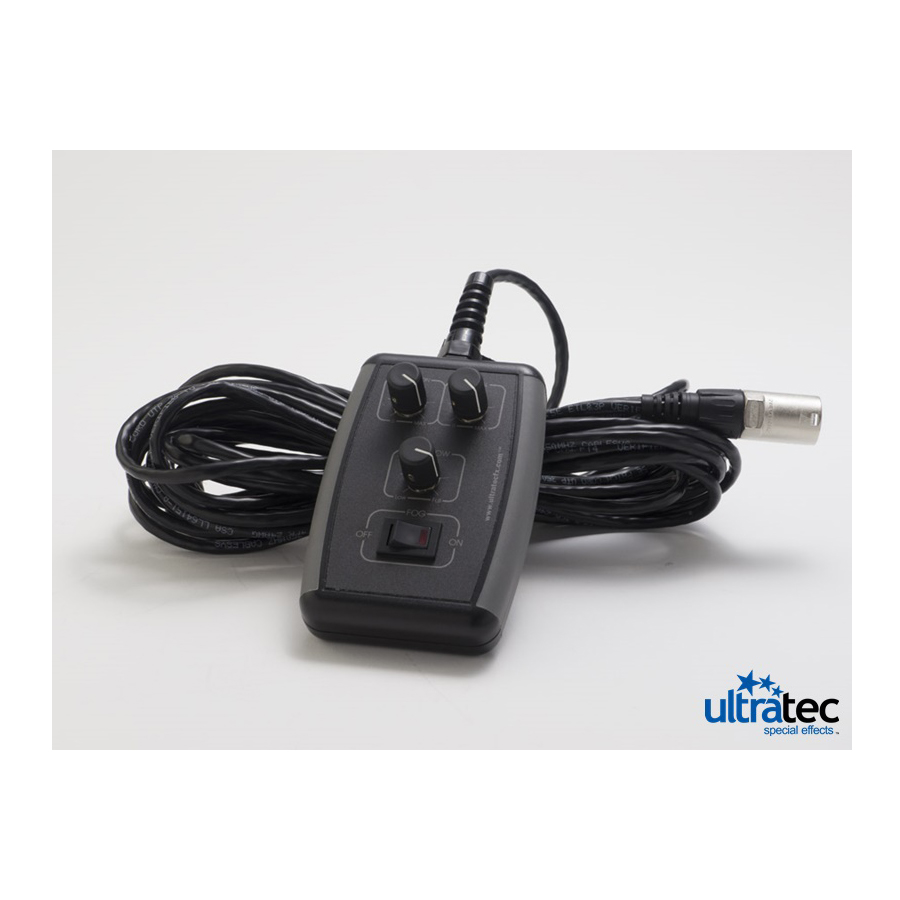

Power/Show/Stage Fogger Remote 5-PIN CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60

Features

  • Continuous Fog Output
  • Rapid Change Heat Exchanger Design
  • Microprocessor Controlled
  • Heavy Duty Powder Coated Chassis
  • Electromechanical Over Temperature Protection
  • One-Gallon "No Leak" Integrated Fluid Reservoir
  • Includes a Rapid Change Replacement Kit
  • Illuminated Fog Ready Switch on the Remote
  • Includes Full Function Timer Remote Control

Output

Run Time: Continuous
Reheat Time: None
Fluid Consumption: Burst: 114 cc/min. - Continuous: 47 cc/ min.
Technical Benchmark Spec.: Continuous: 3,290 cfm @ 1 meter; Burst: 7,980 cfm @ 1 meter
Competitive Comparison: 15,000cfm

Specifications

Length: 22 in / 56 cm
Width: 9 in / 23 cm
Height: 10 in / 25 cm
Net Weight: 25 lbs / 11 kgs
Net Weight/w Fluid: 35 lbs / 16 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 1,250 Watts
Rating: 10 amps @110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLF-4403 Show Fogger Pro 220V (Timer Remote Included) 26 in - 66 cm 12 in - 31 cm 11 in - 28 cm 35 lbs - 16 kgs

Parts Identification Blowout Sheets

Show Fogger Pro Heater Block - Parts Identification Sheet R-A:

View

Show & Battle Fogger Block-Exploded-R-B:

View

Show Fogger- Exploded-R-B:

View

Wiring Diagrams

Show Fogger Pro Thermo R-B:

View

Show Fogger Pro Thermo R-C:

View

Show Fogger Pro Thermo R-A:

View

Service Photos

CXP4005 - New Thermal Couple Installation:

View

Show Fogger Pump:

View

Parts

Product List
CLF-4402 Show/Stage/Battle Rapid Change Replacement Kit €65.63
CLF-4590 Show Control Remote €146.78
CXP-1013R Show Fogger PCB RJ45 - RECON. €0.00
CXP-1044 3/8 Liquid Tight Fitting €0.00
CXP-1046 Show/Stage/G3000 10.16 cm Hose Adapter €0.00
CXP-1056 Show Fogger Cap Label €0.00
CXP-1061 Show Fogger Chassis Lid €0.00
CXP-1066 Show Fogger Chassis Base €0.00
CXP-1067 Show/Battle Fogger Rapid Change Block €0.00
CXP-1072 1/4" Black Polytube €1.40
CXP-1077 Stage/Show/Battle Rapid Change Top Plate €0.00
CXP-1097 15 Amp. Fuse 3.175 cm €0.00
CXP-1101 Chip - Show Fogger V4.10 RJ €0.00
CXP-1112 Show/Stage/Battle/PFI Block 220V €0.00
CXP-1113 Show/Battle Fogger PCB 220V €0.00
CXP-1116 RJ45 Cable Connector €0.00
CXP-1118 Gortex Jug Vent €0.00
CXP-1120 Chip - Show Fogger 100V 50HZ RJ €0.00
CXP-1233 Power/Stage Fogger Fuse Holder €0.00
CXP-1248 Brass Fitting Stage/Show/Battle Fluid Jug €22.50
CXP-1255 Rapid Block Base Plate €0.00
CXP-1256 Rapid Block Holder Base €0.00
CXP-1257 #12 x 5.08 cm Pan Phillip Screw €0.00
CXP-1258 Rapid Block Holder Lid €0.00
CXP-1259 Quick Change Main Plate 1.905 cm €0.00
CXP-1264 1250W 120V Heat Element (Rapid Change Block) €0.00
CXP-1266 Qucik Change Top Wear Plate 15.24 x 12.7 cm €0.00
CXP-1267 Copper Wear Plate Rapid Change €0.00
CXP-1268 0.953 cm Flat Washer €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1305 Chip - Show Fogger V4.00 RJ €0.00
CXP-1376 14 AWG 125C Braided Wire Black €5.18
CXP-1377 14 AWG 125C Braided Wire White €5.18
CXP-1378 18 AWG Stranded Wire Red €1.04
CXP-1405 8 Amp Fuse 3.175 cm €1.02
CXP-2019 Machine Reservoir Show/Battle €0.00
CXP-2227 NEW Thermal Disc W/Wires & Rivets (Fog/Haze) €0.00
CXP-2431 0.476 cm Pump Elbow Male - North American €0.00
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2475 Heater Triac €30.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-2831 RJ45 Jack Assembly Show/Stage €0.00
CXP-3001 0.635 cm Insulated Female Reel Crimp €0.00
CXP-3004 3/16" Insulated Reel Crimp €0.98
CXP-3040 Illuminated Power Switch €0.00
CXP-3502 Show Fogger Fluid Cap €26.25
CXP-3508 U Channel Weatherseal 1/8 x 1/4 €2.38
CXP-3510 Show Fogger Heat Shield €0.00
CXP-4005 New Thermocouple Assembly €75.60
CXP-4075 Show/Battle Fogger Rapid Change Block Rev.1 Bulb/Capillary €515.20
CXP-4139 Power/Show/Stage Fogger Remote RJ45 €136.99
CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60
CXP-4150 220 Volt Pump €151.14
CXP-4217 3 Pole Spring Terminal Block €0.00
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4258 Pump Bracket Flat w/Rubbers €0.00
CXP-4261 D Plug for 14/3 Cable €0.00
CXP-4263 Schuko Plug 240V €23.18
CXP-4280 10-24 x 2.54 cm Pan Phil Machine Screws €0.00
CXP-4285 Washer 0.635 ID/1.905 cm OD Black Oxide €0.00
CXP-4401 Chip - Show Fogger V2.12 5-Pin €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
CXP-7500 Capillary Thermostat Assembly €78.40
