G3000 Fog Effects Generator

The G3000 is the ultimate fog machine featuring, DMX control, 2000w Dual Core Rapid Change Block, LSG compatibility, low fluid detection, continuous thermal control and a full functional back lit digital remote. The stainless steel body holds a one-gallon jug making it an ideal solution for continuous use in many different applications or environments.

The G3000 Fog Effects Generator has our standard One-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.

Also see our G3000 Mega Fog Burst.

Models

Product List
CLF-3003 G3000 Fog Machine 220V €2,348.40
CLF-3004 G3000 Fog Machine 220V w/Ind'l Option €2,619.15
CLF-3006 G3000 Fog Machine 220V w/Air Option €2,842.40

Accessories Gallery

Accessories

Product List

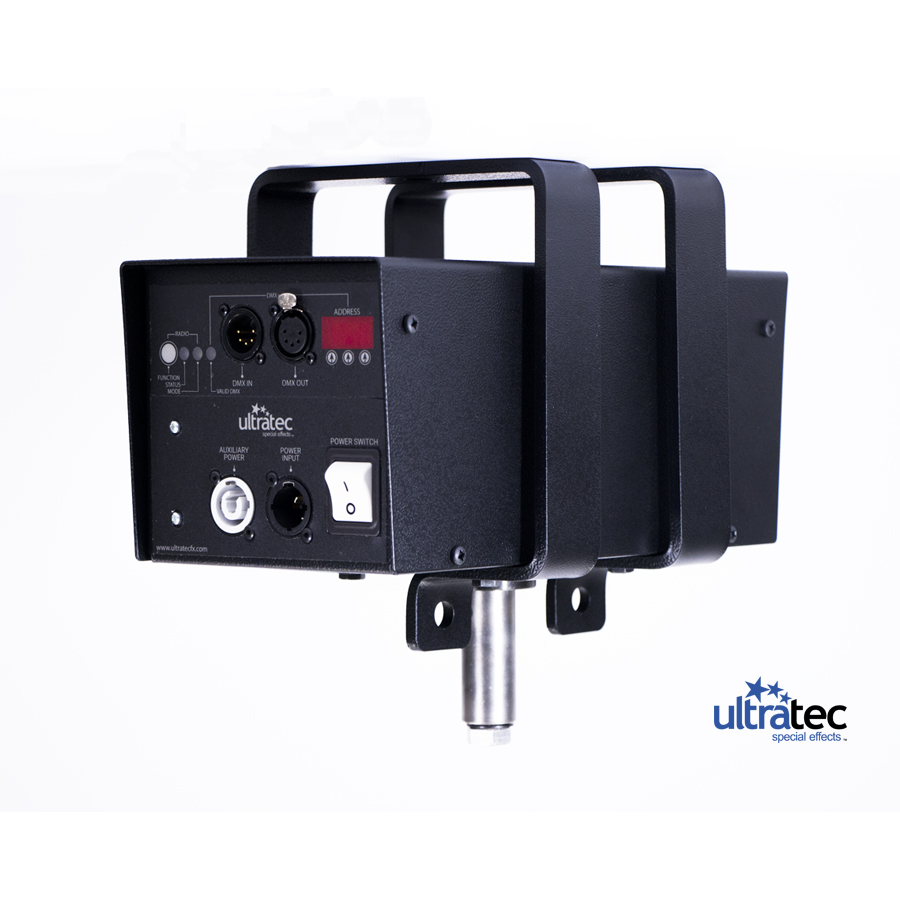

Swivel Bracket 90 Degree Rotator DMX CLF-6000 Swivel Bracket 90 Degree Rotator DMX €1,917.59

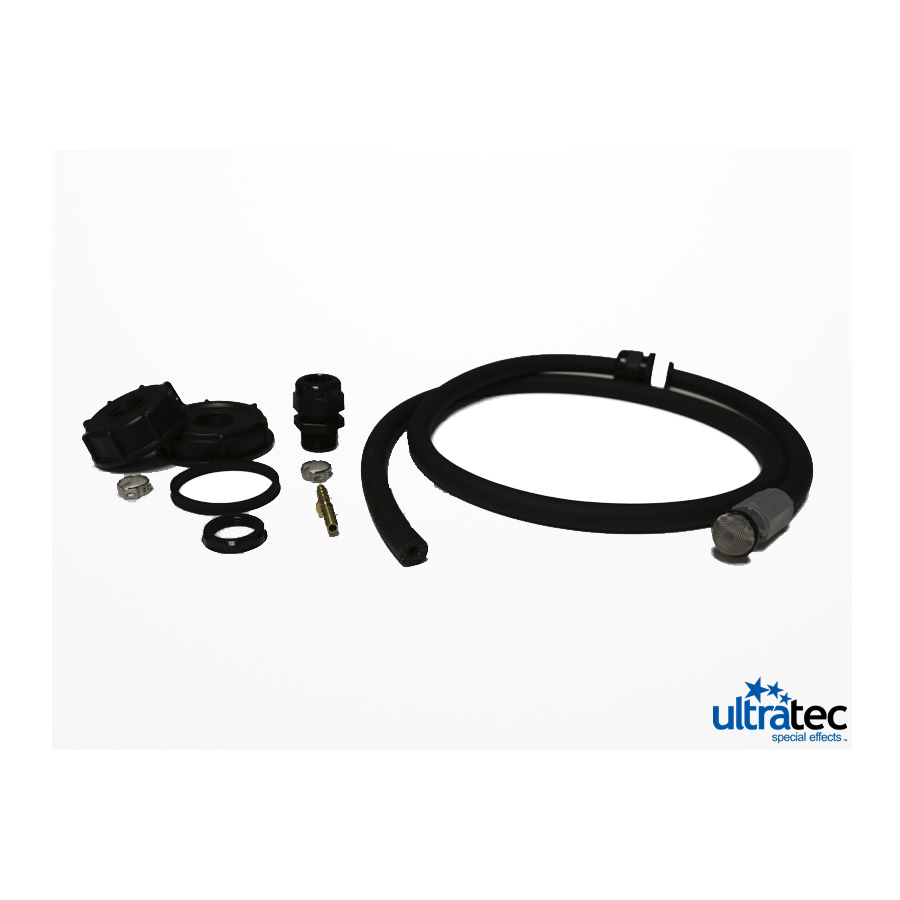

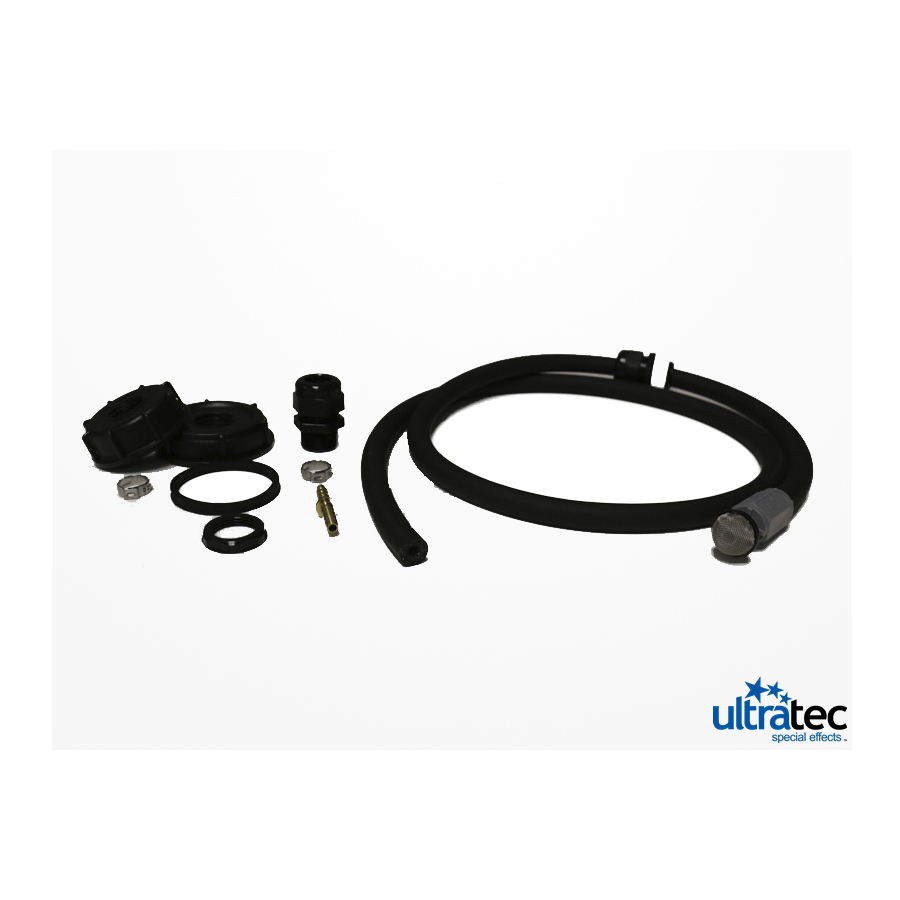

1.524 m Industrial Option Stage/Show/Snow/G3000 CLF-4485 1.524 m Industrial Option Stage/Show/Snow/G3000 €68.50

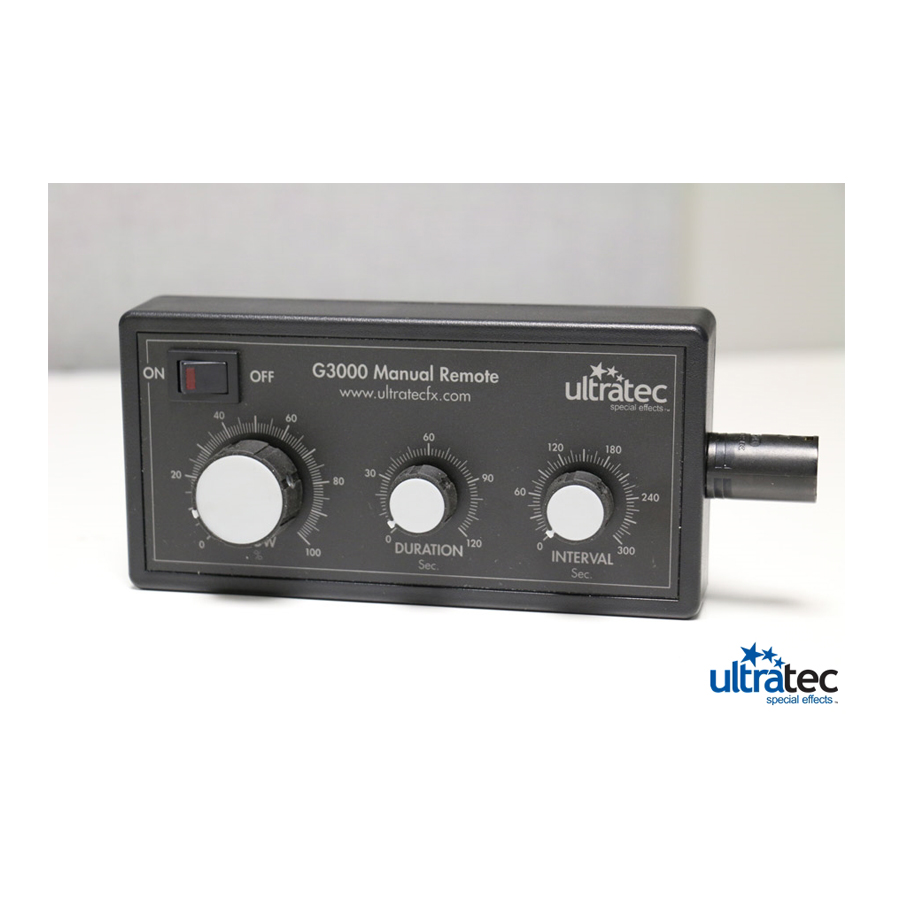

G3000 Analog Remote CLF-3050 G3000 Analog Remote €420.00
30.48 m Remote Cable 7-Pin CLF-3025 30.48 m Remote Cable 7-Pin €303.05

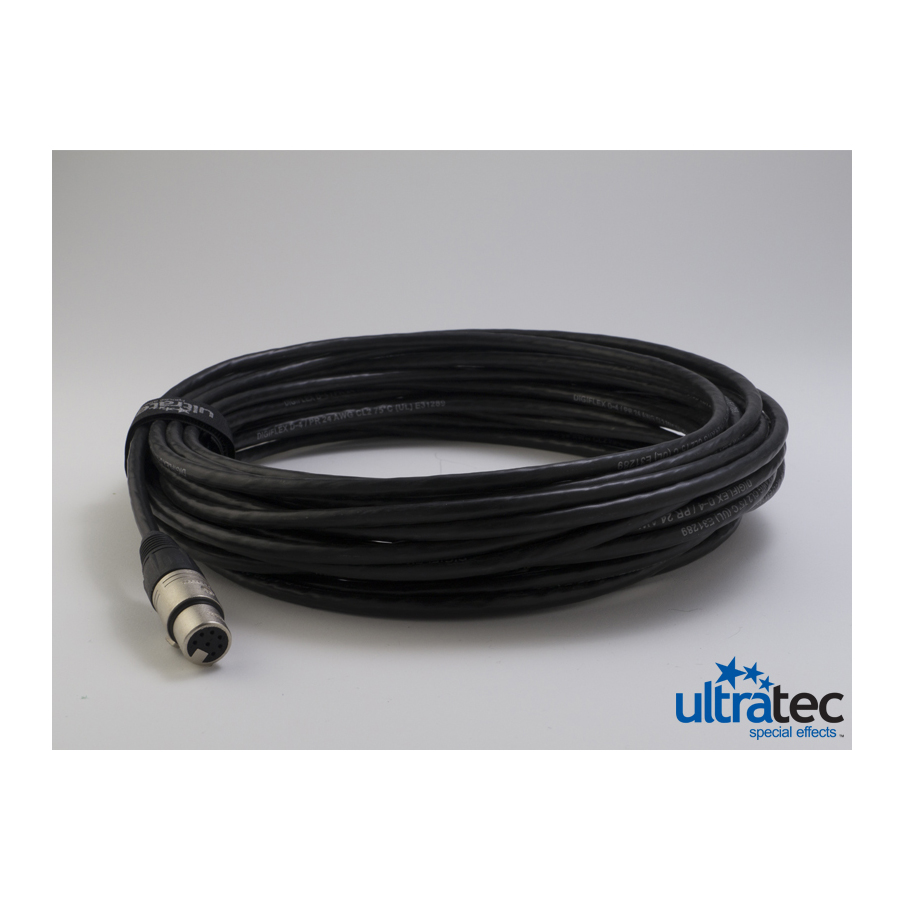

22.86 m Remote Cable 7-Pin CLF-3020 22.86 m Remote Cable 7-Pin €254.60

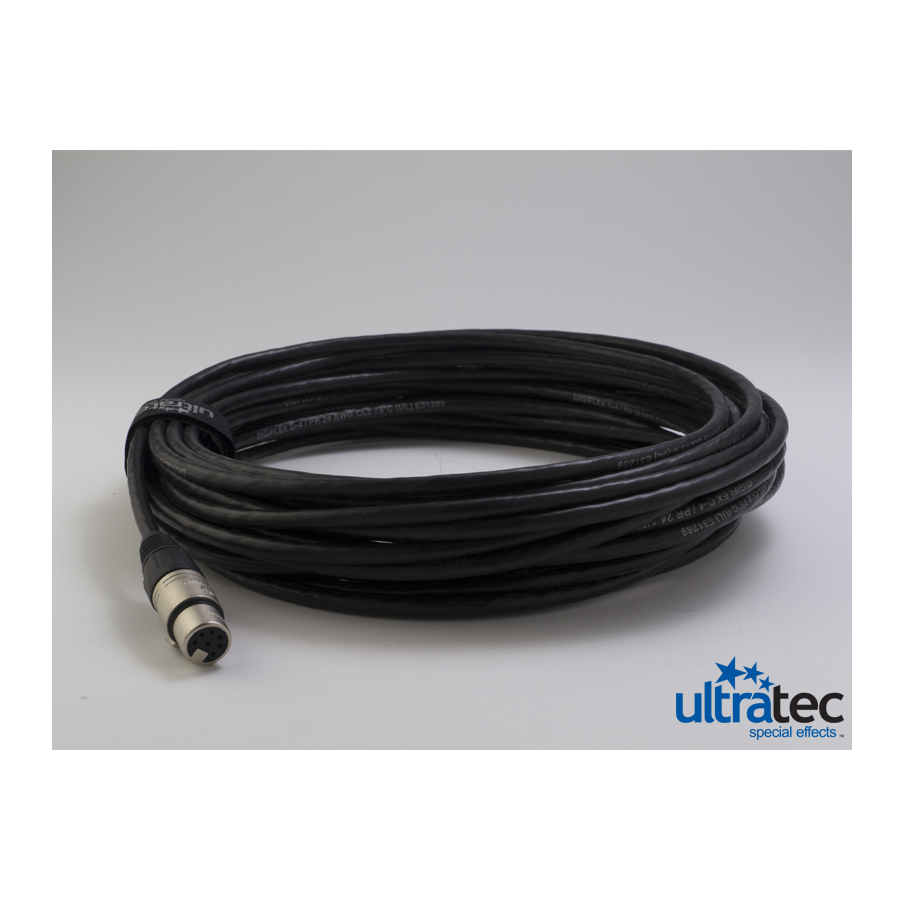

15.24 m Remote Cable 7-Pin CLF-3015 15.24 m Remote Cable 7-Pin €205.49
7.62 m Remote Cable 7-Pin CLF-3012 7.62 m Remote Cable 7-Pin €156.56

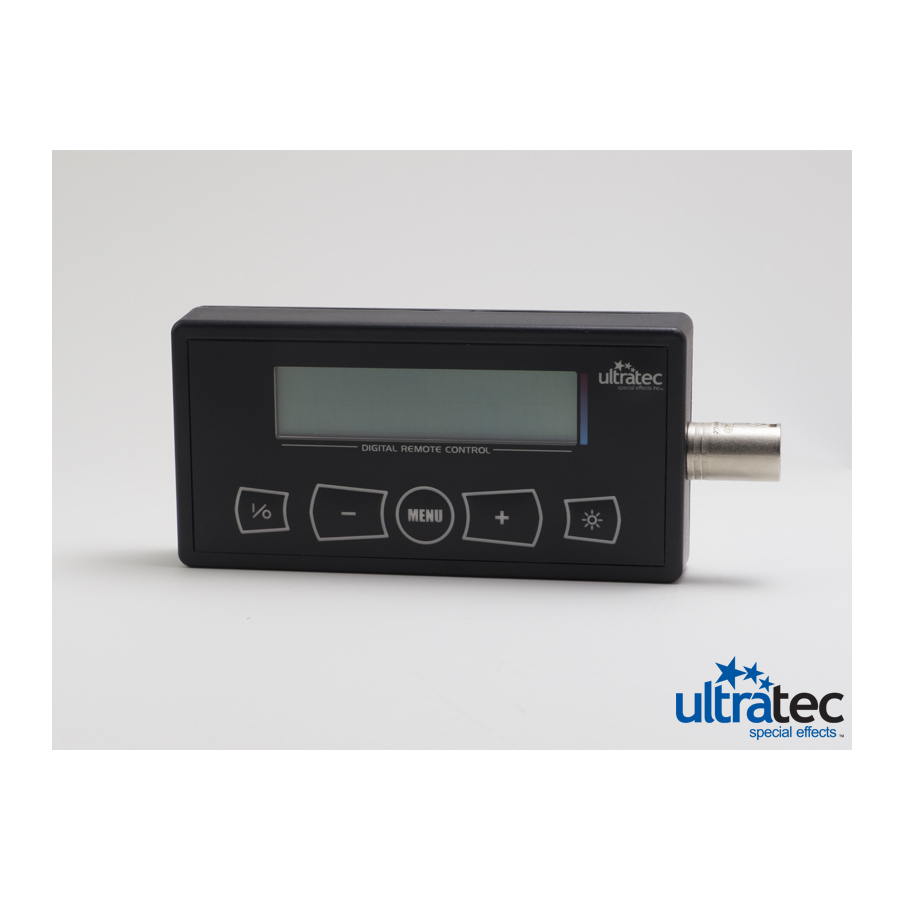

G3000 Fog Machine Remote CLF-3005 G3000 Fog Machine Remote €362.90

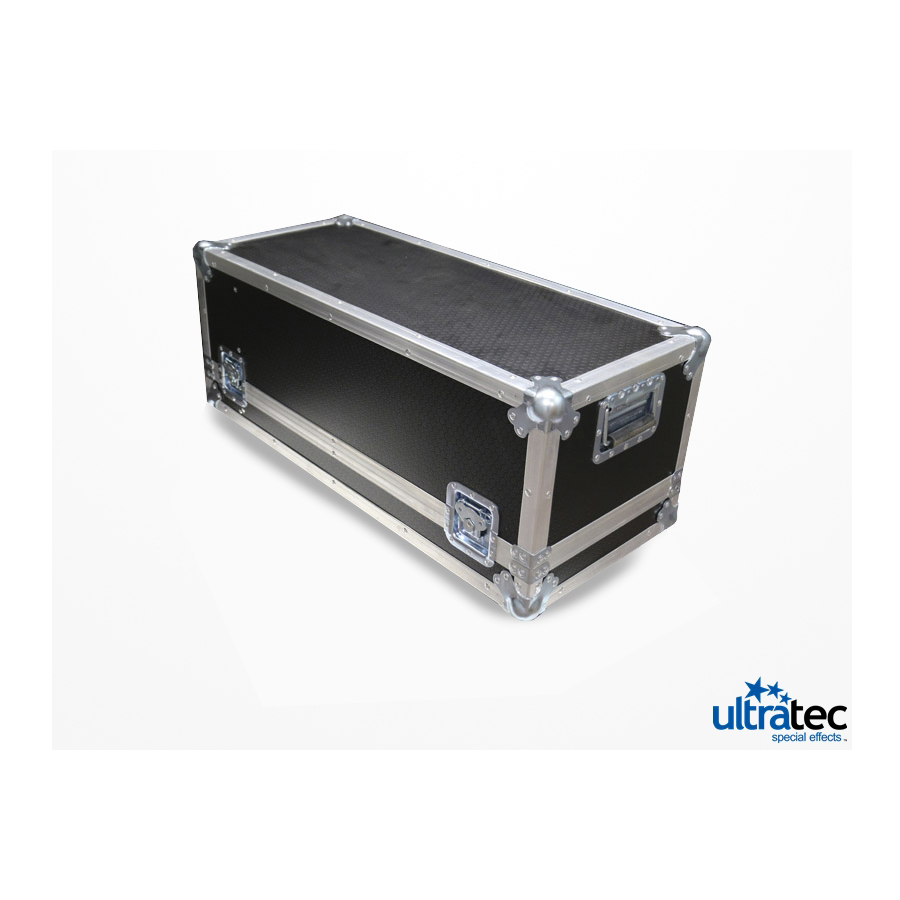

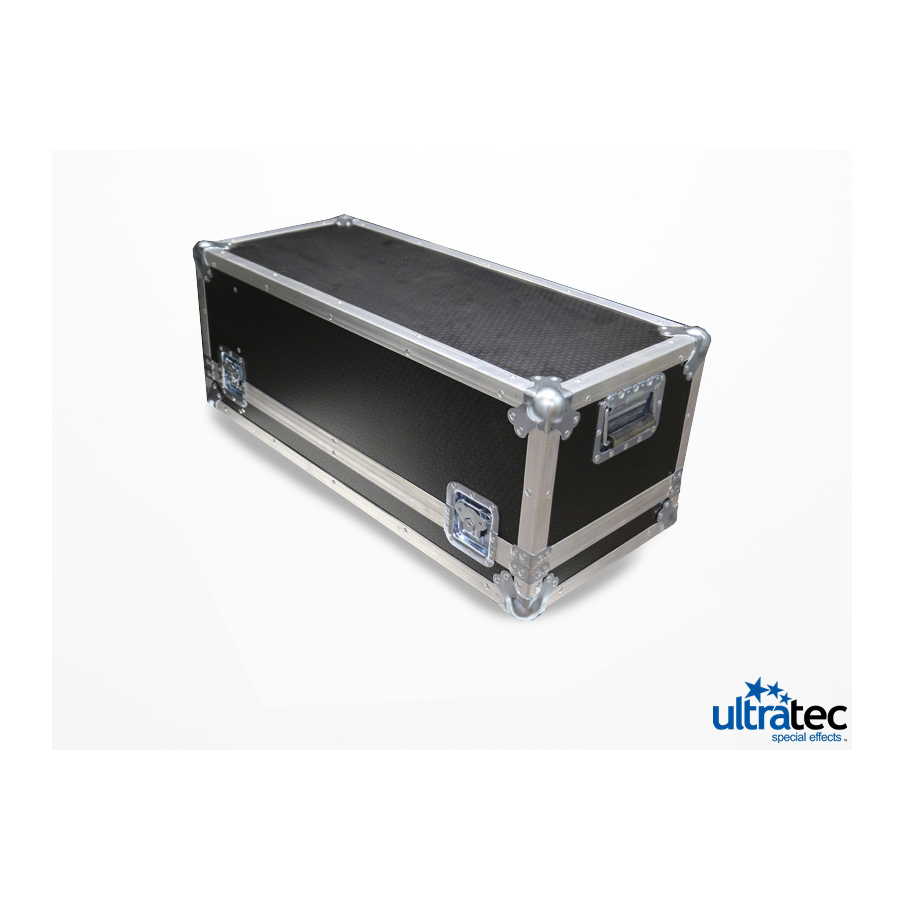

G3000 Standard Road Case CLF-2836 G3000 Standard Road Case €0.00

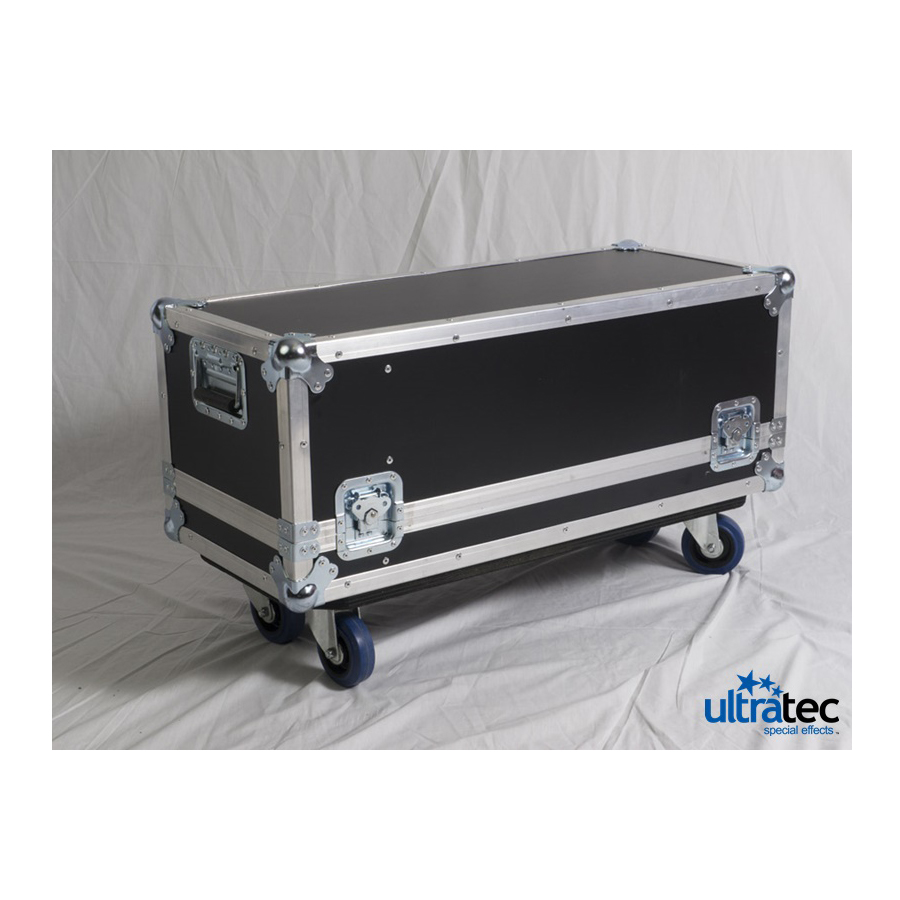

G3000 Deluxe Road Case w/Casters CLF-2833 G3000 Deluxe Road Case w/Casters €977.55

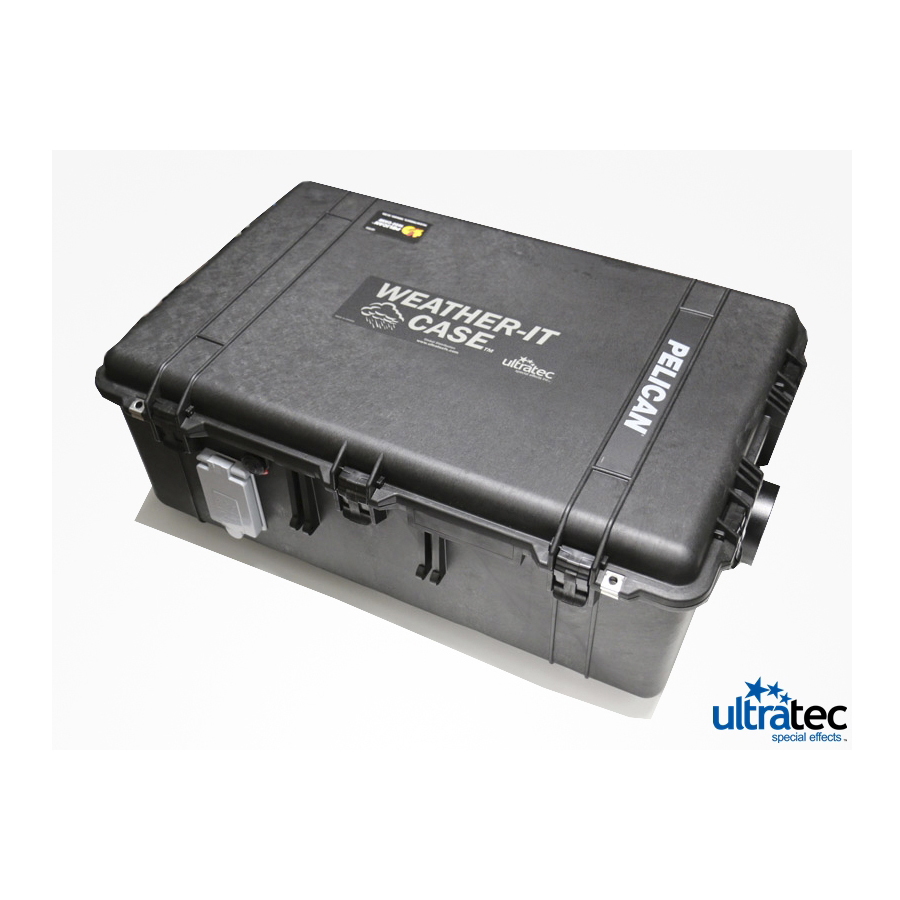

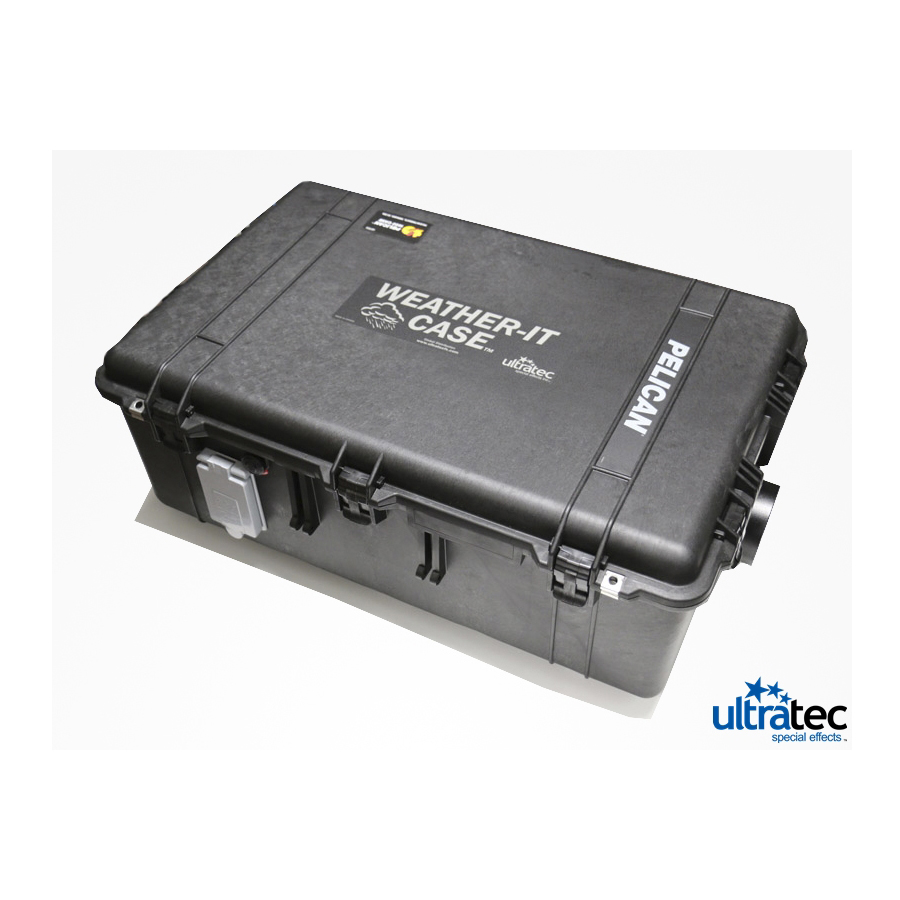

Weather-It Case - G3000 CLF-2821 Weather-It Case - G3000 €1,097.88

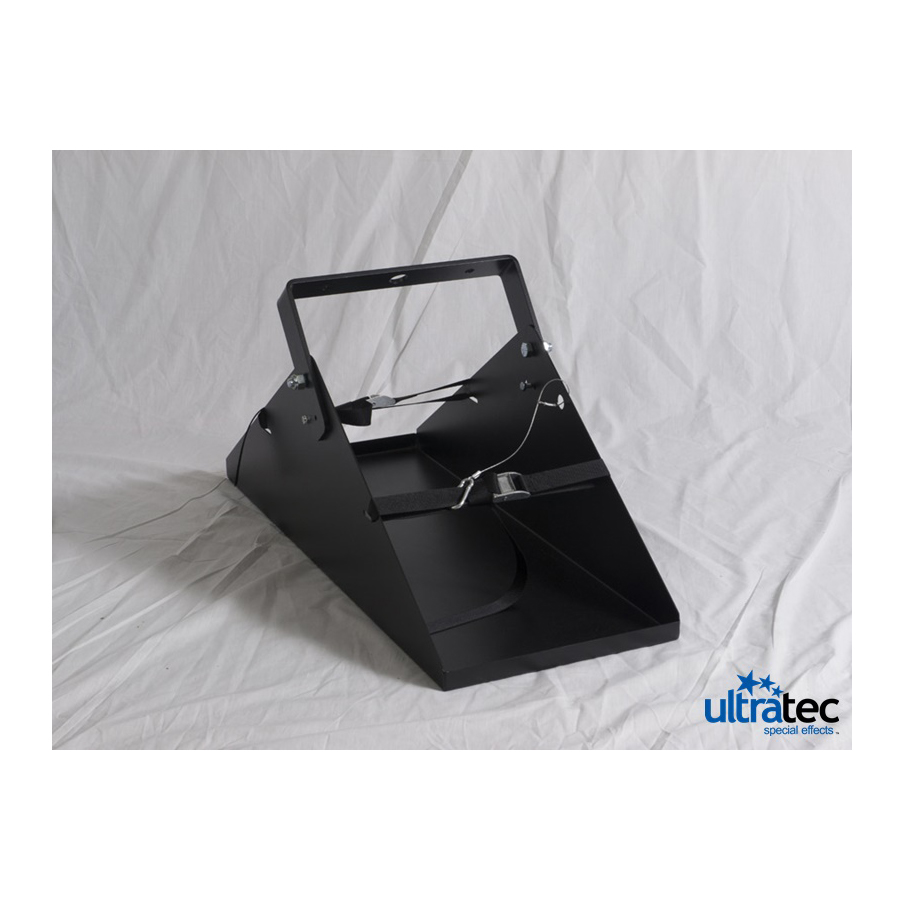

Universal Truss Bracket Heavy Duty CLF-2787 Universal Truss Bracket Heavy Duty €571.48
10.16 cm Fog Non-insulated Flex Hose 7.62 m CLF-2955 10.16 cm Fog Non-insulated Flex Hose 7.62 m €320.60

Features

  • 2000 Watt Dual Core Heating Block
  • LSG Compatibility
  • Electronic Low Fluid Detection
  • Continuous Output
  • Fully Functional Digital Back lit Remote
  • Rapid Change Technology
  • Stainless Steel Body
  • Heavy Duty Comfortable Handles
  • One-Gallon Jug Holder

Output

Run Time: Continuous
Reheat Time: 12 minutes
Fluid Consumption: Burst - 320 cc/ min. - Continuous - 80 cc/ min.
Technical Benchmark Spec.: Continuous - 22,400 cfm @ 1 meter visibility;

Burst - 5,600 cfm @ 1 meter visibility

Competitive Comparison: 40,000 cfm

Specifications

Length: 25 in / 64 cm
Width: 11 in / 28 cm
Height: 11 in / 27 cm
Net Weight: 41 lbs / 18.6 kg
Power Cord: 6 ft - 1.8 m
Heater Watts: 2000 w
Rating: 120 Volt A.C. 50/60 Hz. 17 Amps.
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLF-3003 G3000 Fog Machine 220V 29 in - 74 cm 13 in - 33 cm 13 in - 33 cm 49 lbs - 22 kgs
CLF-3004 G3000 Fog Machine 220V w/Ind'l Option 29 in - 74 cm 13 in - 33 cm 13 in - 33 cm 52 lbs - 24 kgs
CLF-3006 G3000 Fog Machine 220V w/Air Option 29 in - 74 cm 13 in - 33 cm 13 in - 33 cm 53 lbs - 24 kgs

Parts Identification Blowout Sheets

G3000 Fog Effects Generator Parts Identification Blowout Sheet R-A:

View

G3000 Fog Effects Generator Heater Block Blowout R-A:

View

G3000 Fog Generator Block Exploded-Rev-B:

View

Air Option-Exploded-R-A:

View

G3000 Fog Generator Exploded-Rev-old:

View

G3000 Fog Generator Exploded-Rev-B:

View

G3000 Fog Generator Exploded-Rev-C:

View

Wiring Diagrams

G3000 Fog Effects Generator Thermal Bulb 2013 R-A:

View

G3000 Fog Effects Generator Installation -- Wiring Photo for Part # CXP3002 R-A:

View

G3000 Fog Effects Generator Installation - wiring schematics for Part CXP3002 (G3000 2010) R-A:

View

G3000 Fog Effects Generator Installation - wiring schematics for Part CXP3002 (G3000 Nov 2009) R-A:

View

Service Photos

CXP4005 - New Thermal Couple Installation:

View

G3000 Block and Pump area:

View

G3000 Exterior:

View

G3000 Exterior Nozzle:

View

G3000 Interior Rear - Inputs:

View

G3000 Jug Compartment:

View

Parts

Product List
CLF-3010 G3000 Rapid Tube Replacement Kit €101.80
CXP-1046 Show/Stage/G3000 10.16 cm Hose Adapter €0.00
CXP-1257 #12 x 5.08 cm Pan Phillip Screw €0.00
CXP-1266 Qucik Change Top Wear Plate 15.24 x 12.7 cm €0.00
CXP-1268 0.953 cm Flat Washer €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1376 14 AWG 125C Braided Wire Black €5.18
CXP-1377 14 AWG 125C Braided Wire White €5.18
CXP-1378 18 AWG Stranded Wire Red €1.04
CXP-2010 0.5 Amp Fuse 3.175 cm €0.00
CXP-2227 NEW Thermal Disc W/Wires & Rivets (Fog/Haze) €0.00
CXP-2429 0.476 cm Sleeve - North American €0.00
CXP-2430 0.476 cm Nut - North American €0.00
CXP-2431 0.476 cm Pump Elbow Male - North American €0.00
CXP-2475 Heater Triac €30.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-3000 Power Relay (New Thermal Disk) €0.00
CXP-3040 Illuminated Power Switch €0.00
CXP-4005 New Thermocouple Assembly €75.60
CXP-4197 Grey Neutrik Male Chassis Power Out €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-4211 Chip - 8-Pin DMX Serial €0.00
CXP-4212 G3000 Remote LCD €0.00
CXP-4215 G3000 Fuse Holder €0.00
CXP-4216 G3000 Silicone Hose 1/4 ID x 3/8" €9.24
CXP-4217 3 Pole Spring Terminal Block €0.00
CXP-4219 G3000 Power Block 4 Pole €0.00
CXP-4222 G3000 FUSE 0.635 X 1.905 cm 20 amp €0.00
CXP-4223 G3000 Rubber Feet €0.00
CXP-4224 G3000 Cartridge Heater 120V €0.00
CXP-4225 G3000 Main Control Board €0.00
CXP-4226 G3000 Block Lid €0.00
CXP-4227 G3000 Block Case €0.00
CXP-4228 G3000 Transformer 220V €0.00
CXP-4229 G3000 Rapid Change Bottom Plate €0.00
CXP-4230 G3000 Remote Board €0.00
CXP-4231 Quick Change Aluminium Top Plate 0.635 cm €0.00
CXP-4232 G3000 Remote Button Pad Label €0.00
CXP-4233 G3000 Main PCB Wire Harness €0.00
CXP-4234 G3000 DMX PCB Wire Harness €0.00
CXP-4235 G3000 DMX Board €0.00
CXP-4236 G3000 Chassis Lid €0.00
CXP-4238 G3000 Machine Handle €0.00
CXP-4239 Anti Warp Plate for Block €0.00
CXP-4241 G3000 Block Insulation Kit €0.00
CXP-4242 G3000 Fluid Sensor €266.25
CXP-4243 G3000 0.635 X 0.635 cm Plastic Wye €0.00
CXP-4244 G3000 2.54 cm Aluminium Block €0.00
CXP-4245 G3000 Black Hose Cover €0.00
CXP-4246 G3000 Black Hose End Straight €0.00
CXP-4247 G3000 Black Hose 90* Angle Hose End €0.00
CXP-4252 G3000 Fluid Sensor Holder €19.69
CXP-4253 10-24 x 1.27 cm S/S Machine Screws €0.00
CXP-4254 0.635 x 1.27 cm Bolt (Blocks) €0.28
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4257 G3000 Fuse Clips €0.00
CXP-4258 Pump Bracket Flat w/Rubbers €0.00
CXP-4260 Industrial Check Valve €0.00
CXP-4262 G3000 Transformer Bracket €0.00
CXP-4265 Chip - G3000 Remote Processor V2.70 €0.00
CXP-4270 Chip - G3000 DMX Processor V1.60 €0.00
CXP-4275 Chip - G3000 Control Processor V2.60 €0.00
CXP-4276 G3000 Plastic Strain Relief €0.84
CXP-4290 Industrial Filter Check Valve €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6000 12(4mm) Mains Cable €4.20
CXP-7500 Capillary Thermostat Assembly €78.40
