LSX Low Smoke Converter

Models

Product List
CLF-2915 LSX Low Smoke Converter 220V €6,705.94

Features

  • Compact Size
  • High Durability
  • Low Noise
  • Automatic Operation
  • All Steel Shell
  • Power Status LED
  • Four Heavy-Duty Casters
  • Powder Paint Black Finish

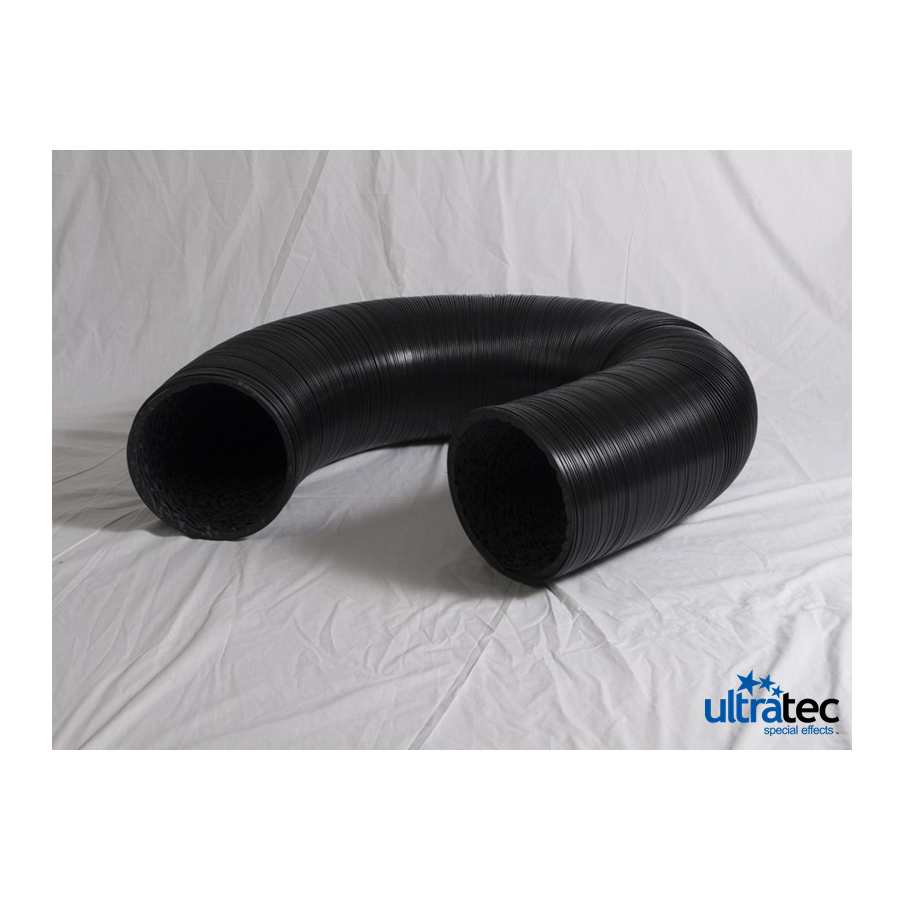

  • 1-8" Hose Output

Output

Run Time: Continuous
Reheat Time: 12-15 minutes

Specifications

Length: 24 in / 61 cm
Width: 24 in / 61 cm
Height: 28 in / 71 cm
Net Weight: 150 lbs / 68 kgs
Power Cord: 6 ft - 1.8 m
Rating: 12 amps @ 110 volts @ 60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.


Shipping Specifications per Model

Model Length Width Height Weight
CLF-2915 LSX Low Smoke Converter 220V 48 in - 122 cm 48 in - 122 cm 36 in - 92 cm 320 lbs - 146.00 kgs

Service Photos

Fog Machine Cart Attachment:

View

LSX Panel View:

View

Outer View:

View

Parts

Product List
CXP-1044 3/8 Liquid Tight Fitting €0.00
CXP-1222 1.27 cm Plastic Strain Relief €3.94
CXP-1254 0.317 cm x 0.953 cm Aluminum Rivet €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1297 0.635 x 7.62 cm Round Combo Bolts B/O €0.00
CXP-1304 3/16" Flat Washer Black Oxide €1.40
CXP-2205 Dry Icer Heavy Duty Grommets €0.00
CXP-2608 Control Knob (Remote) €0.00
CXP-3005 LSX Dryer €0.00
CXP-3012 LSX Low Pressure Switch €0.00
CXP-3016 LSX Top Fan Motor €0.00
CXP-3018 LSX Top Fan Blade €0.00
CXP-3020 LSX Bottom Coil (Evaporator) €0.00
CXP-3022 LSX Top Coil (Condenser) €0.00
CXP-3024 LSX TX Valve €0.00
CXP-3028 LSX Capacitor €0.00
CXP-3030 LSX Relay €0.00
CXP-3032 LSX LED Green €0.00
CXP-3034 LSX LED Red €0.00
CXP-3036 LSX Lockable Castors €0.00
CXP-3038 LSX Non Lockable Castors €0.00
CXP-3040 Illuminated Power Switch €0.00
CXP-3044 MC3 Fan Speed Control 110V €27.19
CXP-3045 LSX Elbows €0.00
CXP-4034 MC3 Fan Speed Control 220V €45.94
CXP-4245 G3000 Black Hose Cover €0.00
