Dry Icer

The Dry Icer is a new and improved professional, cost effective solution for creating spectacular Low-Lying Fog Effects. This sleek new design has a 20 pound Dry Ice capacity which is placed in a stainless steel basket. Other new features are low water shut off Indicator, 4” hose adaptor and heavy duty latches on the lid. The Low-Lying Fog output is controlled by lowering the stainless steel basket with the 3 step pivoting ratchet system. This will allow the basket to ease into the boiling water to create continuous Low-Lying Fog for approximately 5 minutes.

The Dry Icer has our standard One-Year Warranty on all parts and service.



Models

Product List
CLF-1815 Dry Icer 220V €1,220.75

Accessories Gallery

Accessories

Product List
Dry Icer 10.16 cm Ducting Hose Adapter CLF-1850P Dry Icer 10.16 cm Ducting Hose Adapter €0.00

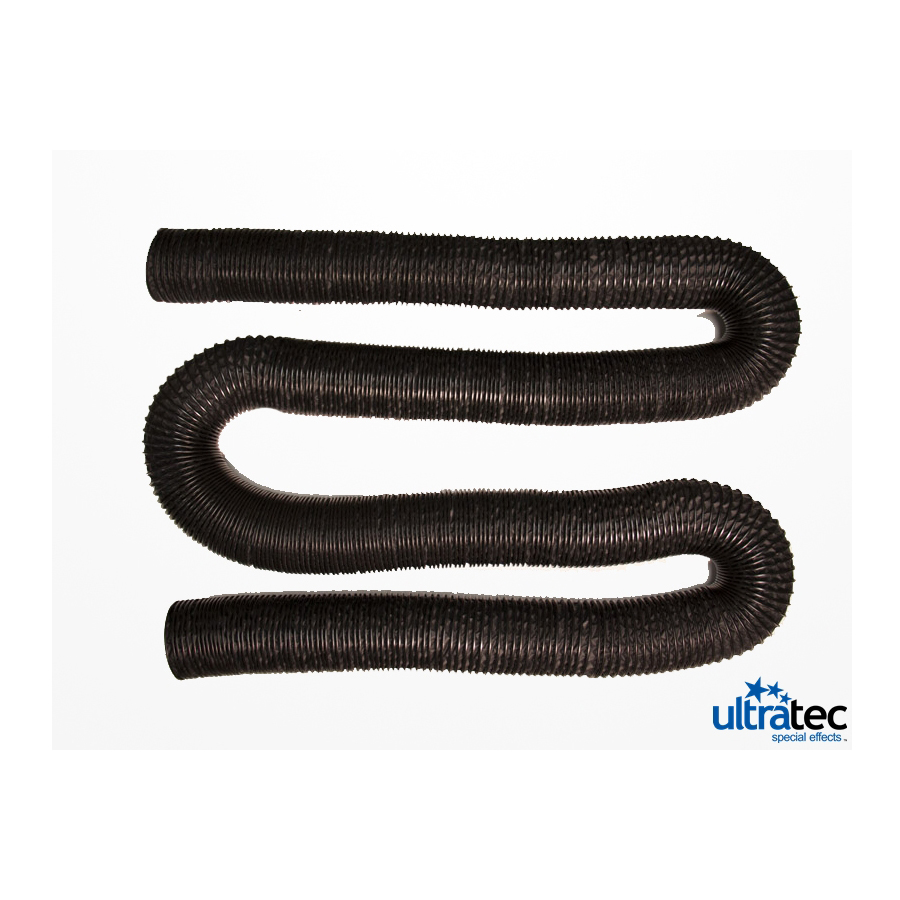

10.16 cm Fog Non-insulated Flex Hose 7.62 m CLF-2955 10.16 cm Fog Non-insulated Flex Hose 7.62 m €320.60

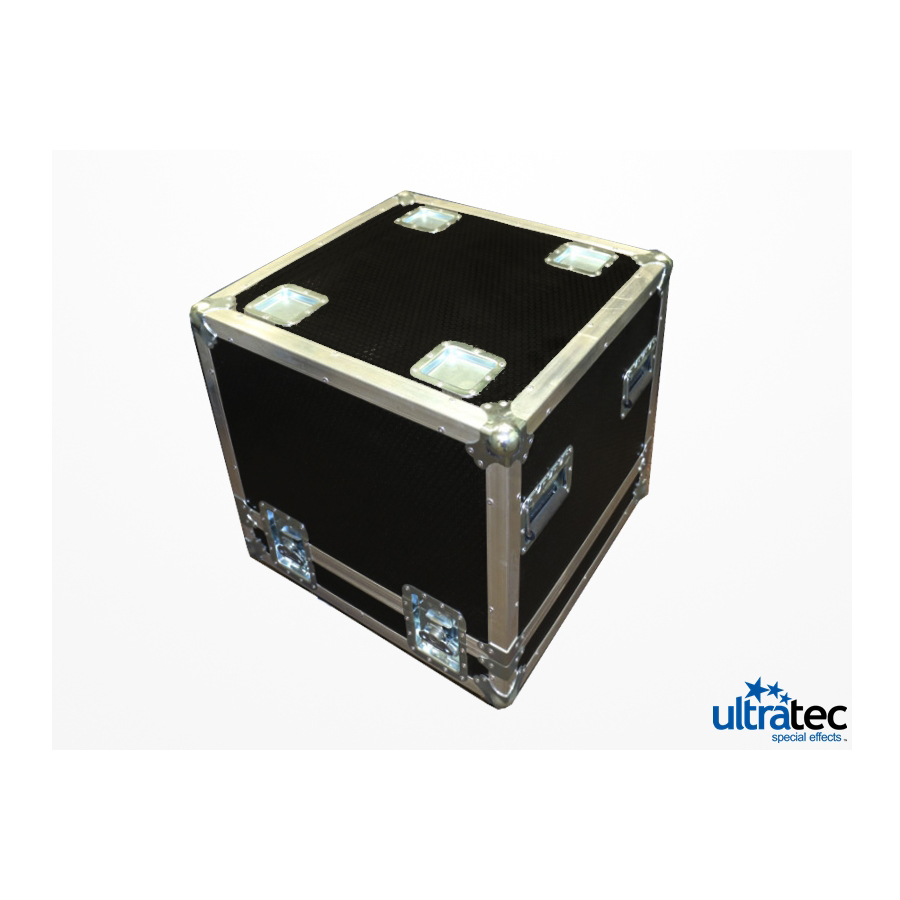

Dry Icer Road Case CLF-1820 Dry Icer Road Case €923.44

Output

Run Time: 20 lbs of CO2/5 minutes
Reheat Time: 1 hour

Specifications

Length: 21 in / 53 cm
Width: 20 in / 51 cm
Height: 19 in / 48 cm
Net Weight: 33 lbs / 16 kgs
Heater Watts: 1,500 Watts
Rating: 12.5 amps AC @ 120 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.


Shipping Specifications per Model

Model Length Width Height Weight
CLF-1815 Dry Icer 220V 22 in - 56 cm 20 in - 51 cm 20 in - 51 cm 39 lbs - 18 kgs

Parts Identification Blowout Sheets

Dry Icer Exploded-Rev-B:

View

Service Photos

Additional Part:

View

Front View:

View

Internal Dry Ice Basket:

View

Internal View:

View

Rear View:

View

Removable Lid:

View

Side View:

View

Side View 2:

View

Top View:

View

Parts

Product List
CLF-1850P Dry Icer 10.16 cm Ducting Hose Adapter €0.00
CXP-1222 1.27 cm Plastic Strain Relief €3.94
CXP-1239 12.7 cm Aluminum Handle 9D/Dry Icer €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1290 Standard Terminal Block 3-Wire €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-2198 Dry Icer Element Only 220V €50.63
CXP-2204 Dry Icer Body Only €0.00
CXP-2205 Dry Icer Heavy Duty Grommets €0.00
CXP-2206 Dry Icer Basket Stainless Steel €0.00
CXP-2207 Dry Icer Lid Assembly €0.00
CXP-2208 Dry Icer Lid Gasket Foam €0.00
CXP-2209 Dry Icer Lid Handle €0.00
CXP-2210 Dry Icer Basket Holder €0.00
CXP-2211 Dry Icer Float w/Rod €0.00
CXP-2218 Dry Icer Heater Kit 220V €187.50
CXP-2220 Dry Icer Microswitch €0.00
CXP-2225 Dry Icer Foam Grip €0.00
CXP-2230 Dry Icer Element Gasket Kit €0.00
CXP-3034 LSX LED Red €0.00
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4257 G3000 Fuse Clips €0.00
CXP-4286 1/4" Flat Washer €0.21
CXP-4288 1/4" Standard Nut €0.21
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
