LSG PFI-9D System w/ Road Case

When you require superior performance for your Low-Lying Fog needs, you can count on Ultratec Special Effects to deliver “The Real Thing” which is the Low Smoke Generator and is also known as the LSG around the world. Historically, Low-Lying Fog has been a challenge for designers who work in theatrical productions, sporting events, theme parks or touring with shows. Ultratec Special Effects is the Pioneer of the CO2 powered LSG Systems and this has been proven as we offer many different versions in order for the designers to deliver a reliable effect or a solution for the customers. Our continuous dedication to Low-Lying Fog has revolutionized once again with our latest LSG Systems using our NEW Power Fog Industrial 9D Fog Machine. This new packaging allows for acquiring a system easier, very cost effective and smaller in overall size.

The photo shown is the Road Case Version; simply remove the rear cover and all of the necessary components are ready for operation. This is a simple and small package, making touring or renting a snap.

The LSG PFI-9D System w/Road Case has our standard One-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.

Models

Product List
CLF-4422 LSG Low PFI-9D System w/Road Case 220V €7,827.05
CLF-4427 LSG High PFI-9D System w/Road Case 220V €7,827.05
CLF-4424 LSG Combo PFI-9D System w/Road Case 220V €8,260.25
CLF-4428 LSG High Power Low Pressure PFI-9D System w/Road Case 220V €8,400.94

Accessories Gallery

Accessories

Product List

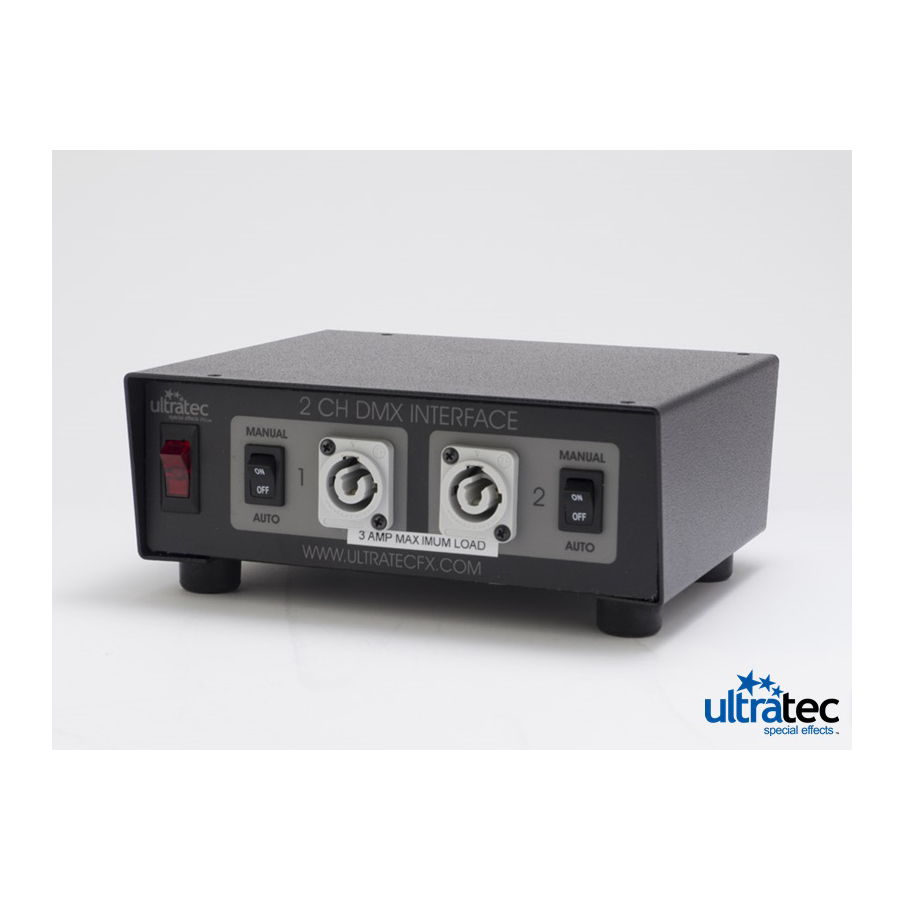

LSG DMX Interface 220V CLF-2943 LSG DMX Interface 220V €584.25

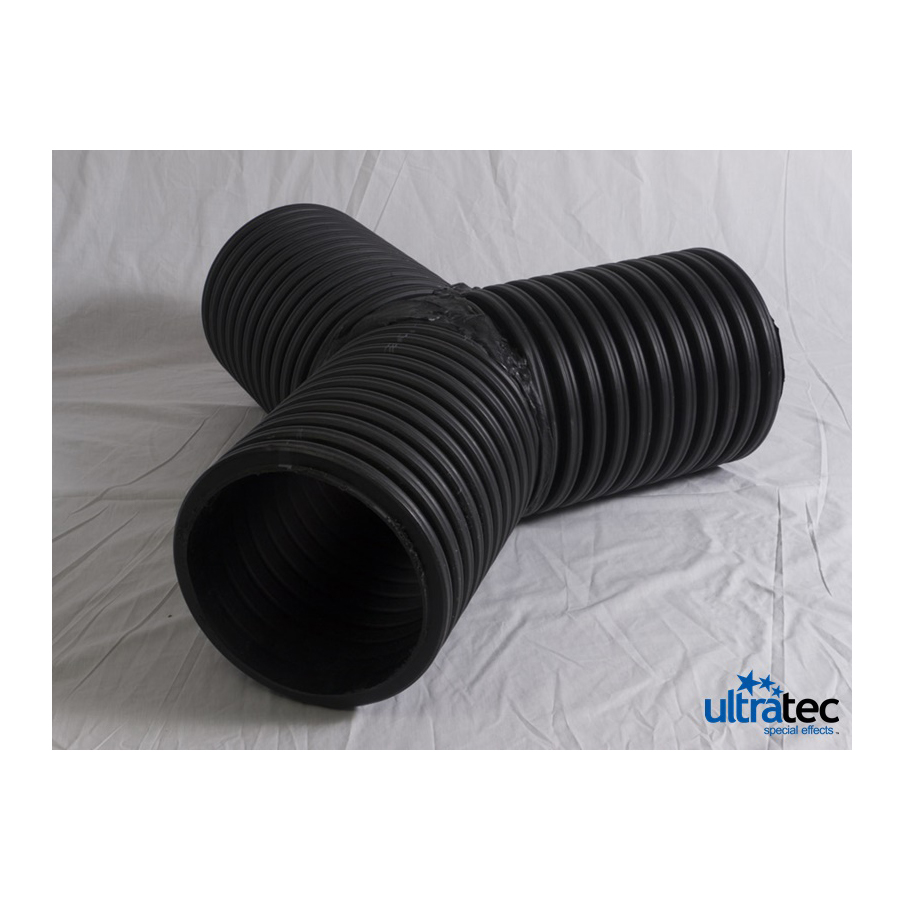

LSG Y-Splitter 25.4 cm x 2-25.4 cm CLF-2949 LSG Y-Splitter 25.4 cm x 2-25.4 cm €440.33

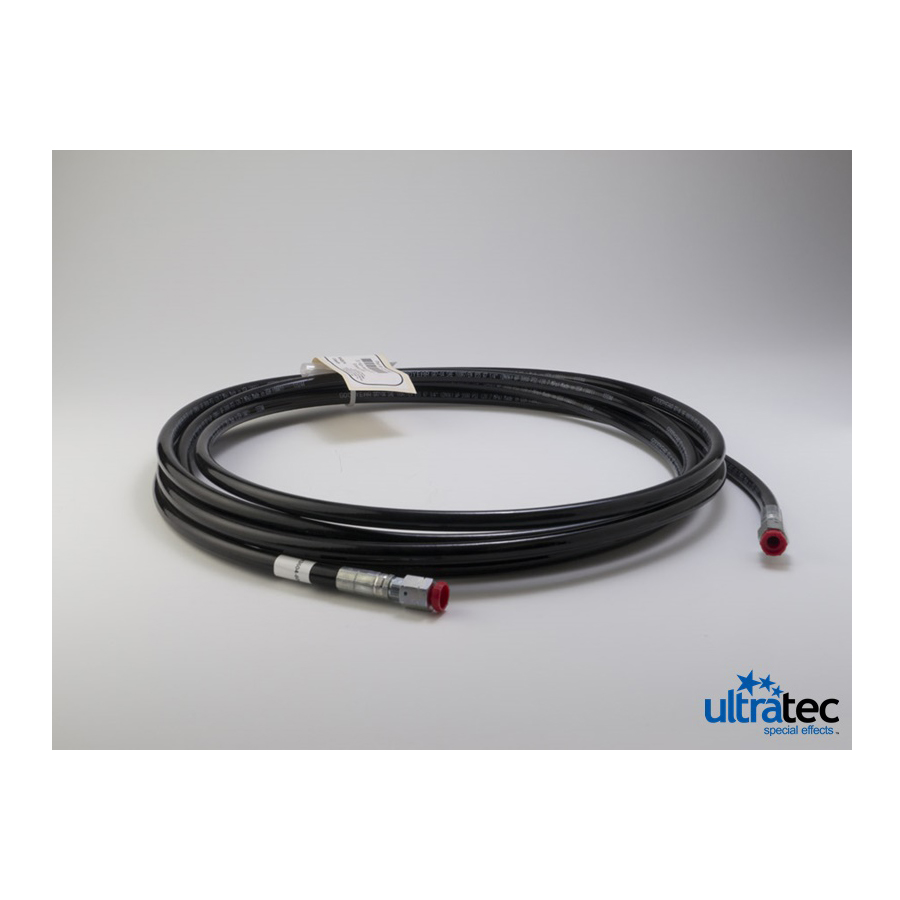

6.096 m High Pressure CO2 Extension Hose CLF-2952 6.096 m High Pressure CO2 Extension Hose €166.35

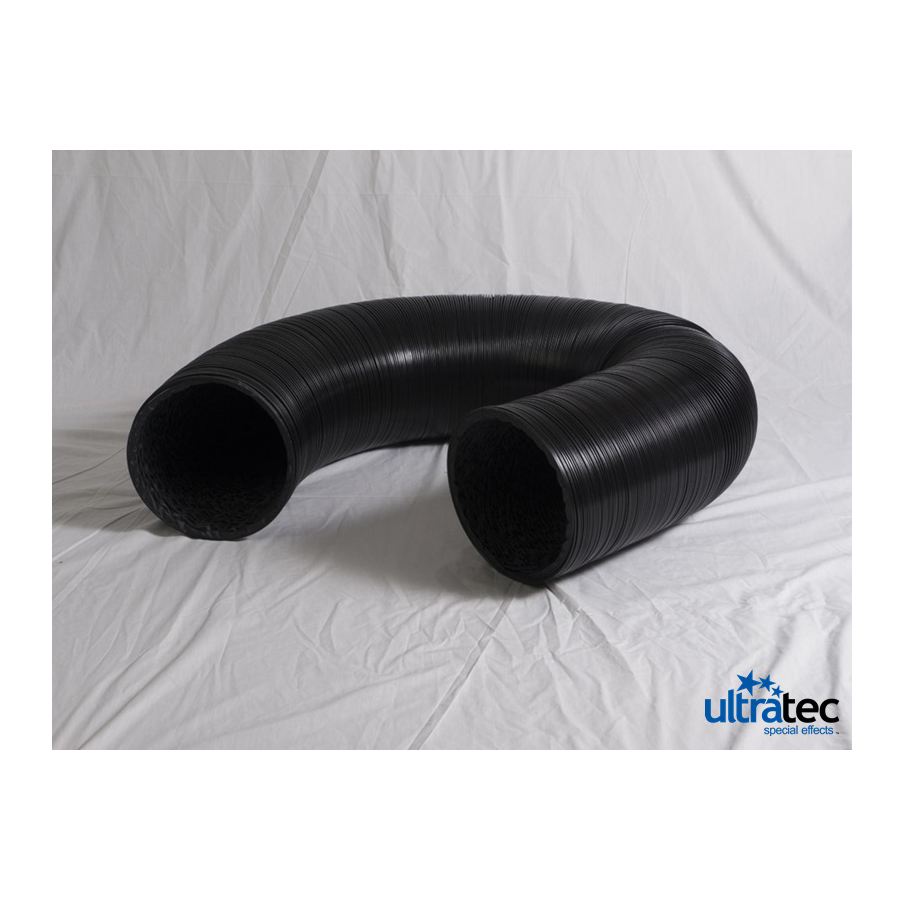

LSG Uninsulated 25.4 cm Hose 7.62 m CLF-2956 LSG Uninsulated 25.4 cm Hose 7.62 m €655.60

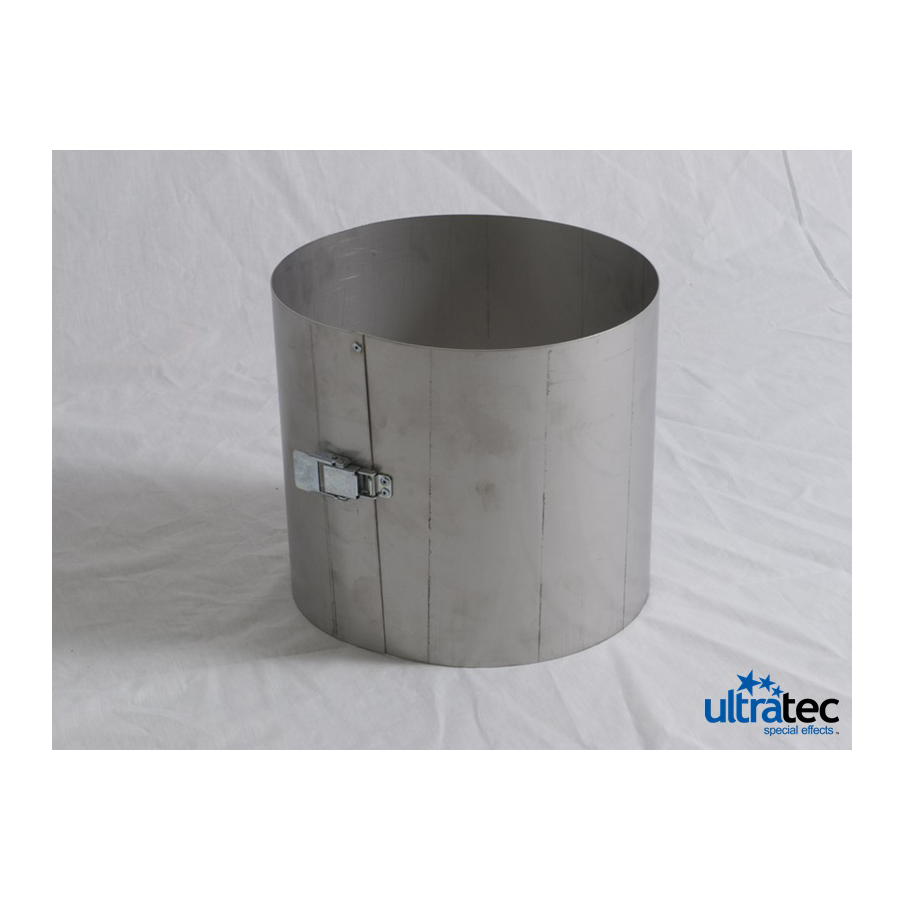

LSG Flex Hose Adapter S.S. CLF-2957 LSG Flex Hose Adapter S.S. €137.28

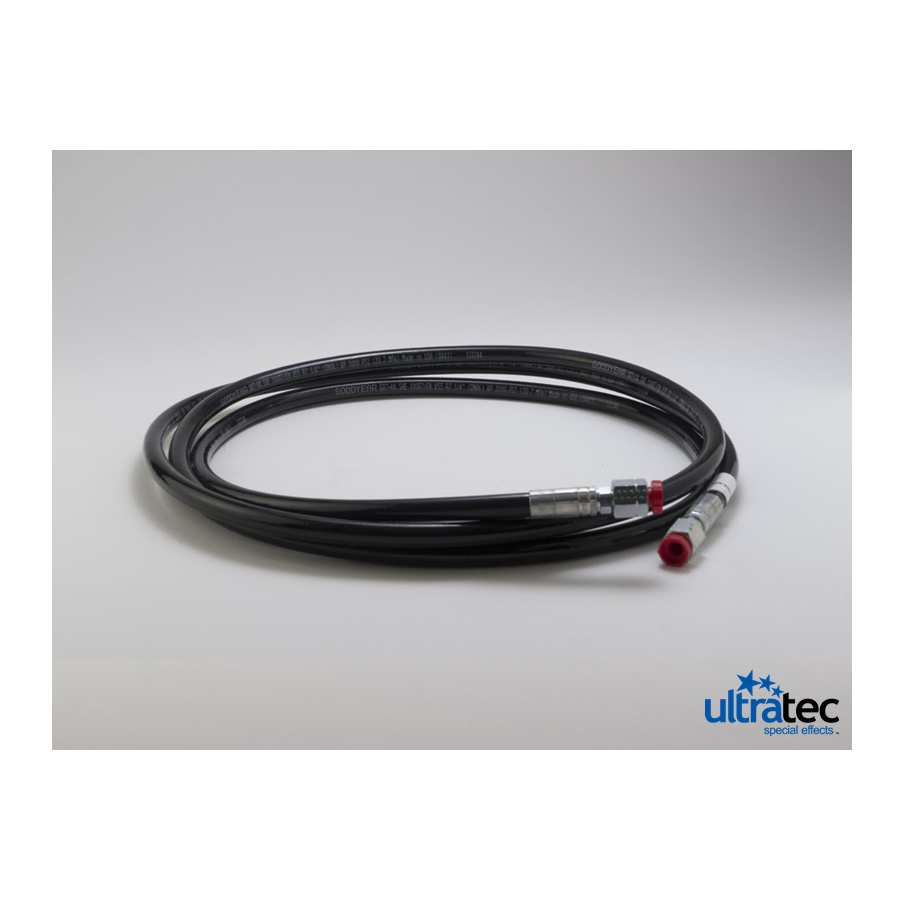

3.048 m High Pressure CO2 Extension Hose CLF-2967 3.048 m High Pressure CO2 Extension Hose €113.53

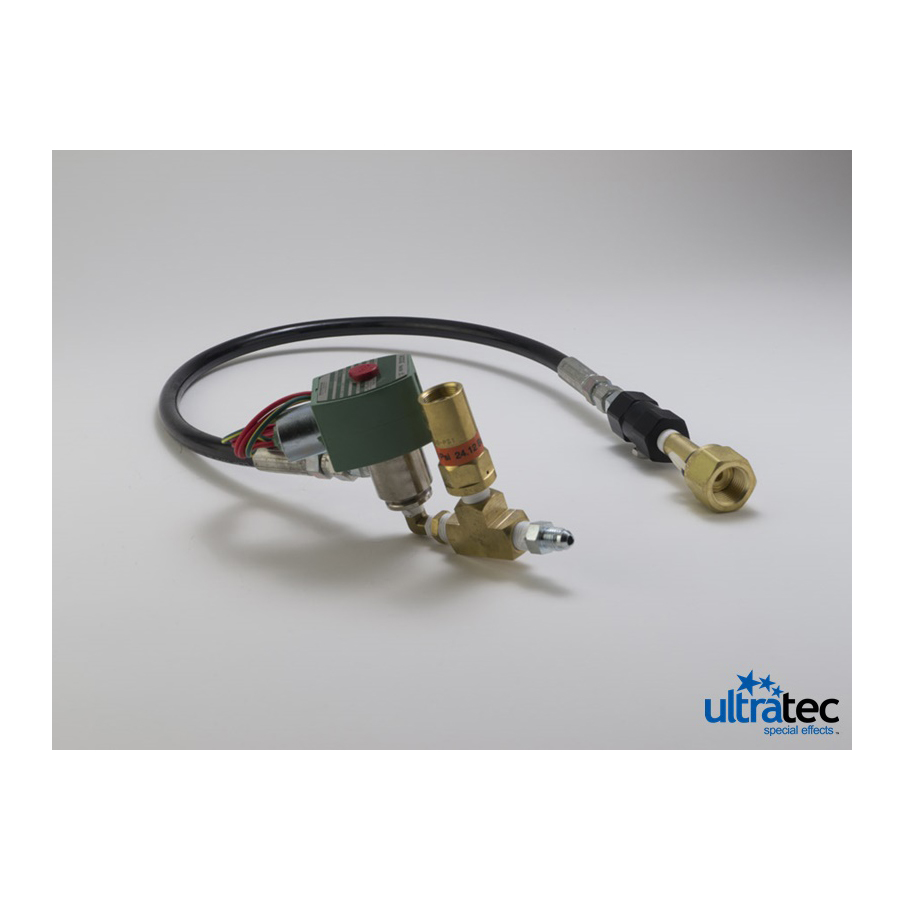

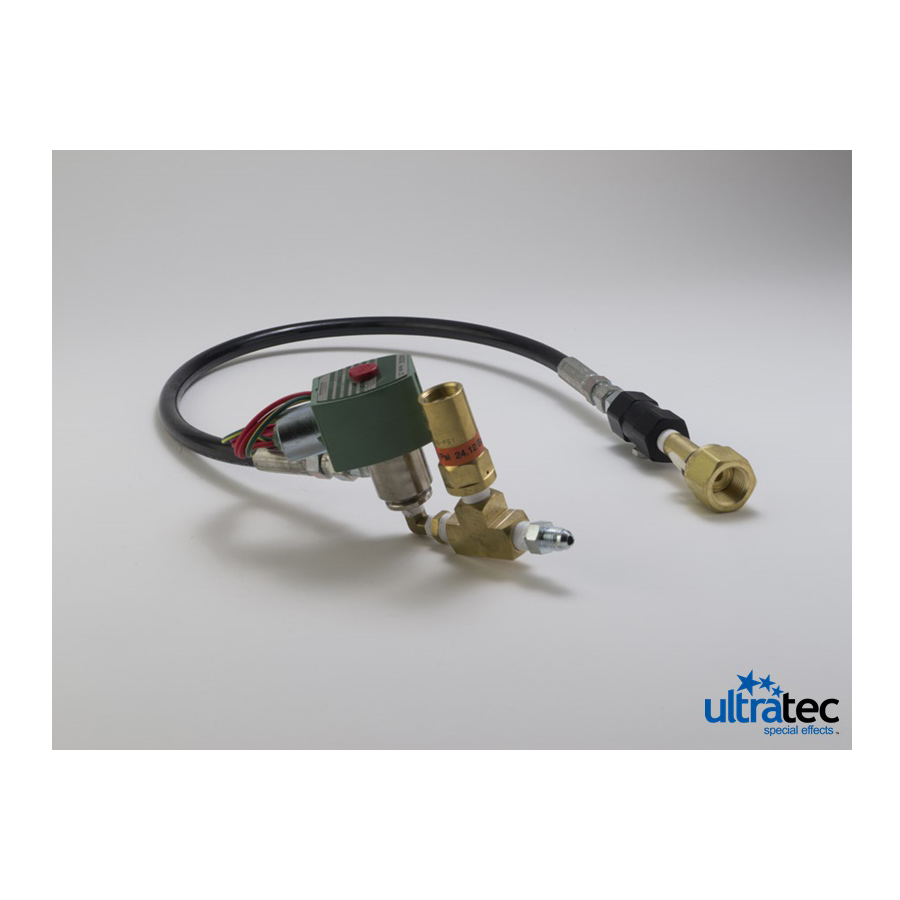

CO2 Valve w/Relief 110V CLF-4001 CO2 Valve w/Relief 110V €876.80

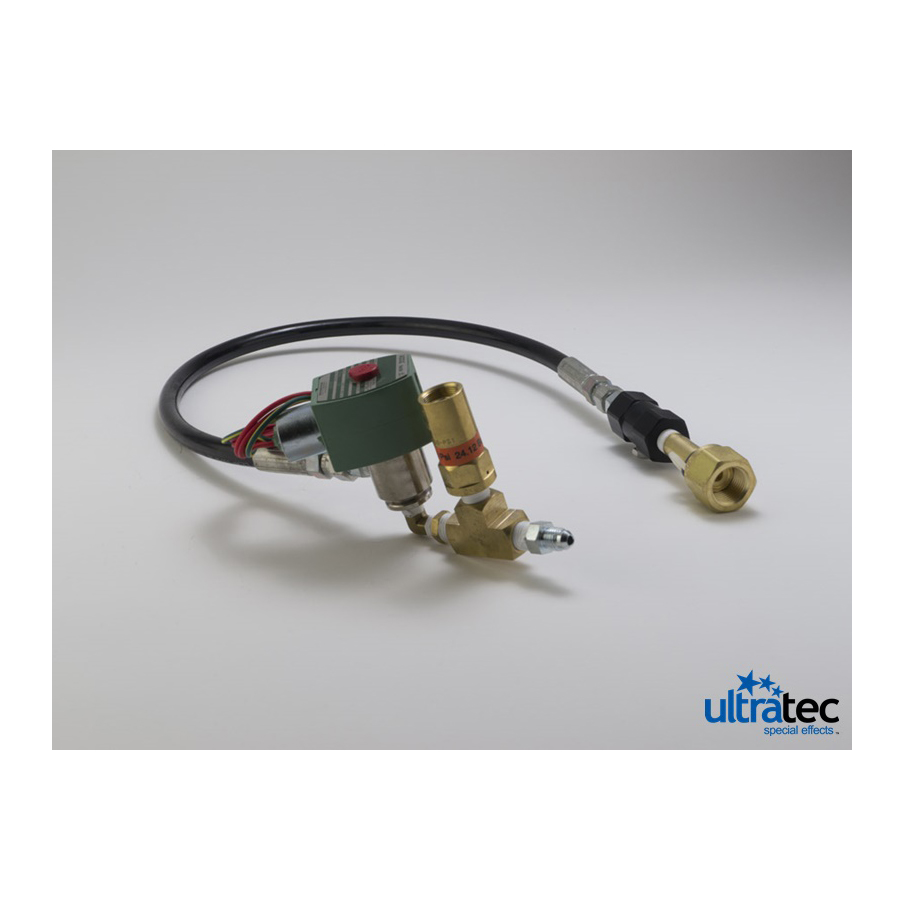

CO2 Valve w/Relief 220V CLF-4002 CO2 Valve w/Relief 220V €888.49

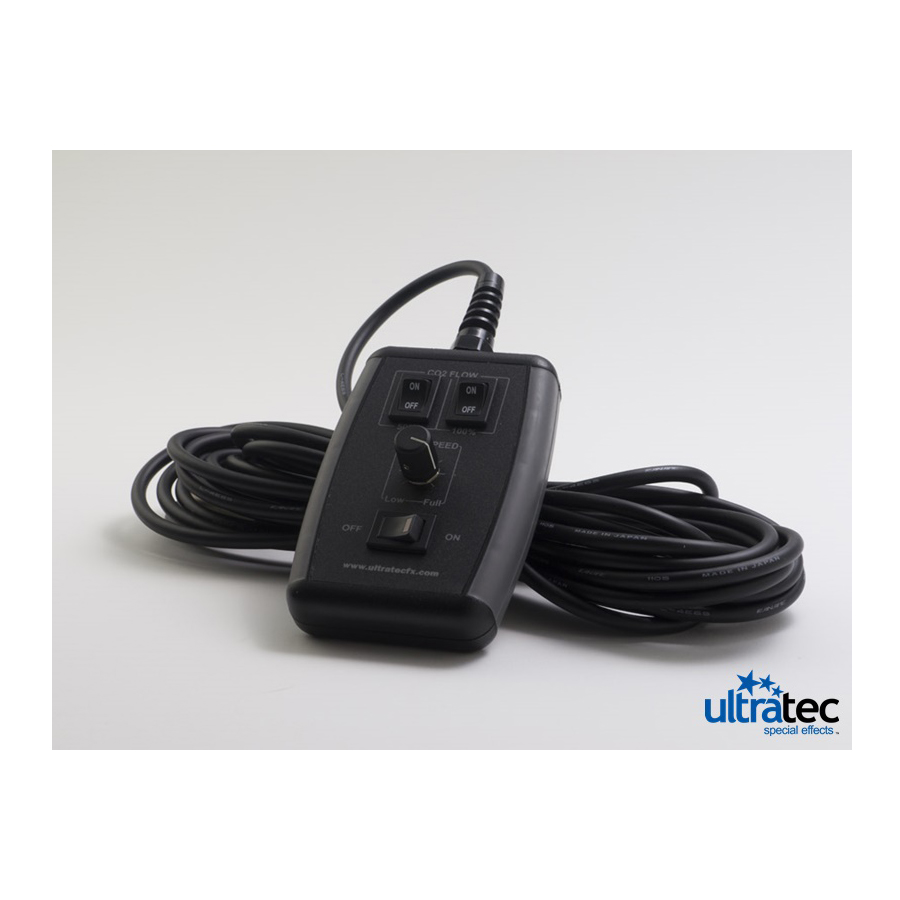

LSG High Power Remote CLF-4015 LSG High Power Remote €166.35

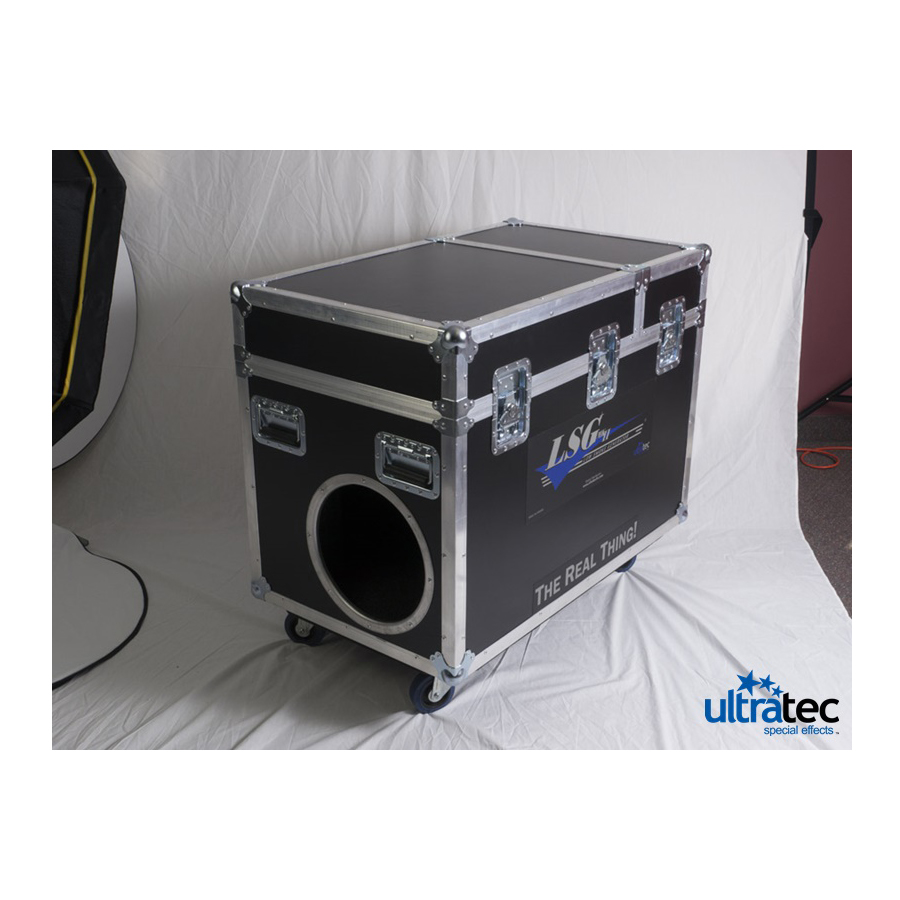

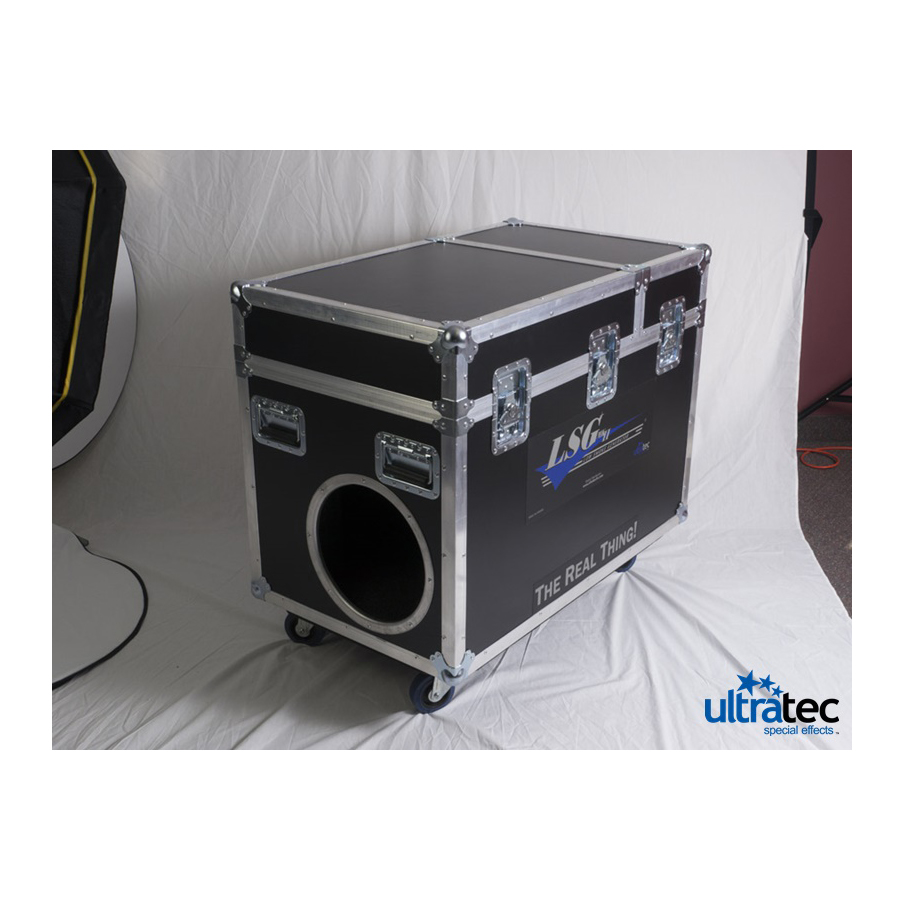

LSG 9D Power Fog Road Case CLF-4420 LSG 9D Power Fog Road Case €2,116.50

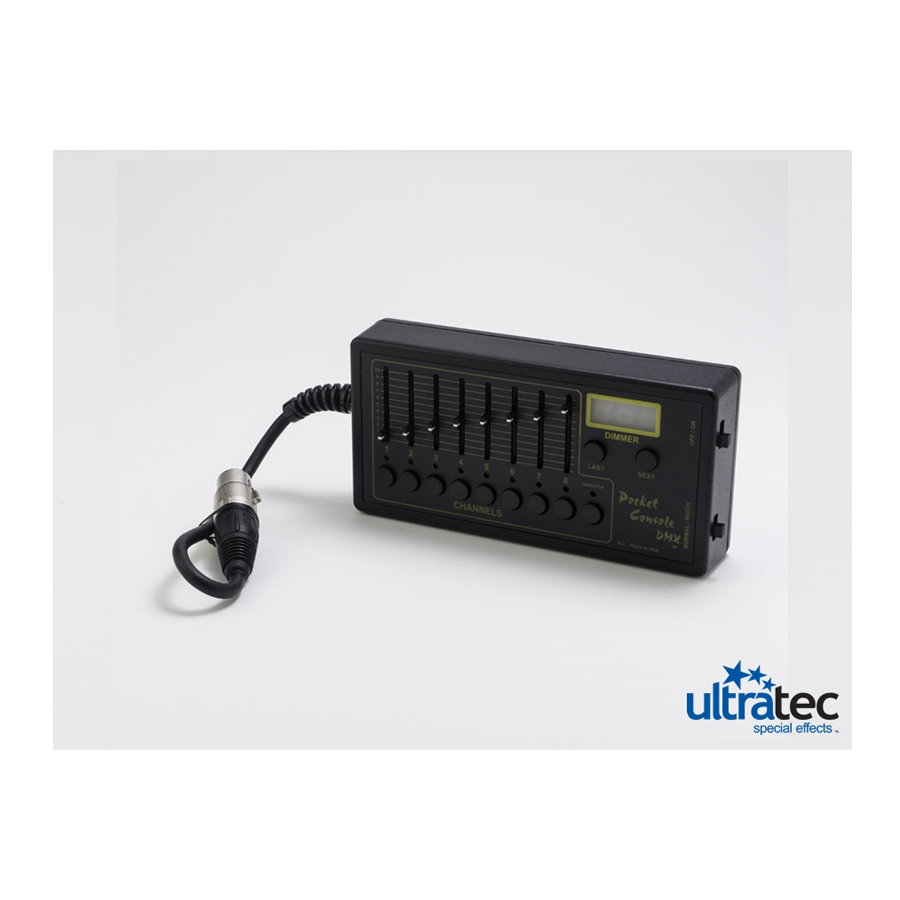

Pocket Console DMX CLF-4463 Pocket Console DMX €670.28

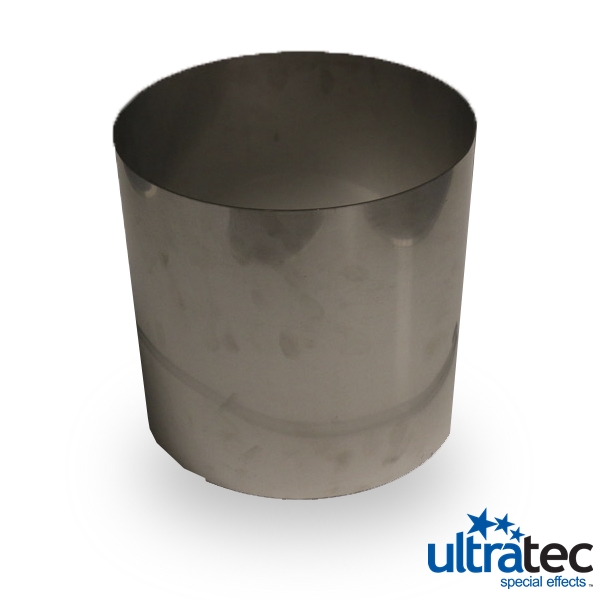

25.4 cm Flex to Rigid Adapter CLF-9033 25.4 cm Flex to Rigid Adapter €99.85

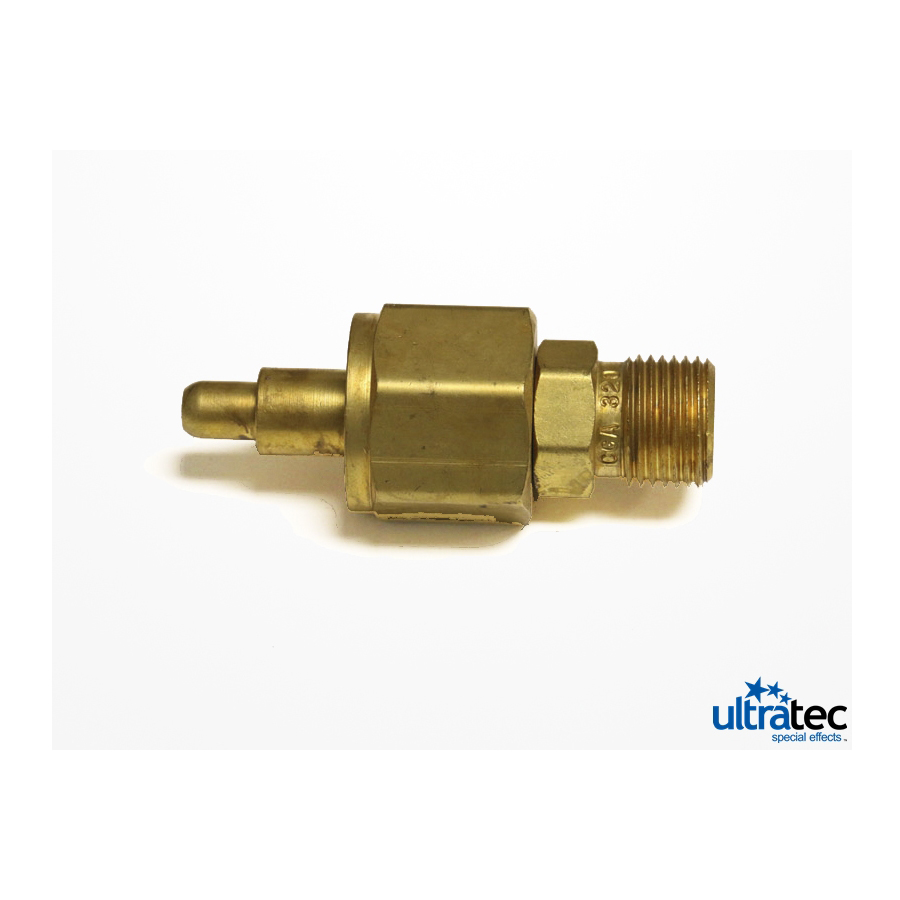

CO2 Adapter CGA 622 Female > CGA 320 Male CXP-2385 CO2 Adapter CGA 622 Female > CGA 320 Male €75.00

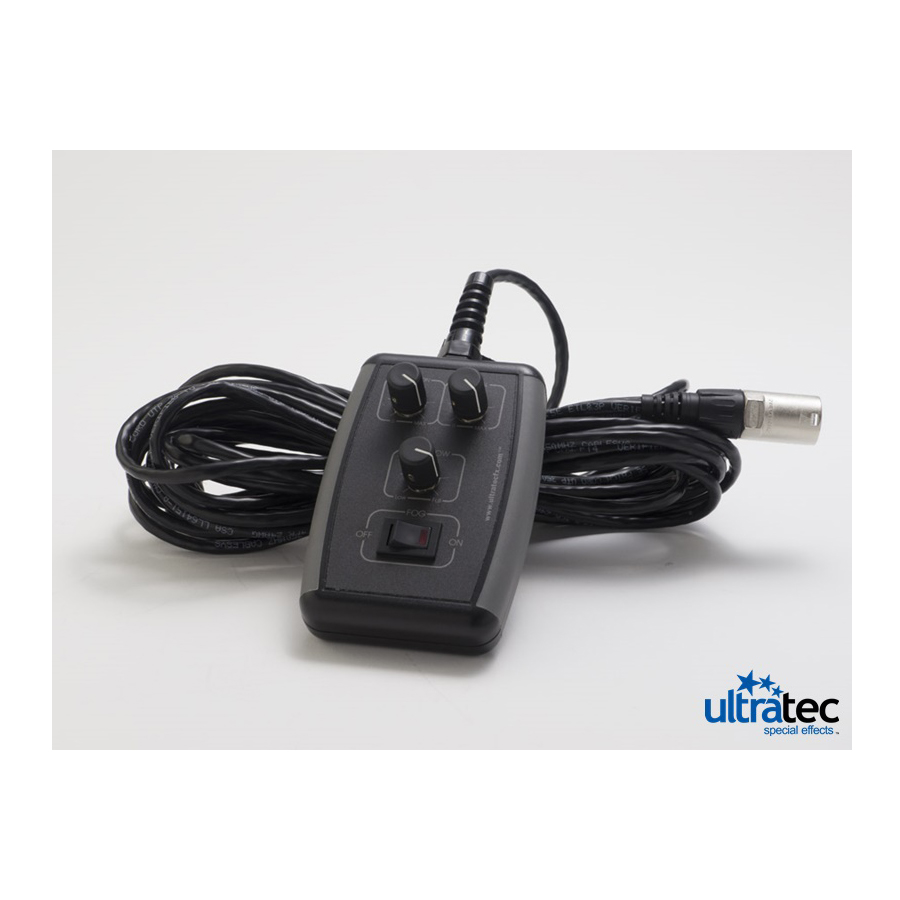

Power/Show/Stage Fogger Remote RJ45 CXP-4139 Power/Show/Stage Fogger Remote RJ45 €136.99

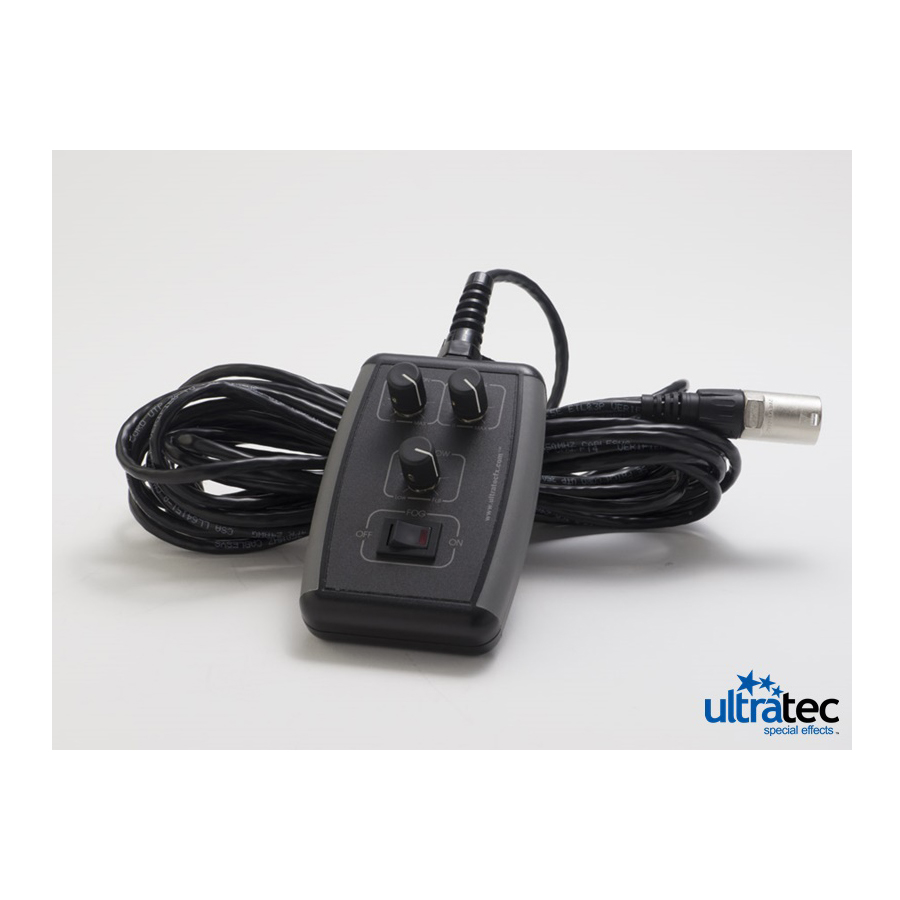

Power/Show/Stage Fogger Remote 5-PIN CXP-41395PIN Power/Show/Stage Fogger Remote 5-PIN €200.60

Features

  • Smaller Overall Size
  • Uses the Power Fog Industrial 9D
  • DMX Control Direct from the Power Fog Industrial
  • Dry, White Water Based Effect
  • Patented CO2 Conditioning Process
  • Industry Standard CGA CO2 Fitting
  • 1 Gallon to 5 Gallon Fluid Containment
  • 4 Litre to 20 Litre Fluid Containment
  • Available in 110 & 220 volt
  • Available in Cart or Road Case Format
  • Optional Hanging Brackets Available
  • Available in:
  • Low Pressure CO2 Dewar Delivery
  • High Pressure CO2 (20lbs to 50lbs)
  • Combo Low and High CO2
  • High Power Low Pressure CO2 (Independent solenoid and fan control)

Output

Run Time: Continuous
Reheat Time: None
Fluid Consumption: Continuous - 57 cc/ min.
Technical Benchmark Spec.:

Continuous - 4,000 cfm @ 1 meter visibility;

Burst - 8,900 cfm @ 1 meter visibility

Competitive Comparison: 20,000cfm

Specifications

Length: 40 in / 102 cm
Width: 24 in / 61 cm
Height: 35 in / 89 cm
Power Cord: 6 ft - 1.8 m
Heater Watts: 1,400 Watts
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Specification Footnote: CO2 Usage

High Pressure - approx. 7.5 lbs./ Min.
Low Pressure - approx. 7.5 lbs./ Min.
High Power - approx. 15 lbs./Min.

Notes

CLF2956 - LSG Uninsulated 10" 25´ Hose
Material: Polyester
Coating: Neoprene
Temperature Range: -45F to 250F
Compression Ratio: 6:1

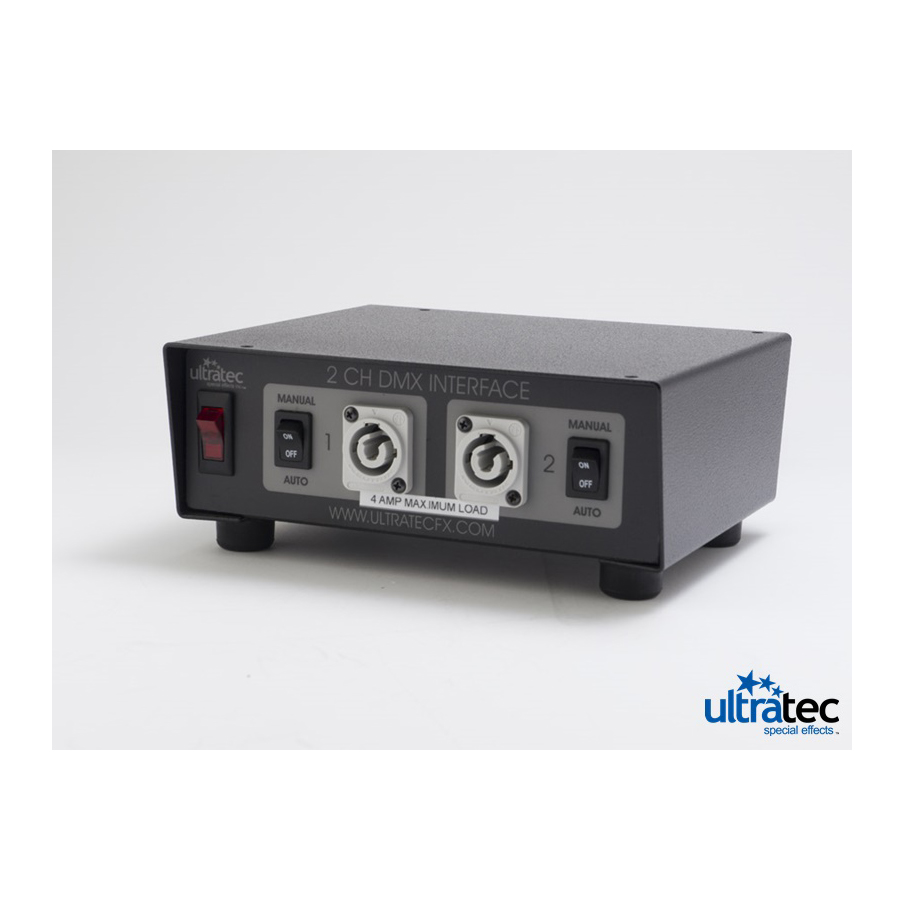

DMX Interface Box Accessory available for independent LSG ON/OFF Control only.

Shipping Specifications per Model

Model Length Width Height Weight
CLF-4422 LSG Low PFI-9D System w/Road Case 220V 48 in - 122 cm 48 in - 122 cm 40 in - 102 cm 230 lbs - 105 kgs
CLF-4427 LSG High PFI-9D System w/Road Case 220V 48 in - 122 cm 48 in - 122 cm 40 in - 102 cm 230 lbs - 105 kgs
CLF-4424 LSG Combo PFI-9D System w/Road Case 220V 48 in - 122 cm 48 in - 122 cm 40 in - 102 cm 230 lbs - 105 kgs
CLF-4428 LSG High Power Low Pressure PFI-9D System w/Road Case 220V 48 in - 122 cm 48 in - 122 cm 40 in - 102 cm 230 lbs - 105 kgs

Service Photos

LSG Fans & Valve for Low Pressure and High Pressure Systems:

View

LSG Internal 1:

View

LSG Internal 2:

View

LSG Tubing for Low Pressure and High Pressure Systems:

View

Parts

Product List
CLF-2942 LSG Multiflow Box 220V €0.00
CXP-1325 Chip - LSG HP Multiflow Box V2.07 5-Pin €0.00
CXP-1330 Chip - LSG HP Multiflow Box V2.06 5-Pin €0.00
CXP-1345 Chip - Universal Remote V0.33 5-Pin/RJ €0.00
CXP-2039 LSG Fan Finger Guard €0.00
CXP-2040 LSG MKII Fan 220V €0.00
CXP-2385 CO2 Adapter CGA 622 Female > CGA 320 Male €75.00
CXP-2391 CO2 Tee 4MJ x 4MJ x 4MJ €0.00
CXP-4098 LSG Foam Gasket €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-4211 Chip - 8-Pin DMX Serial €0.00
CXP-4503 LSG Washer €0.00
