Silent Storm DMX Snow Machine (w/ Variable Flow Remote)

Picture this - you have spent weeks preparing for that tranquil scene in your production, where snow falls gently on a dark winter´s night. The actors enter stage left; scenery and lighting has your audience captivated as they hang on the Heroine´s every word. The stage manager signals for a light dusting of snow and; along with a perfect finish to a visually convincing winter´s night, comes the sound of a jet engine - otherwise known as your snow machine.

Solution: The Silent Storm

Ultratec´s Silent Storm is a remarkably quiet snow machine with built-in 2-channel DMX for both fan speed and flow control. It boasts 70% more output than its predecessor and is taking the snow machine market by storm (silently we might add).

The Silent Storm comes with our standard One-Year Warranty on all parts and service.

Models

Product List
CLS-7150 Silent Storm DMX Snow Machine 220V (Remote Included) €1,075.40
CLS-7155 Silent Storm DMX Snow M/C 220V w/Indl Optn(Remote Included) €1,258.75

Accessories Gallery

Accessories

Product List

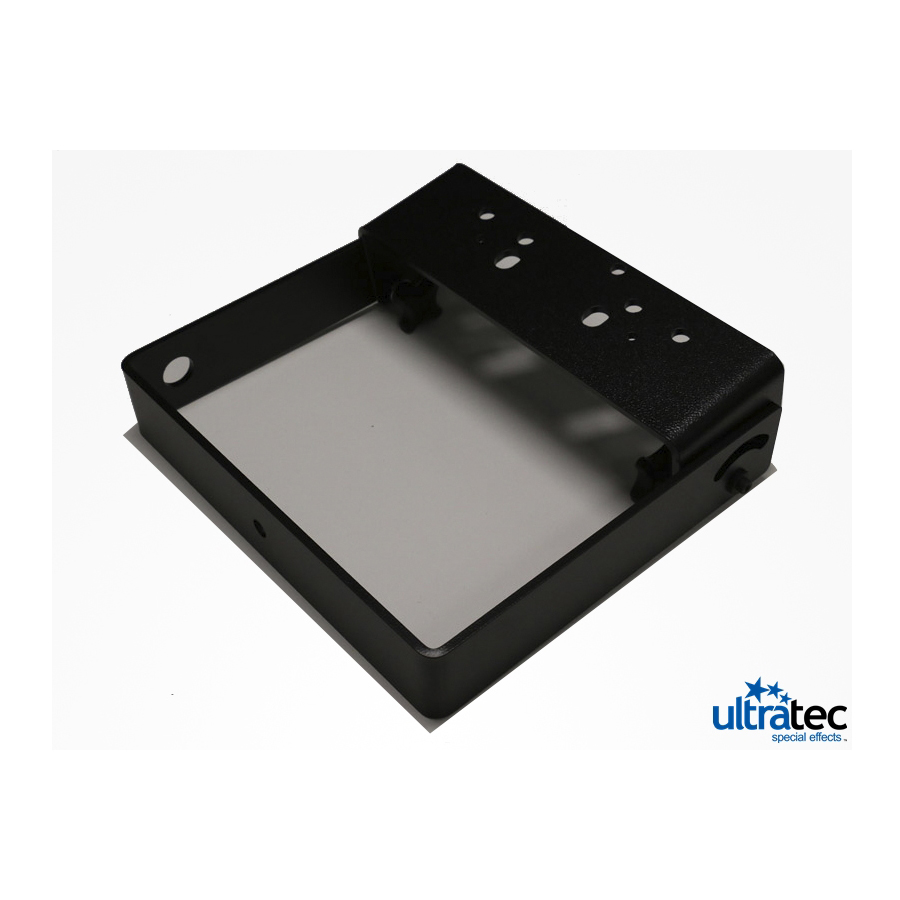

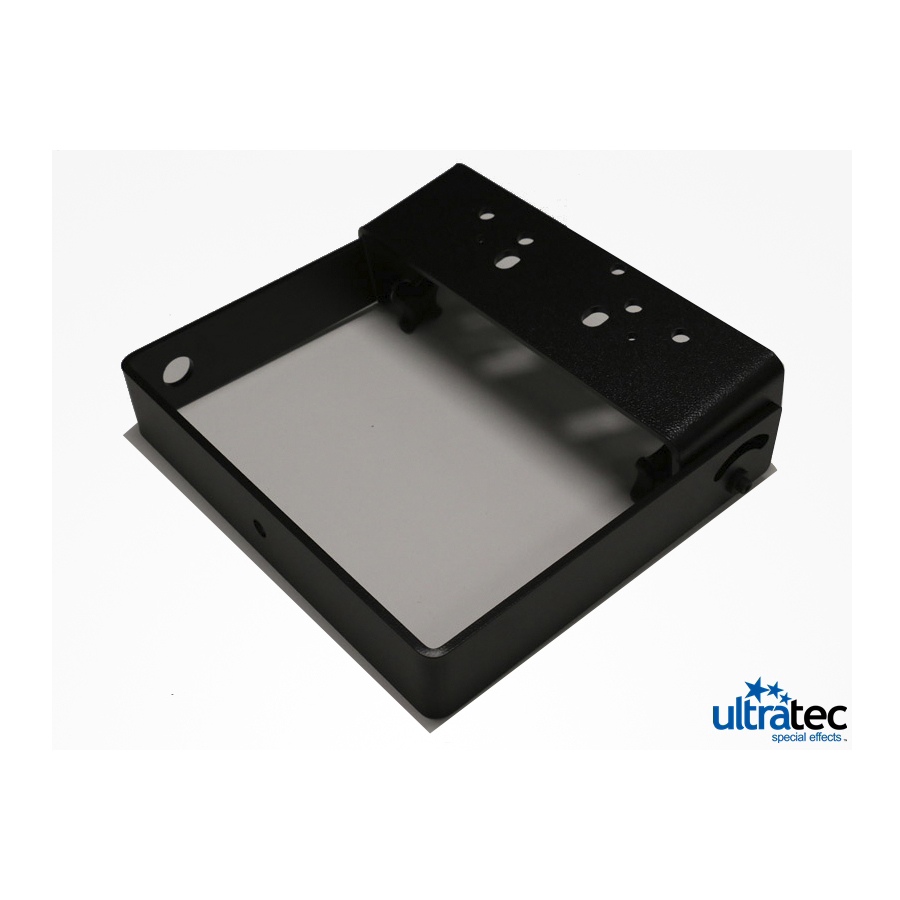

Universal Truss Bracket CLF-2635 Universal Truss Bracket €95.91

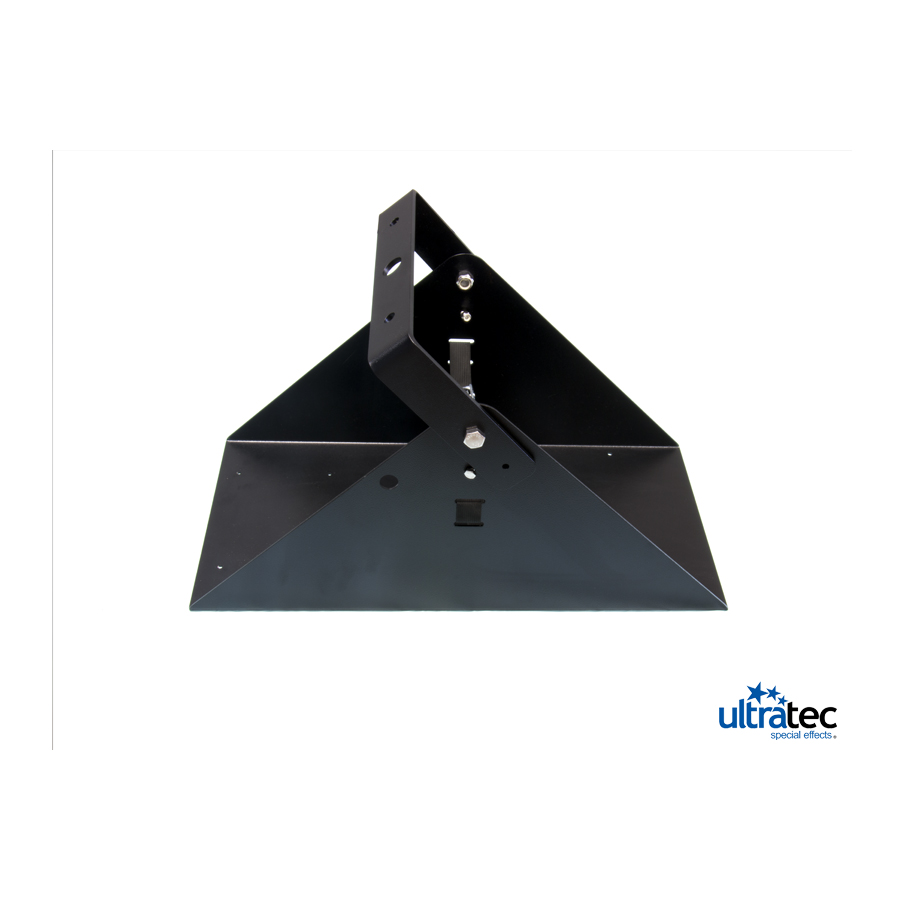

Snow/Versa DMX Truss Bracket Heavy Duty CLF-2788 Snow/Versa DMX Truss Bracket Heavy Duty €842.17

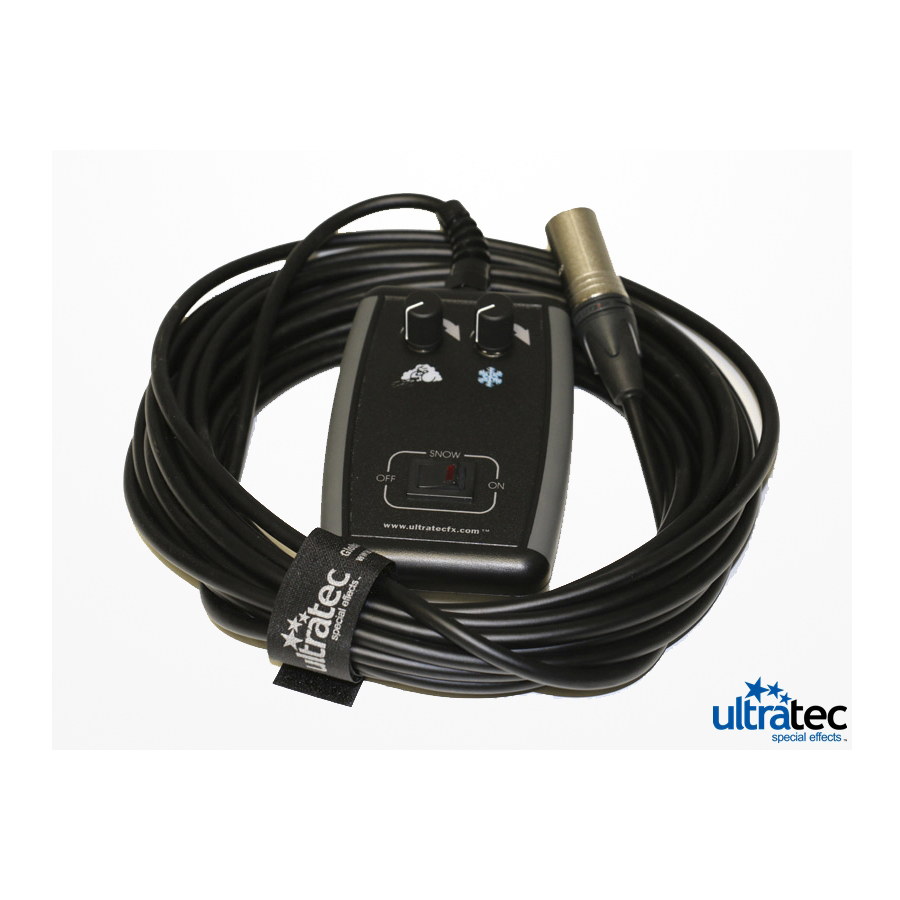

Silent Storm Remote 5-Pin CLS-7110 Silent Storm Remote 5-Pin €195.70

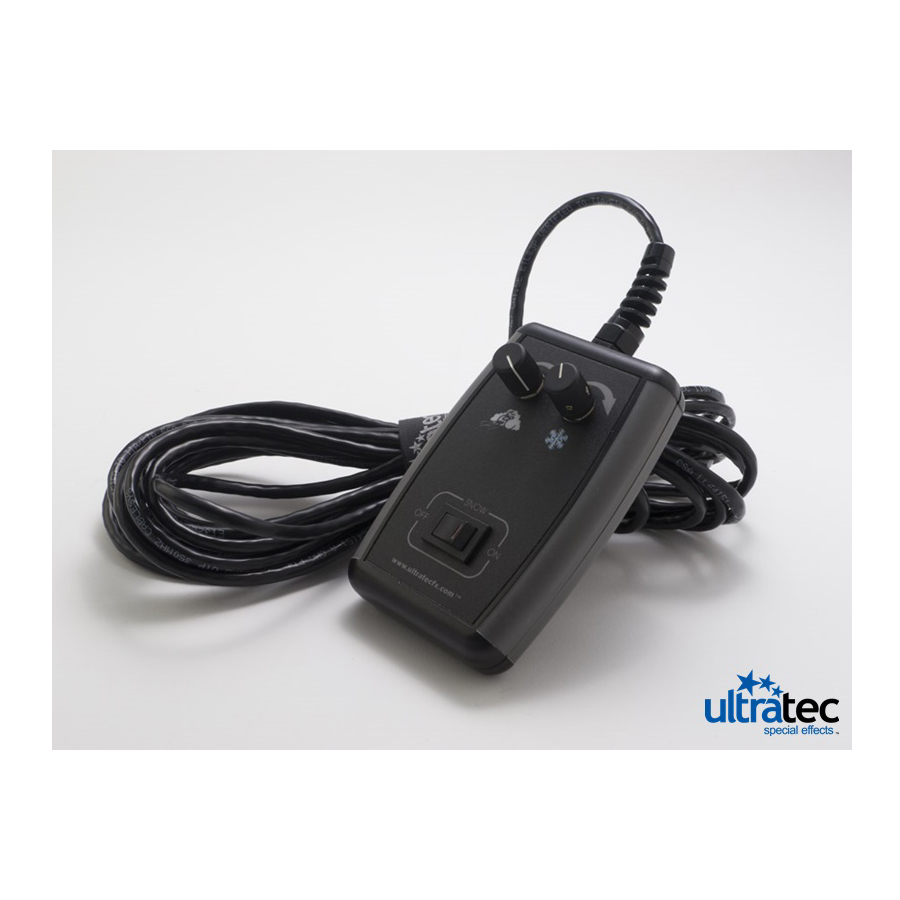

Silent Storm Remote RJ45 CXP-7109 Silent Storm Remote RJ45 €205.49

Features

  • Variable Output, Timer Remote Included
  • Quiet Operation
  • Variable Snow Output & Flake Size
  • 70% More Output than our previous True North Snow Machine
  • Remote or DMX for both Fan & Flow Settings
  • 2-Channel Integrated DMX Control
  • Built-In 4-Litre Fluid Jug Holder
  • Hanging Truss Adapter Option Available
  • Fluid Distribution System (FDS) Option Available

Output

Run Time: Continuous
Fluid Consumption: Continuous - 240 cc/ min.

Specifications

Length: 23 in / 58 cm
Width: 10 in / 25 cm
Height: 11 in / 28 cm
Net Weight: 22 lbs / 10 kgs
Power Cord: 6 ft - 1.8 m
Rating: 9 amps AC @ 110 volts @ 60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLS-7150 Silent Storm DMX Snow Machine 220V (Remote Included) 27 in - 69 cm 14 in - 36 cm 12 in - 31 cm 31 lbs - 14 kgs
CLS-7155 Silent Storm DMX Snow M/C 220V w/Indl Optn(Remote Included) 27 in - 69 cm 14 in - 36 cm 12 in - 31 cm 32 lbs - 15 kgs

Parts Identification Blowout Sheets

Silent Storm DMX Snow Machine - Exploded-R-B:

View

Service Photos

Circuit Board View:

View

Front View:

View

Internal Overview:

View

Pump Details:

View

Pump Details 2:

View

Rear View:

View

Side View 1:

View

Side View 2:

View

Silent Storm Blower:

View

Silent Storm Front:

View

Top View:

View

Wiring Details:

View

Parts

Product List
CLF-2788 Snow/Versa DMX Truss Bracket Heavy Duty €842.17
CLS-7110 Silent Storm Remote 5-Pin €195.70
CXP-1161 Silent Storm Chassis Base €0.00
CXP-1162 Silent Storm Lid Only €0.00
CXP-1216 1/4 ID Black PVC Industrial Hose €2.80
CXP-1221 1.905 cm Plastic Strain Relief €0.00
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1285 Snow Machine Blower 220V €0.00
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1340 Chip - Silent Storm Main V4.09 5-Pin €0.00
CXP-1345 Chip - Universal Remote V0.33 5-Pin/RJ €0.00
CXP-2060 1.588 cm S.S. Industrial Hose Clamp €0.00
CXP-2225 Dry Icer Foam Grip €0.00
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2475 Heater Triac €30.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-3602 Snow Machine Mini Pump Bracket S/S €0.00
CXP-3610 Snow Machine Net Nozzle €0.00
CXP-3611 Snow Machine 4mm Brass Stone Filter €0.00
CXP-3614 Snow Machine O-Ring €0.00
CXP-3616 Snow Machine 4mm Fluid Tube LF €2.80
CXP-3617 Snow Machine/Radiance Pump 220V €0.00
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4261 D Plug for 14/3 Cable €0.00
CXP-4263 Schuko Plug 240V €23.18
CXP-4286 1/4" Flat Washer €0.21
CXP-4290 Industrial Filter Check Valve €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
CXP-7103 Snow Machine Plastic Nozzle €0.00
CXP-7106 22..86 x 1.27 cm Handle PFI/Snow/Prism €0.00
CXP-7108 Radiance/Snow Power Switch €19.60
CXP-7110 Snow Machine Blower Strap €0.00
CXP-7111 Snow Machine Egg Crate Foam €0.00
CXP-7125 Silent Storm PCB 220V 5-Pin €0.00
CXP-7130 Silent Storm PCB 220V RJ45 €0.00
