G3000 Mega Fog Burst

Create a Large Fog Burst with a G3000, the NEW Mega Fog Burst attachment is controlled by the Standard On-Board DMX controls and the Standard AC outlet on the rear of the machine. This complete package allows for amazing control while offering similar effects to Cryogenics from a fraction of the operational costs.

***G3000 Fog Machine sold separately

The G3000 Mega Fog Burst has our standard One-Year Warranty on all parts and service.

Models

Product List
CLF-4475 G3000 Mega Fog Burst €821.94

Accessories Gallery

Accessories

Product List

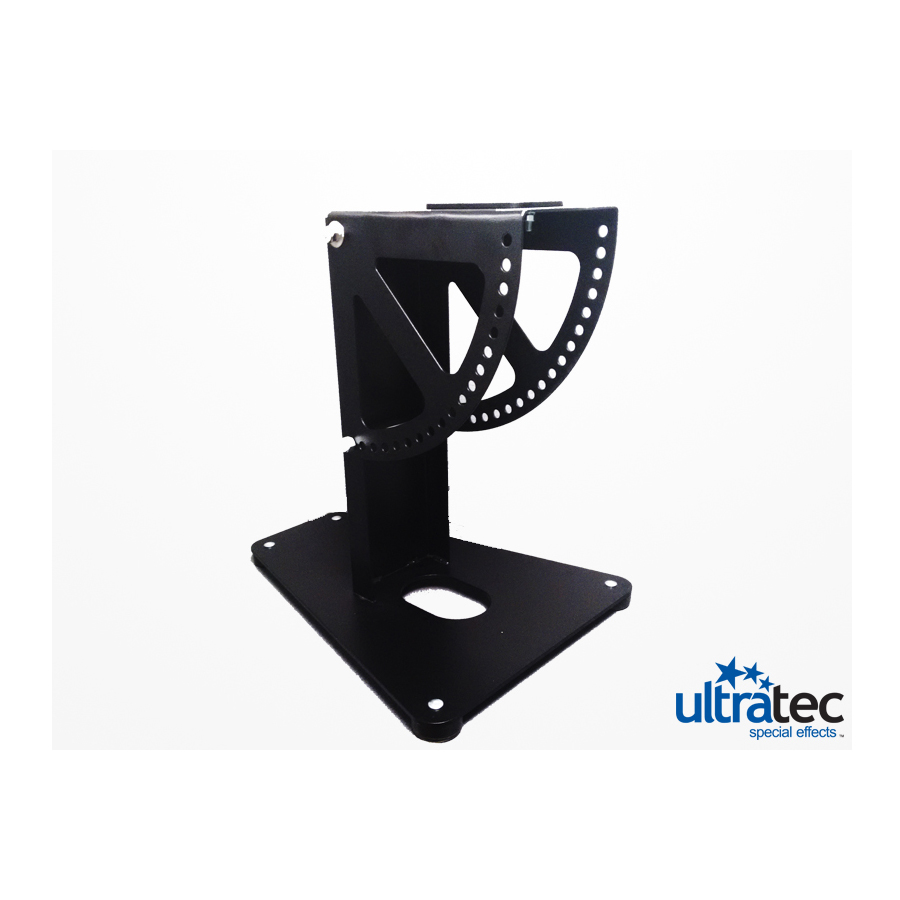

G3000 Mega Fog Burst Stand CLF-4480 G3000 Mega Fog Burst Stand €275.50

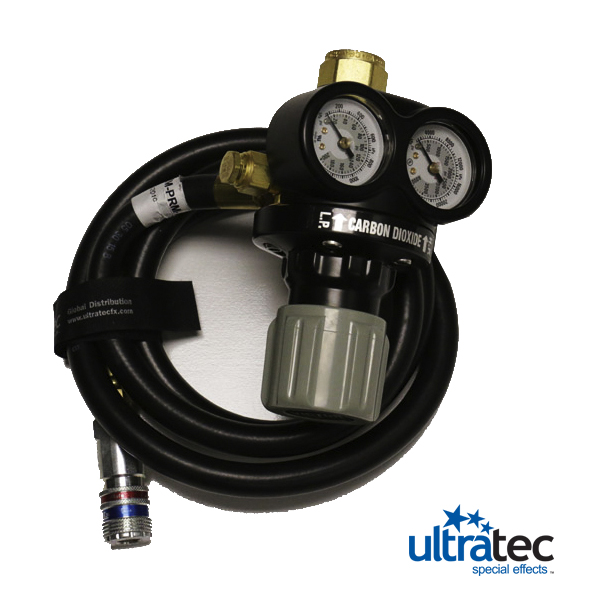

CO2 Regulator w/1.524m Hose CXP-1968 CO2 Regulator w/1.524m Hose €651.00

Specifications

Length: 10 in / 25 cm
Width: 10 in / 25 cm
Height: 10 in / 25 cm
Net Weight: 12 lbs / 5 kgs
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Notes

Ultratec Special Effects Mega Fog Air Requirements in SCFM:

Pressure-----Mega Fog Burst
20 PSI---------16
40 PSI---------23
60 PSI---------30
80 PSI---------37
90 PSI---------40
100 PSI-------44

The Mega Fog Burst gives 17 times output or about 750 CFM @ 100 PSI

Shipping Specifications per Model

Model Length Width Height Weight
CLF-4475 G3000 Mega Fog Burst 15 in - 38cm 11 in - 28 cm 13 in - 33 cm 13 lbs - 6 kgs

Parts Identification Blowout Sheets

G3000 Mega Fog Burst Exploded Drawing R-A:

View

G3000 Complete Mega Fog Burst - Exploded:

View

G3000 Ajustable Stand - Exploded:

View

Parts

Product List
CXP-4255 0.635 cm Lock Washer €0.19
CXP-4253 10-24 x 1.27 cm S/S Machine Screws €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-1710 G3000 Mega Fog Burst Mounting Bracket €47.60
CXP-1238 0.635 Air Nipple to 0.635 cm Male NPT Air Option €0.00

G3000 Mega Fog Burst Adjustable Stand

Parts

Product List
CXP-1940 Prism Rubber Feet €12.60
CXP-4255 0.635 cm Lock Washer €0.19
