True North Snow Machine

This machine is capable of producing a light, fluffy snowfall, to a raging snow storm. By simply adjusting the variable level control - 100% control is achieved. This is possible due to the carefully formulated, dry environmentally safe True North Snow Fluid. The secret is in the fluid and we are extremely proud of this first in snow making production.

The True North Snow Machine comes with our standard One-Year Warranty on all parts and service.

Models

Product List
CLS-7250 True North Snow Machine 220V €555.75

Accessories Gallery

Accessories

Product List

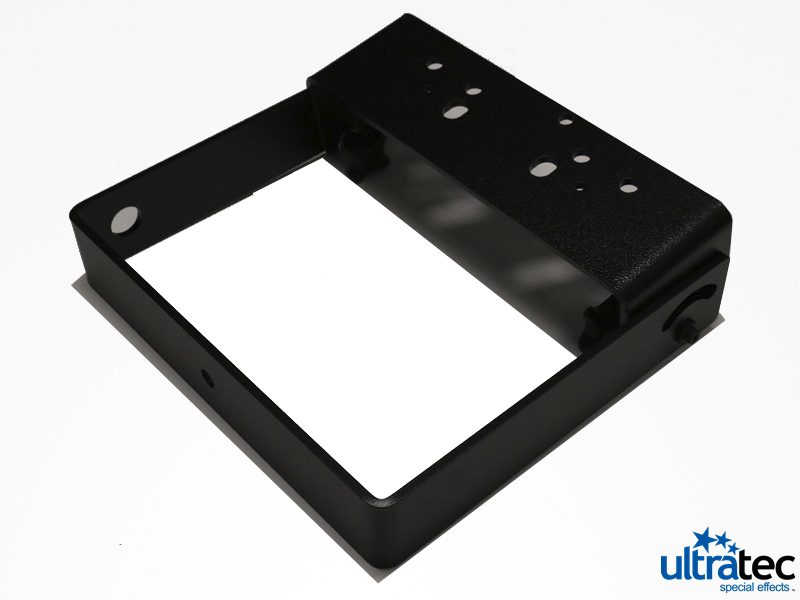

Universal Truss Bracket CLF-2635 Universal Truss Bracket €95.91

Features

  • Variable Flow and Flake Size Control
  • Simple Control
  • High Output
  • Built-In 1-Gallon Fluid Jug Holder

Output

Run Time: Continuous
Fluid Consumption: Continuous - 240 cc/ min.

Specifications

Length: 20 in / 51 cm
Width: 9 in / 23 cm
Height: 9 in / 23 cm
Net Weight: 21 lbs / 10 kgs
Power Cord: 6 ft - 1.8 m
Rating: 9 amps AC @ 110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Specification Footnote: The True North Snow Machine does NOT support any type of Remote Capability.
For remote applications use a non-dim or dimmer for variable output.

Fluid Consumption Calculator

Total Duration
Output Level %
Total Cues

Shipping Specifications per Model

Model Length Width Height Weight
CLS-7250 True North Snow Machine 220V 22 in - 56 cm 11 in - 28 cm 11 in - 28 cm 24 lbs - 11 kgs

Parts Identification Blowout Sheets

True North Snow Machine-Exploded-R-A:

View

Service Photos

Fluid Hose View:

View

Front View:

View

Internal Side View 1:

View

Internal Side View 2:

View

Internal View Close Up:

View

Pump Details View:

View

Rear View:

View

Side View 1 :

View

Side View 2:

View

Top View:

View

Wiring Details View:

View

Parts

Product List
CXP-1272 #8 x 1.27 cm Self Tapping Screws B/O €0.23
CXP-1285 Snow Machine Blower 220V €0.00
CXP-1288 0.635 cm Hole Grommet Thin €0.00
CXP-1290 Standard Terminal Block 3-Wire €0.00
CXP-1292 Standard Terminal Block 5-Wire €0.00
CXP-1294 0.635 x 1.905 cm Phillips Pan Head Screw B/O €0.00
CXP-1296 0.635 cm Nylon Locknut €0.00
CXP-1304 3/16" Flat Washer Black Oxide €1.40
CXP-2436 Machine Feet - Set Of 4 €0.00
CXP-2476 1/4" Silicone Tube LF €7.00
CXP-2608 Control Knob (Remote) €0.00
CXP-3044 MC3 Fan Speed Control 110V €27.19
CXP-3602 Snow Machine Mini Pump Bracket S/S €0.00
CXP-3610 Snow Machine Net Nozzle €0.00
CXP-3611 Snow Machine 4mm Brass Stone Filter €0.00
CXP-3614 Snow Machine O-Ring €0.00
CXP-3616 Snow Machine 4mm Fluid Tube LF €2.80
CXP-3617 Snow Machine/Radiance Pump 220V €0.00
CXP-4034 MC3 Fan Speed Control 220V €45.94
CXP-4261 D Plug for 14/3 Cable €0.00
CXP-4286 1/4" Flat Washer €0.21
CXP-4290 Industrial Filter Check Valve €0.00
CXP-4402 0.635 cm Brass Stone Filter Assembly €0.00
CXP-6040 14/3 1.829 m Power Cord w/3 Prongs €0.00
CXP-7103 Snow Machine Plastic Nozzle €0.00
CXP-7108 Radiance/Snow Power Switch €19.60
CXP-7110 Snow Machine Blower Strap €0.00
