LSG MKII System on a Cart

When you need to produce a dramatic and powerful fog effect, the Ultratec LSG MKII is "The Real Thing". When used with a Ultratec Fog Machine, the LSG MKII´s patented CO2 conditioning process produces a huge, continuous output of low-lying fog. The LSG MKII can achieve many impressive effects including fog curtains and waterfall effects.

The LSG comes with our standard One-Year Warranty on all parts and service.

*G3000 Fog Effects Generator is not included

Models

Product List
CLF-3986 LSG MKII Low Pressure w/Cart 220V €5,377.00
CLF-3991 LSG MKII High Pressure w/Cart 220V €5,377.00
CLF-3993 LSG MKII Combo High+Low w/Cart 220V €5,923.25
CLF-4013 LSG MKII High Power Low Pressure w/Cart 220V €6,159.38

Accessories Gallery

Accessories

Product List

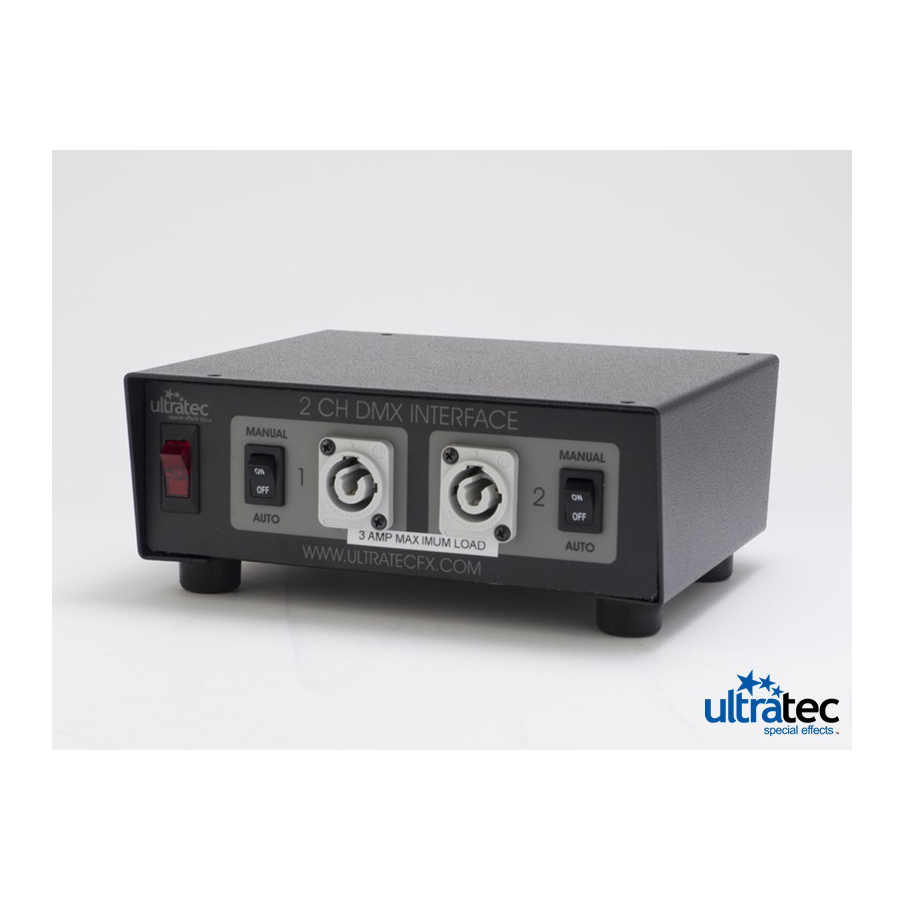

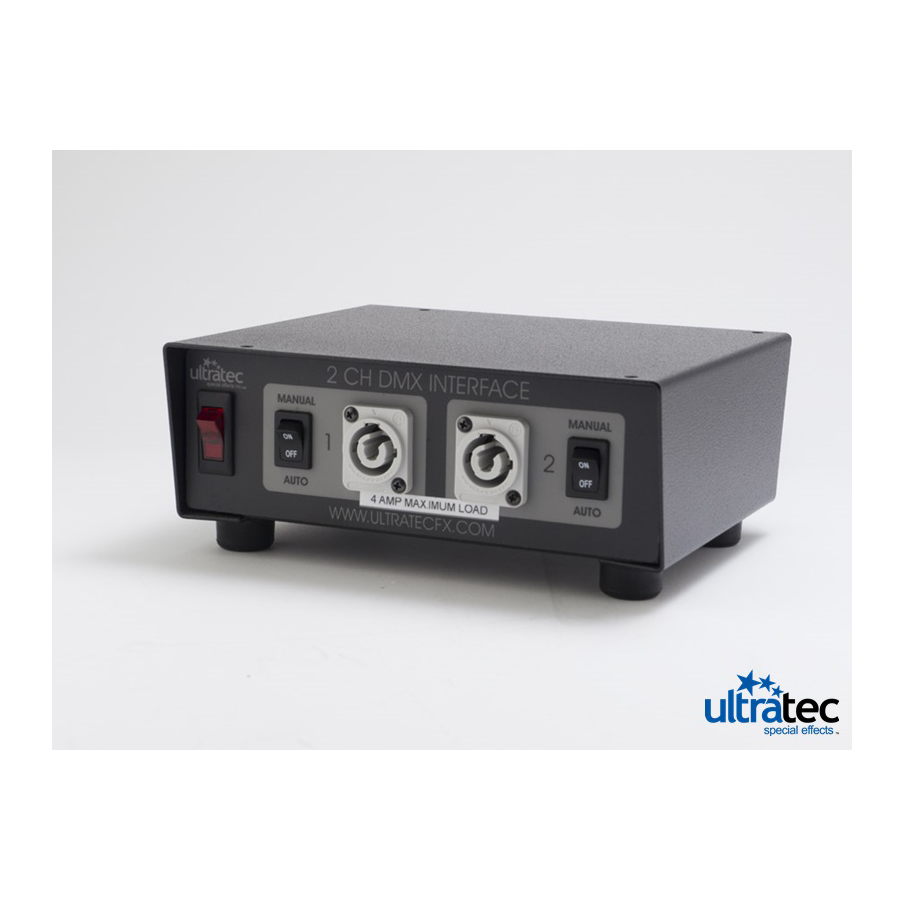

LSG DMX Interface 220V CLF-2943 LSG DMX Interface 220V €584.25

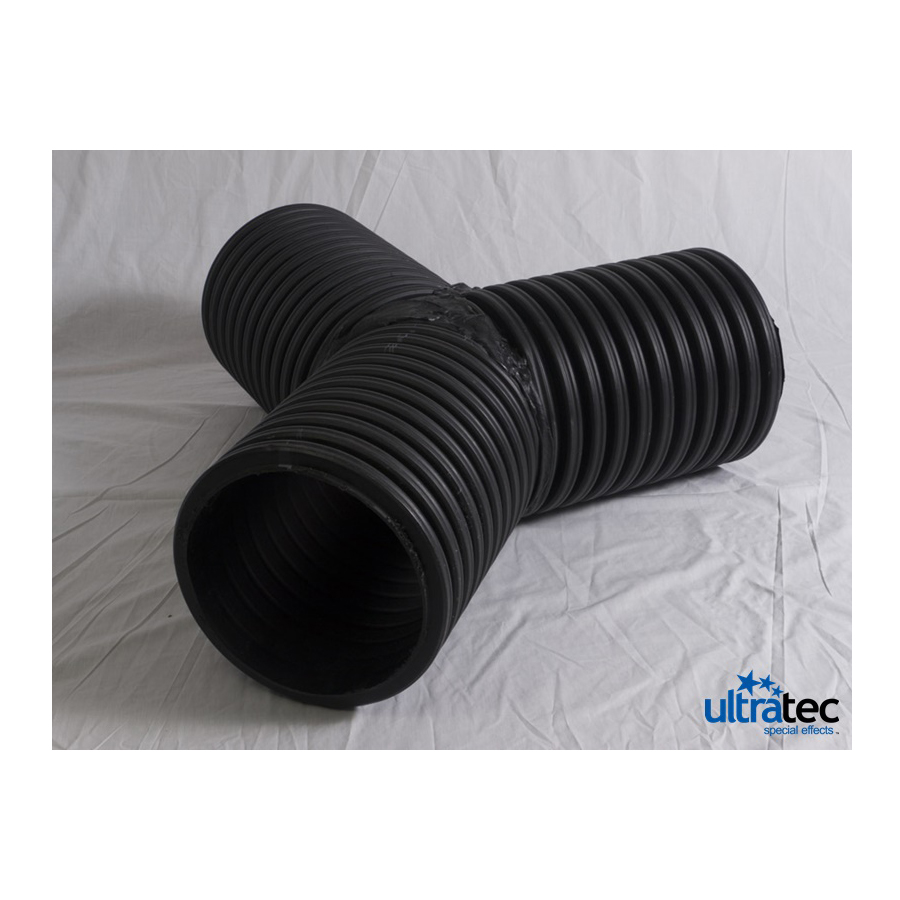

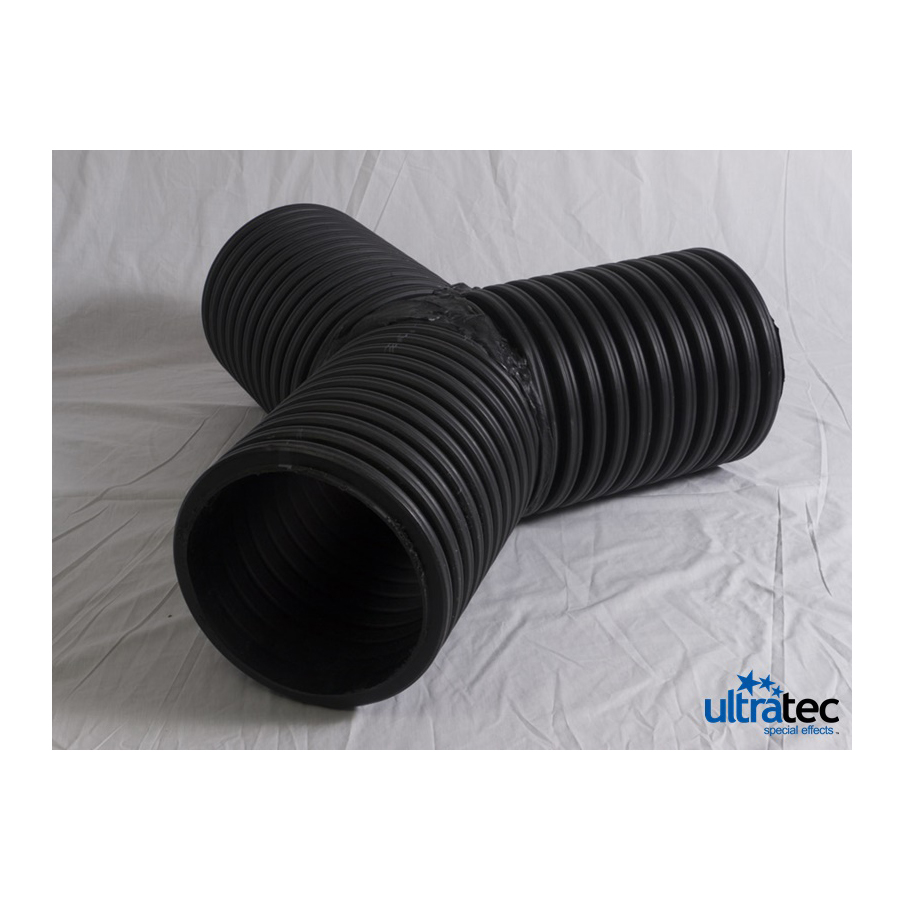

LSG Y-Splitter 25.4 cm x 2-25.4 cm CLF-2949 LSG Y-Splitter 25.4 cm x 2-25.4 cm €440.33

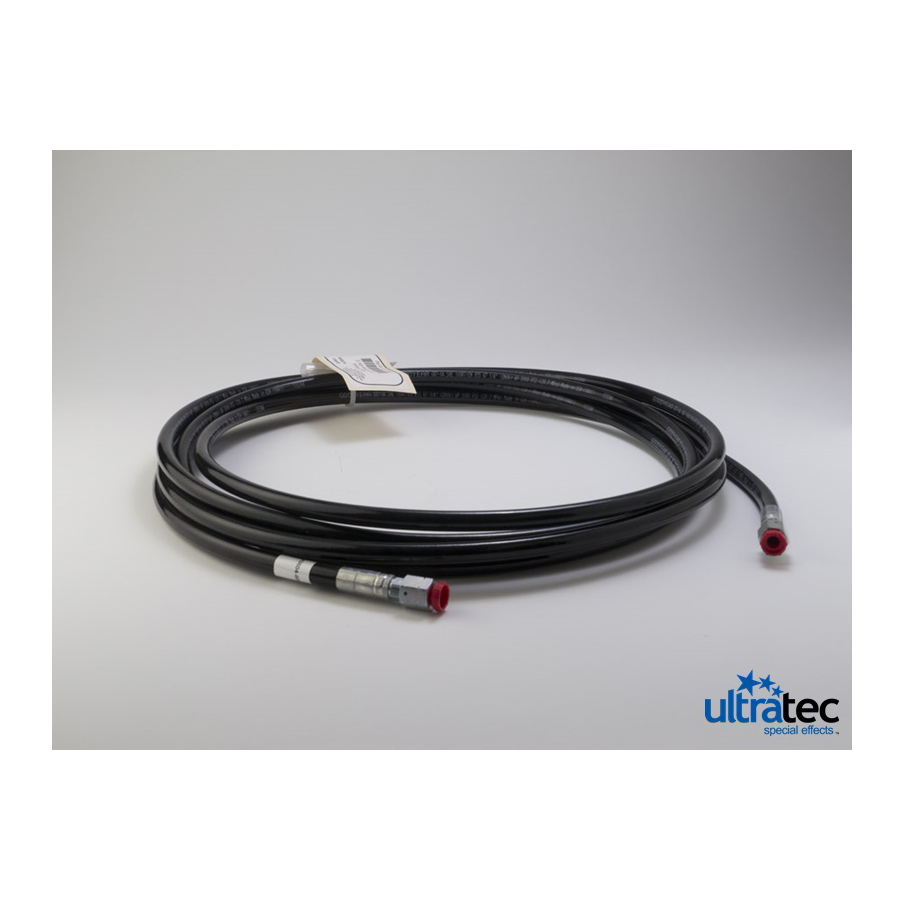

6.096 m High Pressure CO2 Extension Hose CLF-2952 6.096 m High Pressure CO2 Extension Hose €166.35

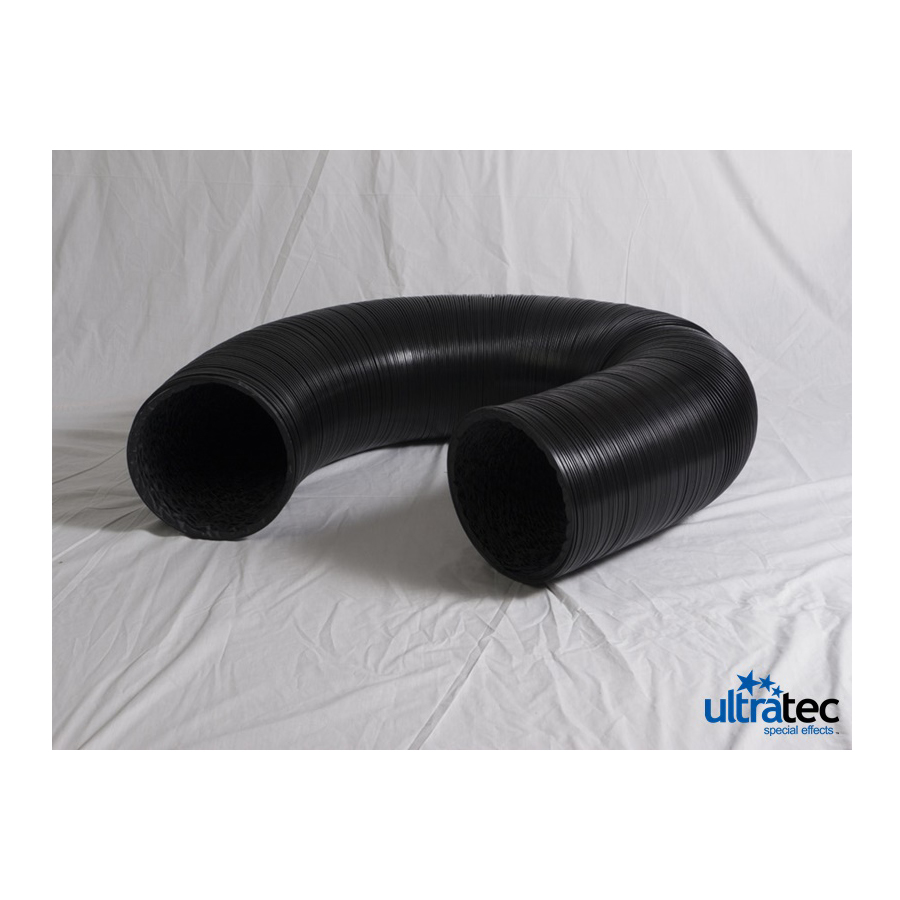

LSG Uninsulated 25.4 cm Hose 7.62 m CLF-2956 LSG Uninsulated 25.4 cm Hose 7.62 m €655.60

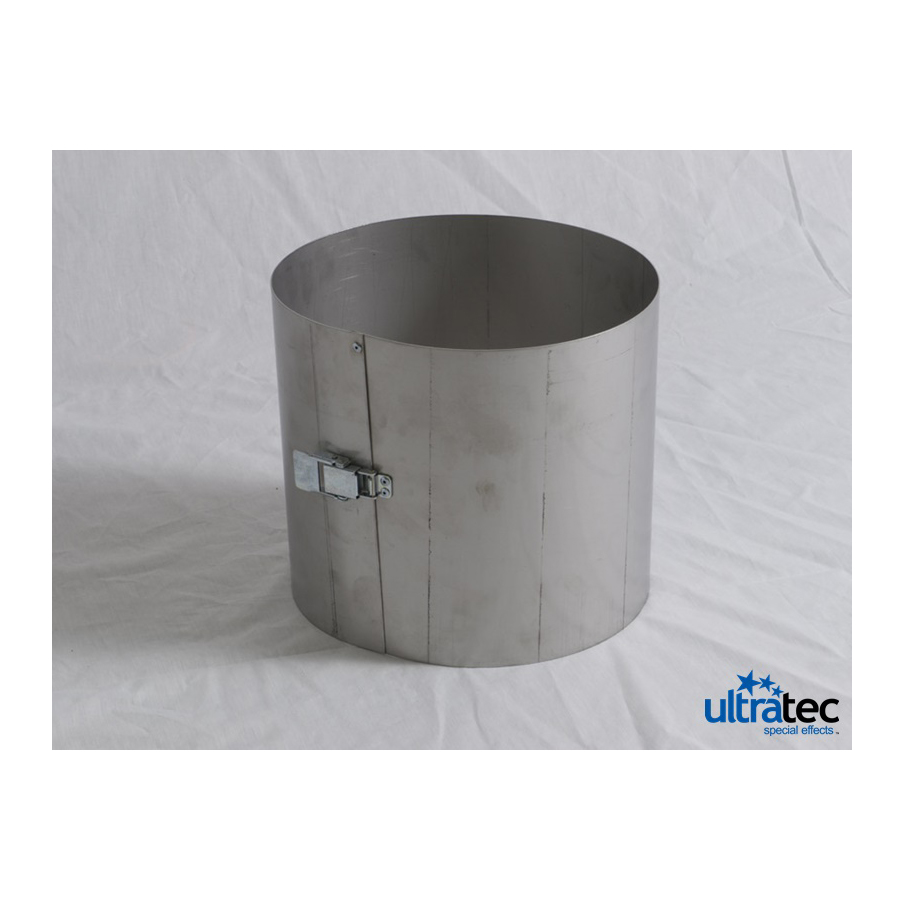

LSG Flex Hose Adapter S.S. CLF-2957 LSG Flex Hose Adapter S.S. €137.28

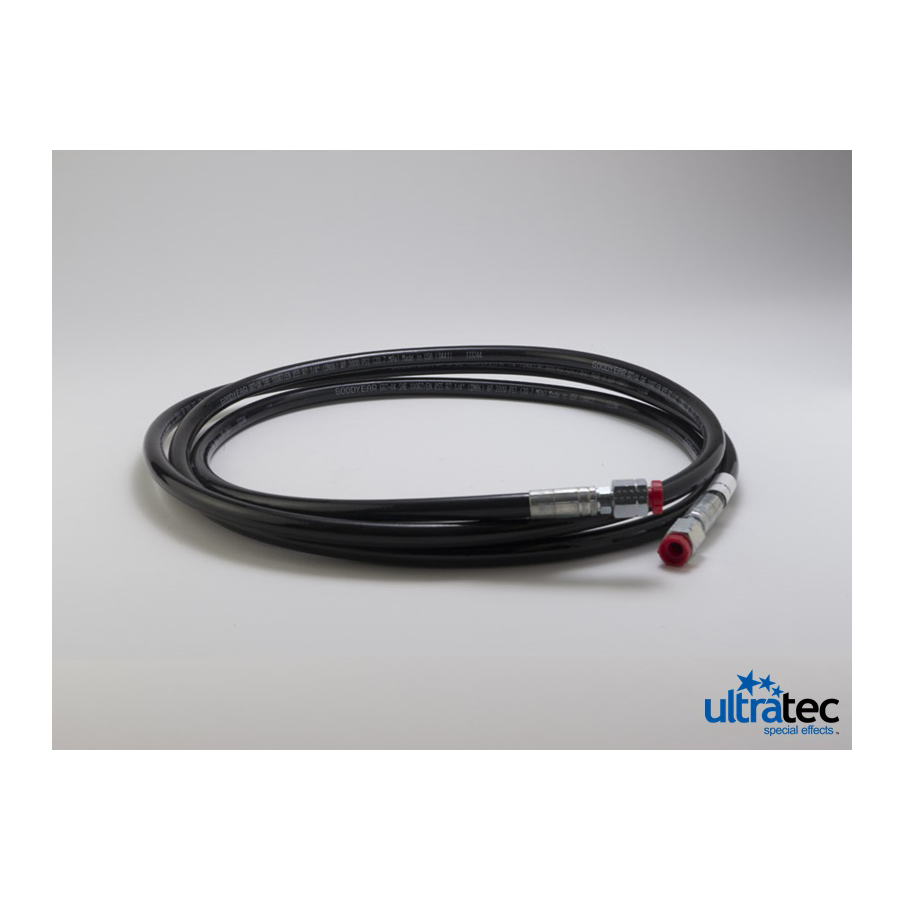

3.048 m High Pressure CO2 Extension Hose CLF-2967 3.048 m High Pressure CO2 Extension Hose €113.53

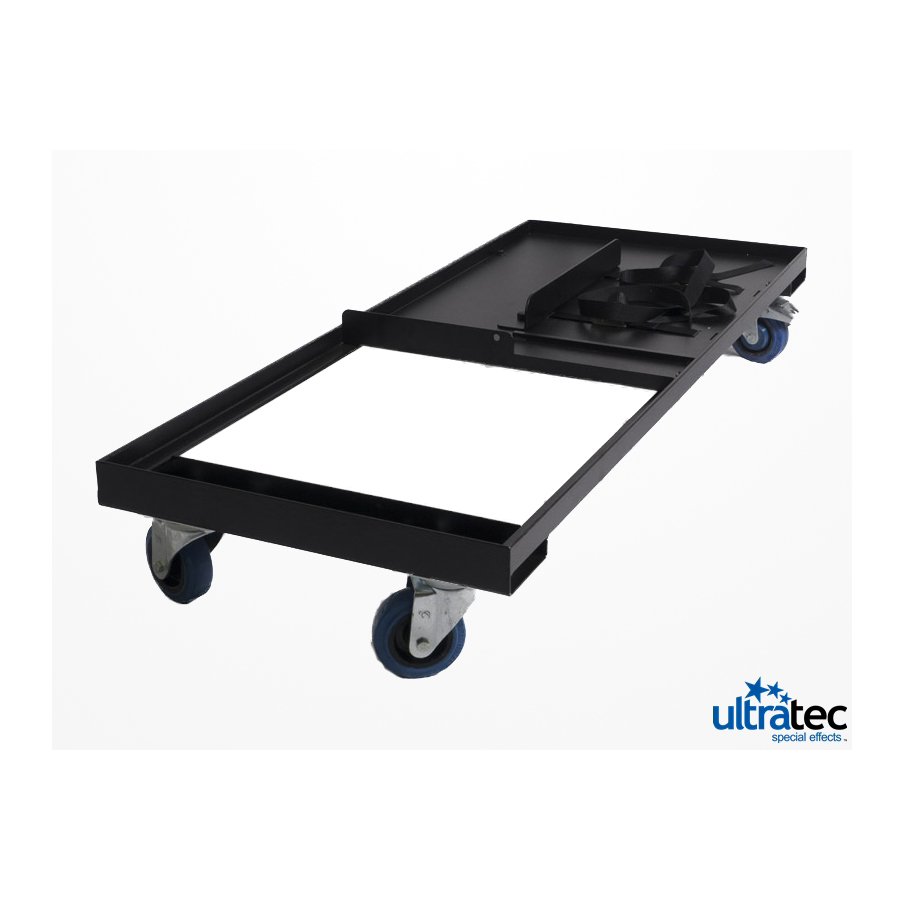

LSG MKII Cart CLF-3965 LSG MKII Cart €1,045.00

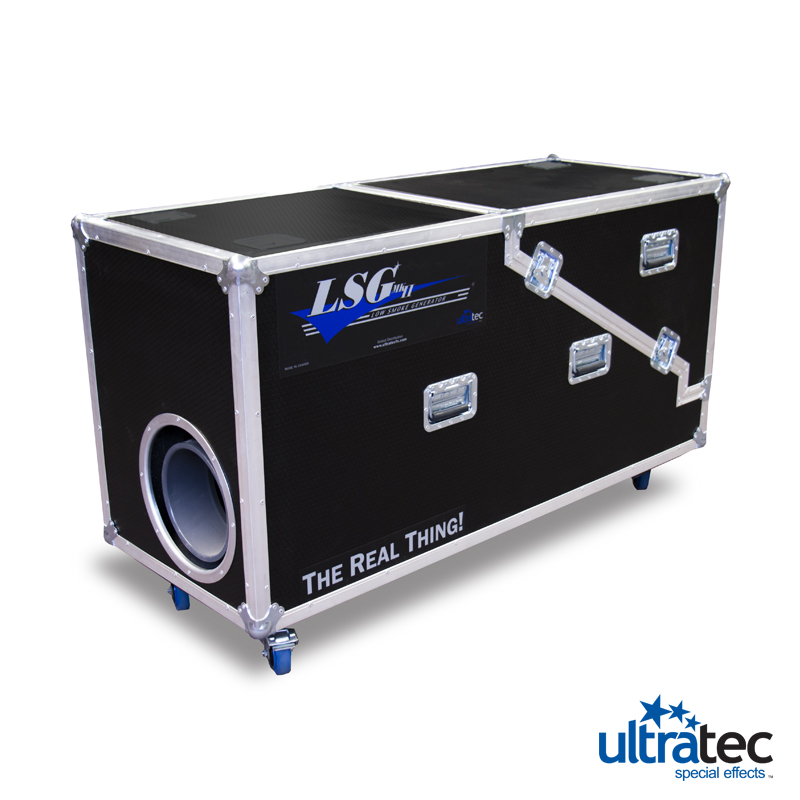

LSG MKII Road Case CLF-3970 LSG MKII Road Case €1,805.00
CO2 Valve w/Relief 110V CLF-4001 CO2 Valve w/Relief 110V €876.80

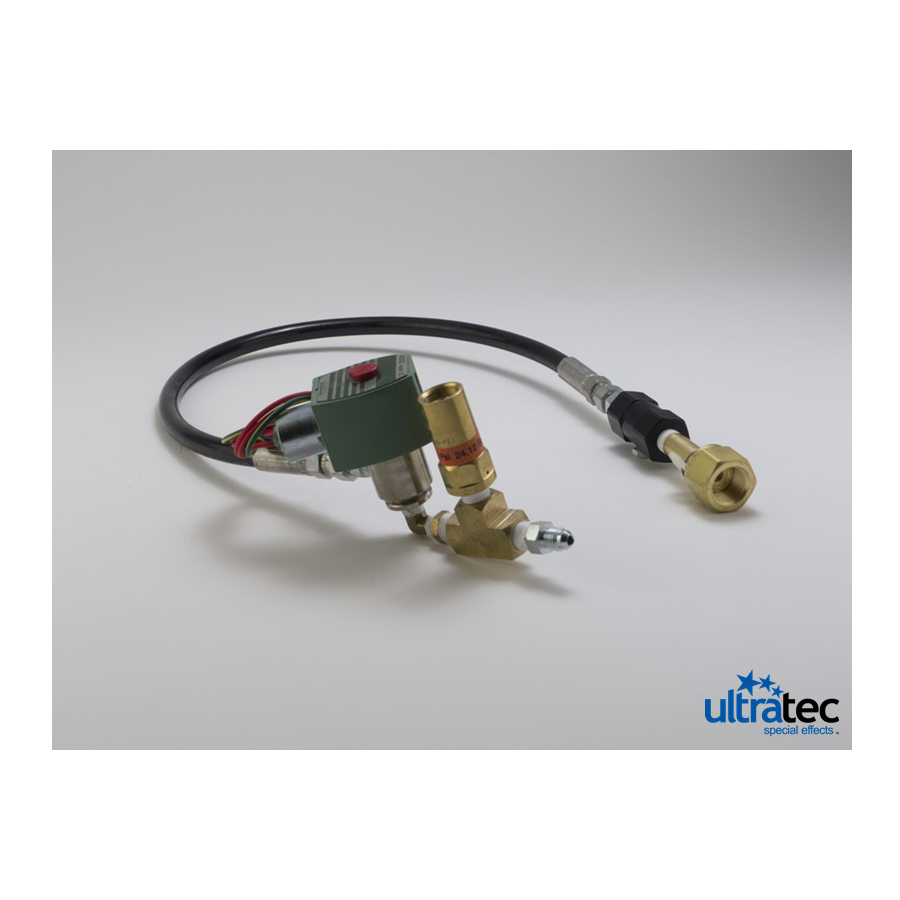

CO2 Valve w/Relief 220V CLF-4002 CO2 Valve w/Relief 220V €888.49

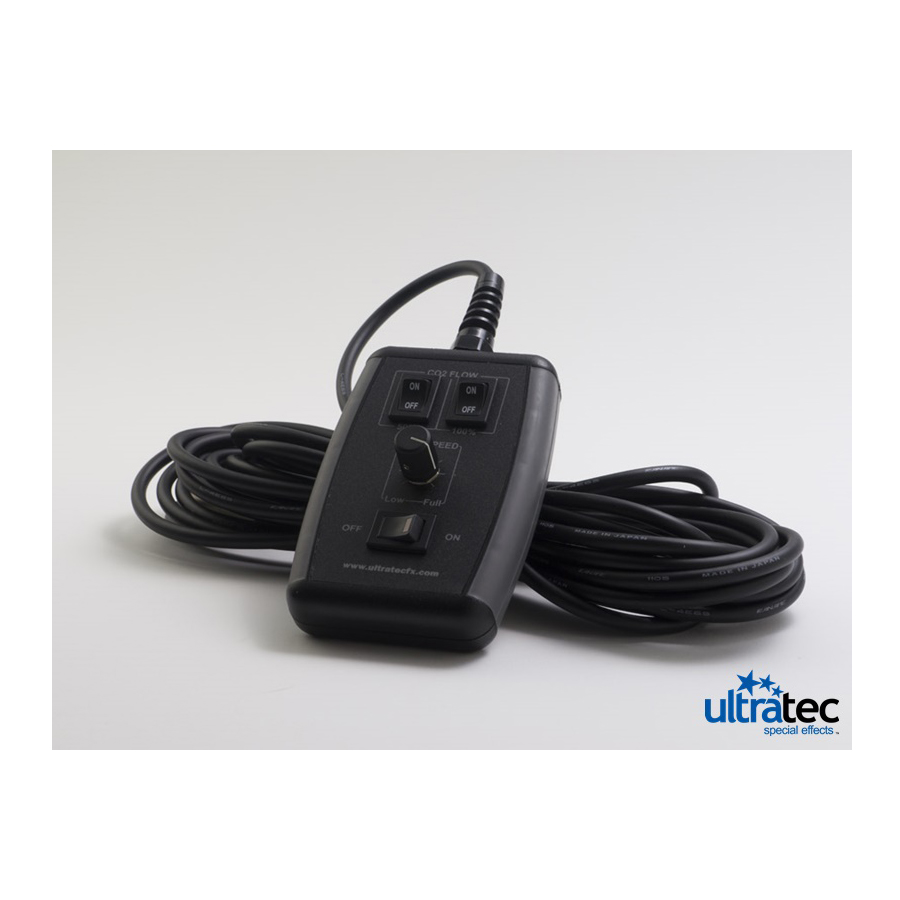

LSG High Power Remote CLF-4015 LSG High Power Remote €166.35

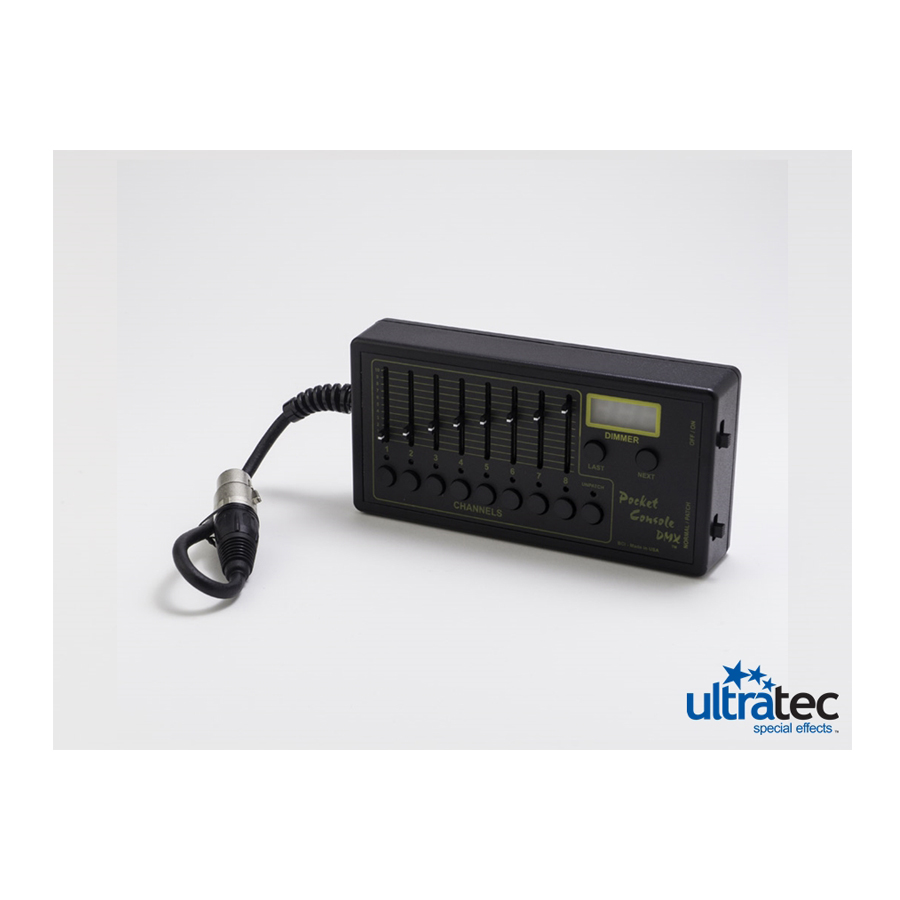

Pocket Console DMX CLF-4463 Pocket Console DMX €670.28

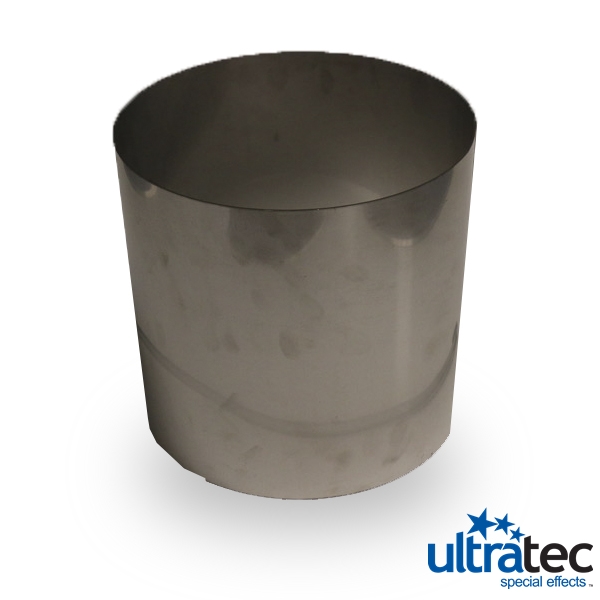

25.4 cm Flex to Rigid Adapter CLF-9033 25.4 cm Flex to Rigid Adapter €99.85

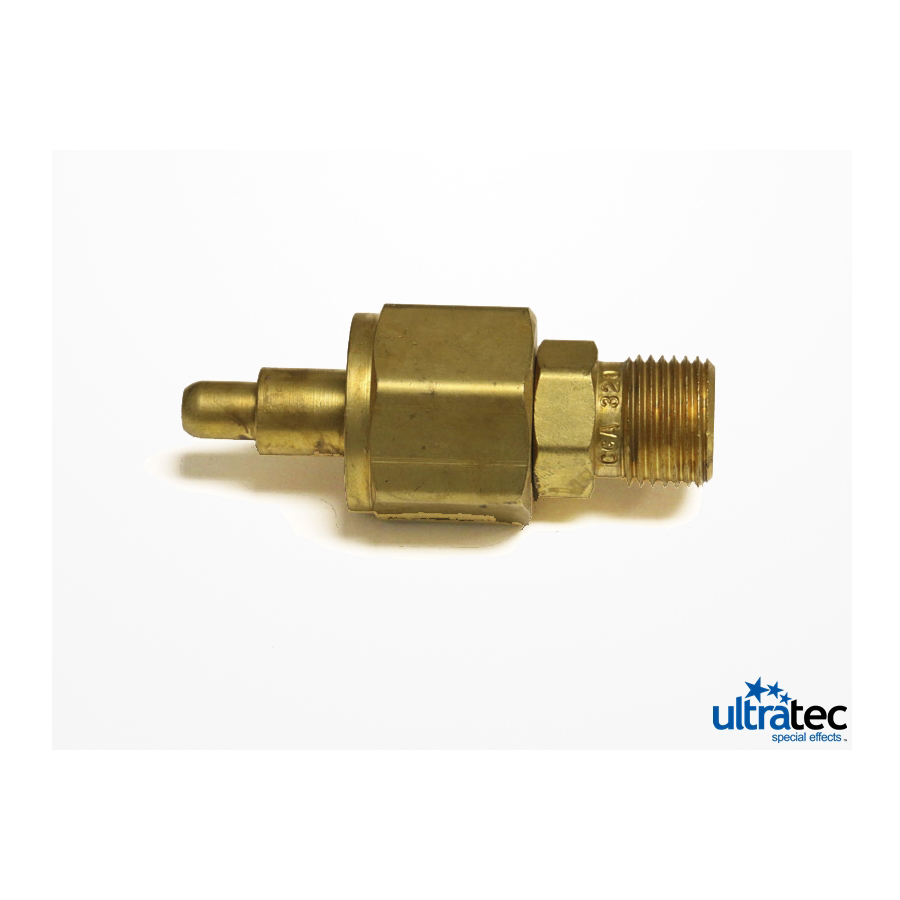

CO2 Adapter CGA 622 Female > CGA 320 Male CXP-2385 CO2 Adapter CGA 622 Female > CGA 320 Male €75.00

Features

  • Huge, Continuous Output
  • Remote, Show Control and DMX Control Available
  • Compact, Rugged Design
  • Dry, White, Water-Based Effect
  • Proven Performance
  • Patented CO2 Conditioning Process
  • Industry Standard 3/4" CGA CO2 Fitting
  • Available in 110 & 220 volt
  • Optional Cart or Road Case
  • Optional Hanging Brackets Available
  • Available in:
  • Low Pressure CO2 Dewar Delivery
  • High Pressure CO2 (20lbs to 50lbs)
  • Combo Low and High Pressure CO2
  • High Power Low Pressure CO2 (Independent solenoid and fan control)

Output

Run Time: Continuous
Reheat Time: Continuous

Specifications

Length: 25 in / 64 cm
Width: 19 in / 48 cm
Height: 23 in / 59 cm
Net Weight: 100 lbs / 45 kgs
Power Cord: 6 ft - 1.8 m
Rating: 2 amps AC @ 110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Specification Footnote: CO2 Usage

High Pressure - approx. 7.5 lbs./ Min.
Low Pressure - approx. 7.5 lbs./ Min.
High Power - approx. 15 lbs./Min.

Notes

The LSG can also be used with the Ultratec Round Floor Pocket or Fog Curtain for that added touch. More information on these products can be found under the Effects Options Tab.

CLF2956 - LSG Uninsulated 10" 25´ Hose
Material: Polyester
Coating: Neoprene
Temperature Range: -45F to 250F
Compression Ratio: 6:1

DMX Interface Box Accessory available for independent LSG ON/OFF Control only.

Ultratec Industrial Option Fog machine required for 20L/5Gal Fluid usage

Shipping Specifications per Model

Model Length Width Height Weight
CLF-3986 LSG MKII Low Pressure w/Cart 220V 48 in - 122 cm 21 in - 53 cm 30 in - 76 cm 150 lbs - 68 kgs
CLF-3991 LSG MKII High Pressure w/Cart 220V 48 in - 122 cm 21 in - 53 cm 30 in - 76 cm 150 lbs - 68 kgs
CLF-3993 LSG MKII Combo High+Low w/Cart 220V 48 in - 122 cm 21 in - 53 cm 30 in - 76 cm 150 lbs - 68 kgs
CLF-4013 LSG MKII High Power Low Pressure w/Cart 220V 48 in - 122 cm 21 in - 53 cm 30 in - 76 cm 150 lbs - 68 kgs

Service Photos

LSG Fans & Valve for Low Pressure and High Pressure Systems:

View

LSG Internal 1:

View

LSG Internal 2:

View

LSG Tubing for Low Pressure and High Pressure Systems:

View

Parts

Product List
CLF-2160 CGA CO2 Dewar Tank Fitting 0.953 cm €156.56
CLF-2942 LSG Multiflow Box 220V €0.00
CXP-1069 LSG Low Pressure Solenoid 220V €0.00
CXP-1070 LSG High Pressure Solenid 220V €0.00
CXP-1098 LSG Dewer 350psi Relief Valve €0.00
CXP-1269 .794 cm Flat Washer €0.00
CXP-1325 Chip - LSG HP Multiflow Box V2.07 5-Pin €0.00
CXP-1330 Chip - LSG HP Multiflow Box V2.06 5-Pin €0.00
CXP-1345 Chip - Universal Remote V0.33 5-Pin/RJ €0.00
CXP-2039 LSG Fan Finger Guard €0.00
CXP-2040 LSG MKII Fan 220V €0.00
CXP-2385 CO2 Adapter CGA 622 Female > CGA 320 Male €75.00
CXP-2391 CO2 Tee 4MJ x 4MJ x 4MJ €0.00
CXP-2399 LSG Solenoid Repair Kit €0.00
CXP-2408 CGA 320 Hexnut (CO2) €0.00
CXP-2410 CGA 320 Nipple (CO4) €0.00
CXP-2413 CO2 Connector 4MJ/4MP €0.00
CXP-2420 CGA Coupling 4MJ/4FP €0.00
CXP-2423 Hose Connector 4MJ/4MJ €0.00
CXP-4098 LSG Foam Gasket €0.00
CXP-4195 Blue Neutrik Male Chassis Power In €0.00
CXP-4198 Grey Neutrik Female Line Power Out €0.00
CXP-4211 Chip - 8-Pin DMX Serial €0.00
CXP-4502 LSG Hose Pressure Relief Assembly €0.00
CXP-4503 LSG Washer €0.00
CXP-6070 CO2 Hose for LSG w/ Bulk Head Fitting €203.44
